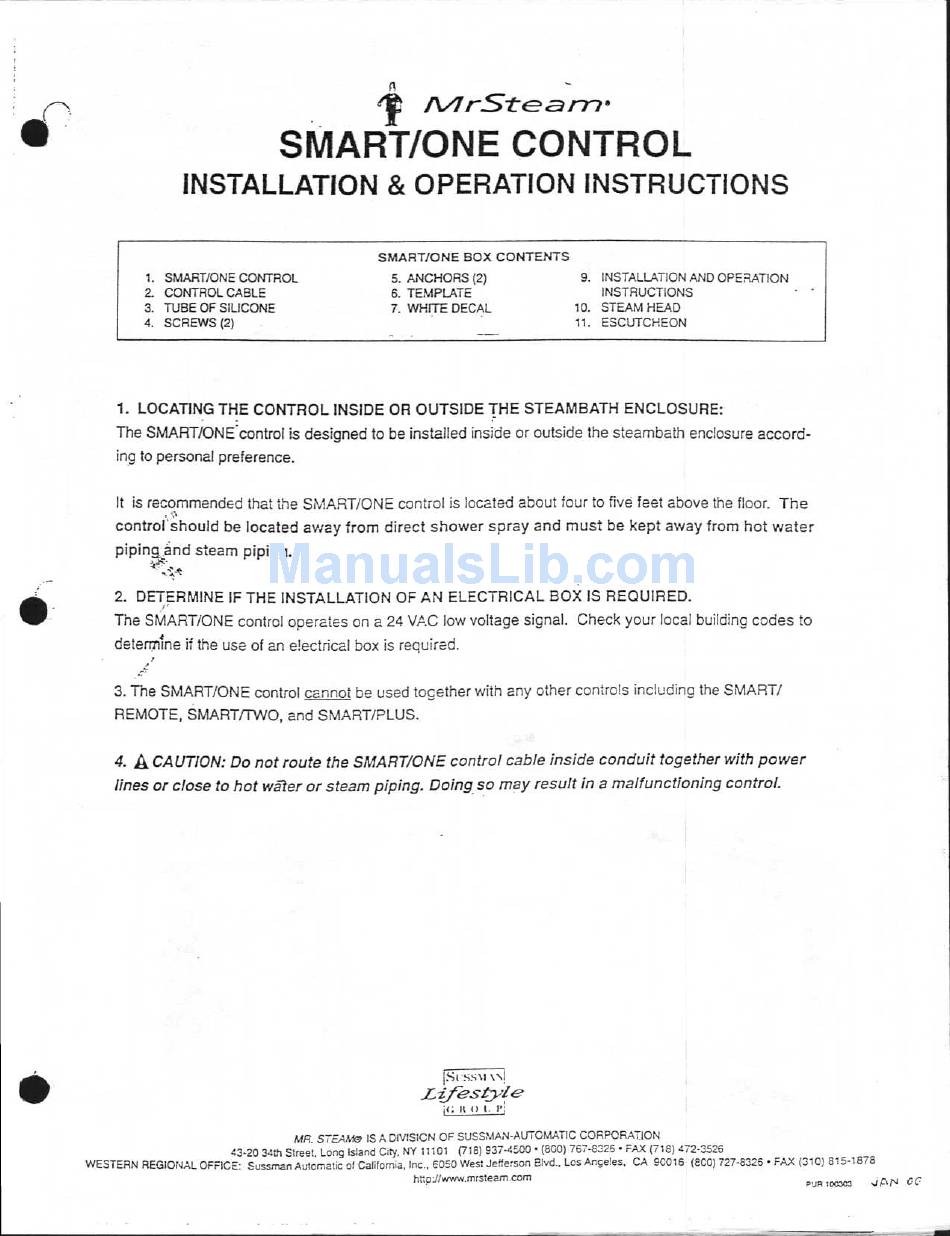

mr. steam SMART/ONE Installation & Operation Instructions

SMART/ONE BOX CONTENTS
1. SMART/ONE CONTROL
5. ANCHORS (2)
9. INSTALLATION AND OPERATION
2. CONTROL CABLE 6. TEMPLATE
INSTRUCTIONS
3. TUBE OF SILICONE 7. WHITE DECAL
10. STEAM HEAD
4. SCREWS (2) 11. ESCUTCHEON
/1/1r-
St.arri.
SMART/ONE CONTROL
INSTALLATION & OPERATION INSTRUCTIONS
1. LOCATING THE CONTROL INSIDE OR OUTSIDE THE STEAMBATH ENCLOSURE:
The SMART/ONEcontrol is designed to be installed inside or outside the steambath enclosure accord-
ing to personal preference.
It is recommended that the SMART/ONE control is located about four to five feet above the
floor.
The
control should be located away from direct shower spray and must be kept away from hot water
pipingand steam piping.
2. DETERMINE IF THE INSTALLATION OF AN ELECTRICAL BOX IS REQUIRED.
The SMART/ONE control operates on a 24 VAC low voltage signal. Check your local building codes to
determine if the use of an electrical box is required.
3. The SMART/ONE control
cannot
be used tocether with any other controls including the SMART/
REMOTE,
SMARTriVVO, and SMART/PLUS.
4. A
CAUTION: Do not route the SMART/ONE control cable inside conduit together with power
lines or close to hot wader or steam piping. Doing so may result in a malfunctioning control.
