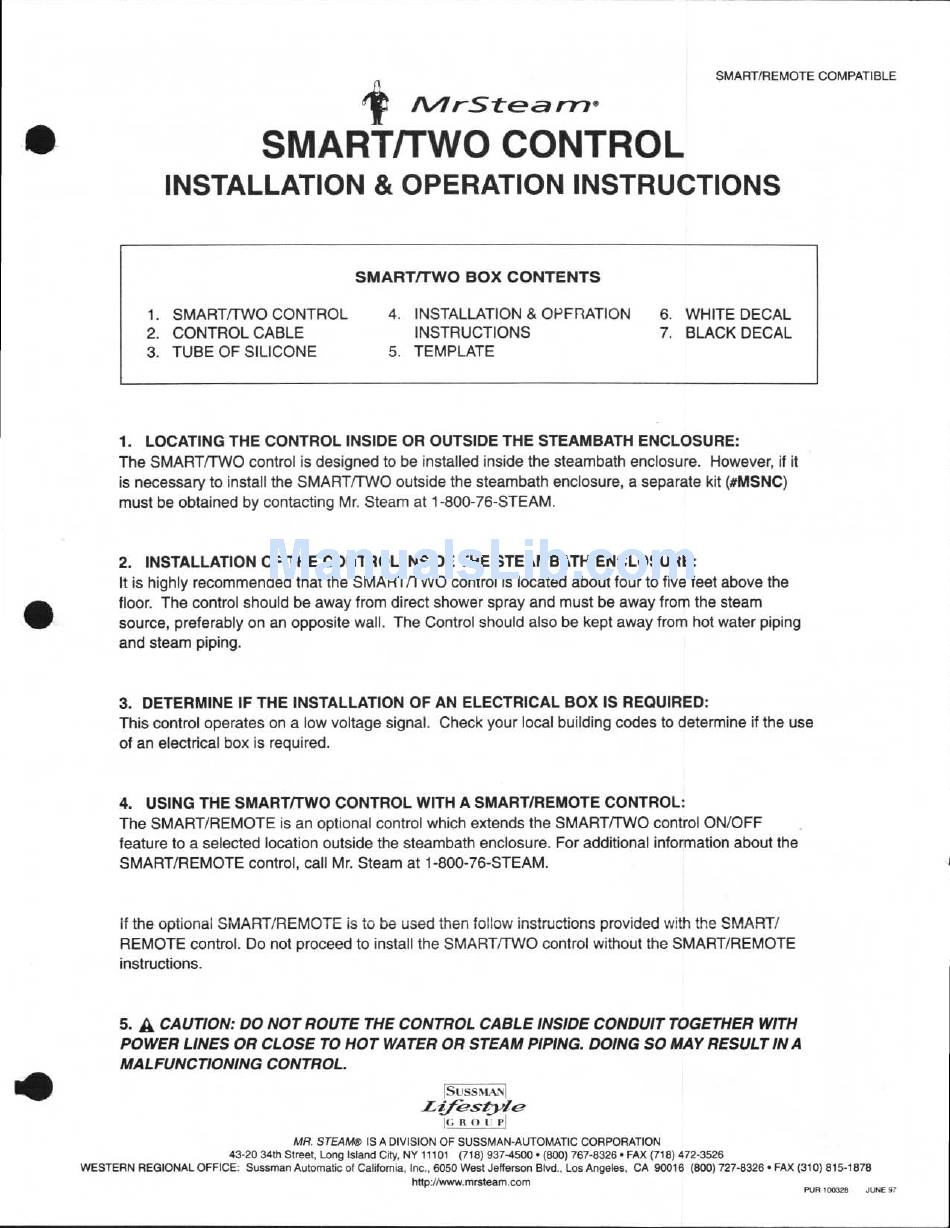

SMART/TWO CONTROL
INSTALLATION & OPERATION INSTRUCTIONS
SMART/TWO BOX CONTENTS
1. SMART/TWO CONTROL 4. INSTALLATION & OPERATION 6. WHITE DECAL
2. CONTROL CABLE INSTRUCTIONS 7. BLACK DECAL
3. TUBE OF SILICONE
5. TEMPLATE
1. LOCATING THE CONTROL INSIDE OR OUTSIDE THE STEAMBATH ENCLOSURE:
The SMART/TWO control is designed to be installed inside the steambath enclosure. However, if it
is necessary to install the SMART/TWO outside the steambath enclosure, a separate kit (#MSNC)
must be obtained by contacting Mr. Steam at 1-800-76-STEAM.
2. INSTALLATION OF THE CONTROL INSIDE THE STEAMBATH ENCLOSURE:
It is highly recommended that the SMART/TWO control is located about four to five feet above the
floor. The control should be away from direct shower spray and must be away from the steam
source, preferably on an opposite wall. The Control should also be kept away from hot water piping
and steam piping.
3. DETERMINE IF THE INSTALLATION OF AN ELECTRICAL BOX IS REQUIRED:
This control operates on a low voltage signal. Check your local building codes to determine if the use
of an electrical box is required.
4.
USING THE SMART/TWO CONTROL WITH A SMART/REMOTE CONTROL:
The SMART/REMOTE is an optional control which extends the SMART/TWO control ON/OFF
feature to a selected location outside the steambath enclosure. For additional information about the
SMART/REMOTE control, call Mr. Steam at 1-800-76-STEAM.
If the optional SMART/REMOTE is to be used then follow instructions provided with the SMART/
REMOTE control. Do not proceed to install the SMART/TWO control without the SMART/REMOTE
instructions.
5. A
CAUTION: DO NOT ROUTE THE CONTROL CABLE INSIDE CONDUIT TOGETHER WITH
POWER LINES OR CLOSE TO HOT WATER OR STEAM PIPING. DOING SO MAY RESULT IN A
MALFUNCTIONING CONTROL.
