Installation Guide
IMPORTANT SAFETY INFORMATION WARNING:
•
Always turn off power at the main power source by unscrewing
fuse or switching circuit breaker to the off position before installing,
removing, cleaning or servicing thermostat.
•
Read all of the information in this manual before installing or
programming this thermostat.
•
This is a 24V AC low-voltage thermostat. Do not install on voltages
higher than 30V AC.
•
All wiring must conform to local and national building and electrical
codes and ordinances.
•
Do not short (jumper) across terminals on the gas valve or at the
system control to test installation. This will damage the thermostat
and void the warranty.
10:51 AM
Page 1

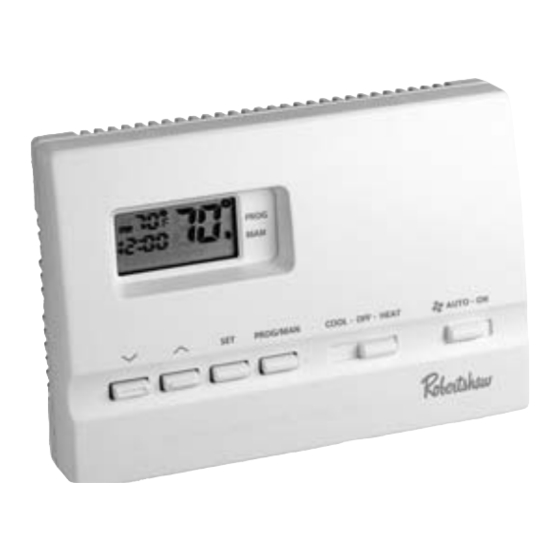

DIGITAL
7610
PROGRAMMABLE
THERMOSTATS
G
E
GAS
ELECTRIC
7 Day Programmable
1 Heat / 1 Cool
User's Manual
Quick Start
Installation and
Programming
1
(Black plate)
2
Advertisement
Table of Contents
Related Manuals for Robertshaw 7610
Summary of Contents for Robertshaw 7610
- Page 1 110-1060.qxd 3/27/03 10:51 AM Page 1 (Black plate) All manuals and user guides at all-guides.com DIGITAL 7610 PROGRAMMABLE THERMOSTATS ELECTRIC 7 Day Programmable 1 Heat / 1 Cool User’s Manual Quick Start Installation and Programming 110-1060 As an Energy Star partner, Climate Controls Americas has determined that this thermostat product meets the Energy Star guide lines for energy efficiency.
- Page 2 110-1060.qxd 3/27/03 10:51 AM Page 2 (Black plate) All manuals and user guides at all-guides.com Features • Four pre-programmed Energy Star setpoints for each day of the week. • Two AA ENERGIZER brand batteries retain program memory, even during power outages. •...
- Page 3 3/27/03 10:51 AM Page 3 (Black plate) All manuals and user guides at all-guides.com Figure 1 Installing Item 7610 Thermostat NOTE: F , 4-5 OR NEW INSTALLATIONS MOUNT THERMOSTAT ON INSIDE WALL FEET ABOVE THE FLOOR O NOT INSTALL BEHIND A DOOR...
- Page 4 110-1060.qxd 3/27/03 10:51 AM Page 4 (Black plate) All manuals and user guides at all-guides.com Figure 3 MOUNTING HOLES 7. Drill the marked holes using a 3/16” drill bit. 8. Tap plastic anchors into the holes. 9. Align base with plastic anchors and feed wires through opening. See Figure 4.
-
Page 5: Programming Guide
110-1060.qxd 3/27/03 10:51 AM Page 5 (Black plate) All manuals and user guides at all-guides.com 14. Install two AA ENERGIZER brand batteries or equivalent into battery compartment. Be sure to place positive (+) ends of batteries toward (+) battery terminals in the battery compartment. The display will show as follows: 15. -
Page 6: Changing Fahrenheit (F) To Celsius (C)
110-1060.qxd 3/27/03 10:51 AM Page 6 (Black plate) All manuals and user guides at all-guides.com 3. Press Press SET P to change temperature differential.* 1°. T EMPERATURE IFFERENTIAL IS ACTORY PRESET AT HIS MEANS THAT WHENEVER THE ROOM TEMPERATURE CHANGES BY ONE FULL DEGREE FROM THE TEMPERATURE SETTING THE SYSTEM WILL TURN ON F THE SYSTEM TURNS... - Page 7 110-1060.qxd 3/27/03 10:51 AM Page 7 (Black plate) All manuals and user guides at all-guides.com Setting Daily Programming Summer (Cool) Settings: 1. Place COOL-OFF-HEAT in COOL position. COOL-OFF-HEAT PROG SET PROG/MAN COOL-OFF-HEAT AUTO - ON SET PR 2. Press SET button. The display will show a number from 1 to 7.
-
Page 8: Temporary Program Override
110-1060.qxd 3/27/03 10:51 AM Page 8 (Black plate) All manuals and user guides at all-guides.com 3. Press PROG/MAN button ET PROG/MAN until indicator is in PROG position. PROG SET PROG/MAN COOL-OFF-HEAT AUTO - ON PROG NOTE: O NCE THE THERMOSTAT TURNS THE SYSTEM OFF WHILE IN COOL MODE COOL AND HEAT FOR SINGLE STAGE HEAT PUMP SYSTEM A BUILT... - Page 9 110-1060.qxd 3/27/03 10:51 AM Page 9 (Black plate) All manuals and user guides at all-guides.com To Test Thermostat WARNING: DO NOT SHORT (JUMPER) ACROSS TERMINALS OF GAS VALVE OR SYS- TEM CONTROL TO TEST OPERATION. THIS WILL DAMAGE THE THERMOSTAT AND VOID YOUR WARRANTY.
-
Page 10: Troubleshooting
110-1060.qxd 3/27/03 10:51 AM Page 10 (Black plate) All manuals and user guides at all-guides.com Troubleshooting SYMPTOM REMEDY Thermostat does not Check wiring. turn on system. (See INSTALLATION) Check fuse. Replace with 3 amp fuse if fuse has opened. Thermostat turns on and off Increase temperature differential. -
Page 11: Wiring Diagrams
110-1060.qxd 3/27/03 10:52 AM Page 11 (Black plate) All manuals and user guides at all-guides.com Wiring Diagrams The following is just a sample of the most common types of HVAC sys- tems. Refer to your systems installation manual for wiring information. HEAT/COOL HEAT ONLY 4-WIRE... -
Page 12: Two-Year Limited Warranty
Two Year Limited Warranty Climate Controls Americas warrants to the original contractor installer or to the original consumer user, each new Robertshaw thermostat to be free from defects in materials and workmanship under normal use and service for a period of two (2) years from date of purchase. This warranty...
