Summary of Contents for Dometic RCCA 920

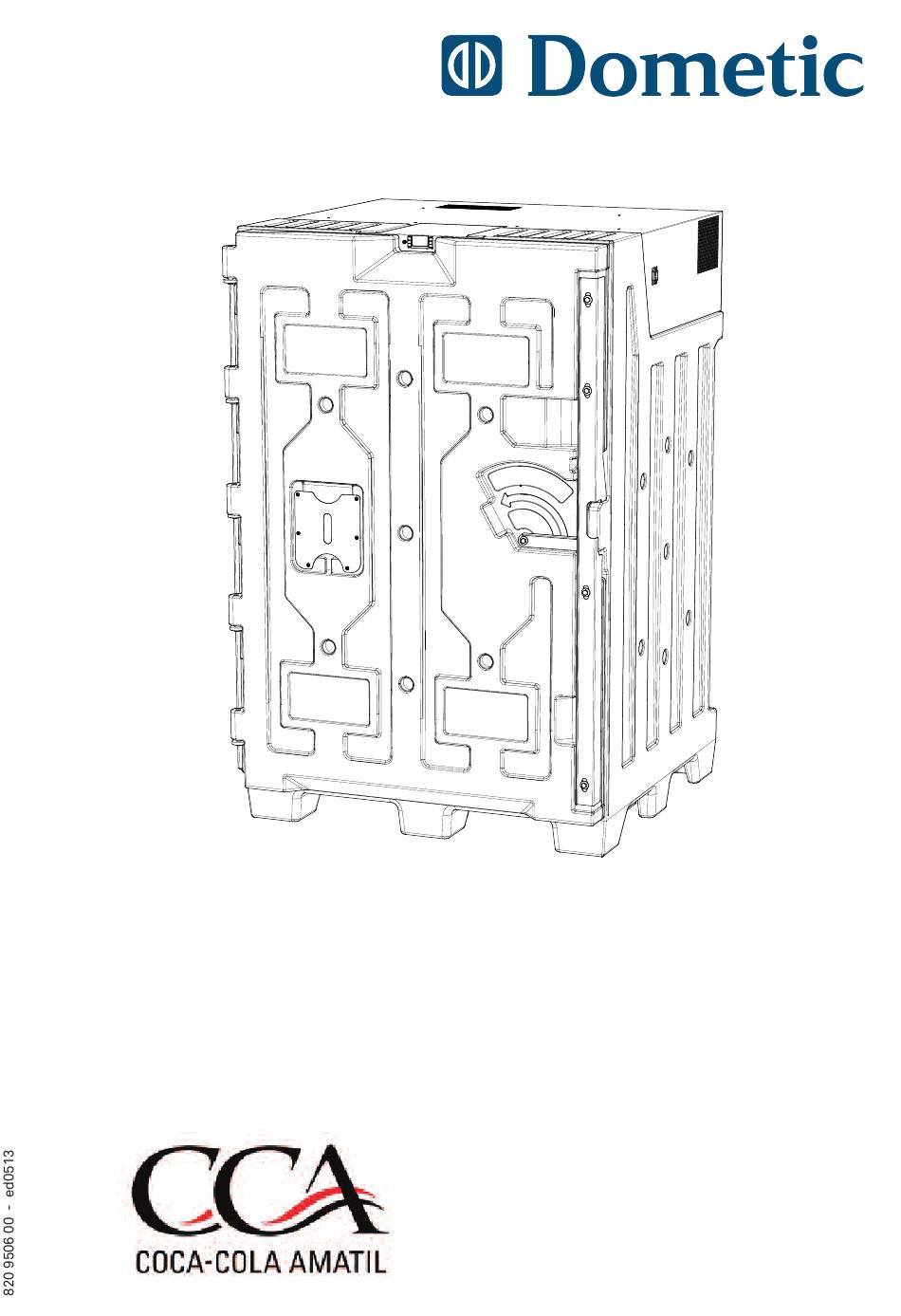

- Page 1 Operating instructions RCCA 920...
-
Page 3: Table Of Contents
TABLE OF CONTENTS General.....................4 Safety....................4 Environmental Protection..............5 Installation..................5 Electrical Connection ...............6 Internal Batteries ...............6 Circuit Breaker ................6 Connection to AC / Charging the batteries ........6 Battery Guard ................7 Operation ..................7 Control Panel ...............7 Charging LED................7 Electronic Control Unit ...............7 Switching on................8 Temperature Setpoint..............8 Door Switch................8 Alarms....................8... -
Page 4: General
• The units must only be used by adults. Do not allow children to play with the units or touch the controls. • Any maintenance as well as any repair operation are only permitted by Dometic personnel, by Dometic authorised subcontractors or if the user has been properly... -
Page 5: Environmental Protection
• Ensure that the electrical cable is not squeezed or bent when the unit is being installed or moved. • Electrical cable must not be left on the floor near the unit to avoid electrical shocks due to the condensation water flowing from the unit during the operation. •... -
Page 6: Electrical Connection
• After removal from the packaging, make sure the appliance is not damaged. Do not operate a damaged unit. If in doubt please call your dealer. • Before use thoroughly clean the inside of the refrigerator (See chapter “Cleaning”) The appliance must be thoroughly dried after cleaning. Electrical Connection Internal Batteries •... -
Page 7: Battery Guard
Battery Guard • To protect the batteries from complete discharging, the RCCA920 is equipped with an integrated battery monitoring system. • To protect the batteries, the monitoring system will switch the unit off once the battery voltage drops below the preset cut-out value. The operation starts again after the unit is connected to an external power source and the batteries are charged again. -
Page 8: Switching On
Switching on • Switch on the unit by pressing the - button on the electronic unit. • Shortly after switching on, the inside temperature of the unit is shown on the display. Temperature Setpoint • The temperature set point is the set target temperature of the appliance. •... -
Page 9: Door Alarm
• After switching on the appliance the temperature alarm function is disabled for the first 3 hours after switching on. • The temperature alarm limits are absolute alarm limits i.e. if the temperature set point is adjusted, the temperature limits will not change. •... -
Page 10: Fan
• The RCCA-920 is equipped with internal ventilation. For optimal air circulation inside, it is important that the interior fan is always functional. • To prevent warm outside air being sucked in unnecessarily when the door is open, the fan switches off when the door is opened. •... -
Page 11: Maintenance
Address for service Regular Service Coca-Cola Amatil 40 Mount Street North Sydney NSW 2060 Phone: 132653 Further Assistance Dometic Australia Phone: 1800 21 21 21 Technical Data Designation RCCA-920 External Dimensions WxDxH : 1170 x 1170 x 1805 mm Voltage :...
