General
The SMR10/20 family of magnetic stripe card readers are designed for reading standard or high-coercivity magnetic stripe
cards. The SMR20 also provides a 12-key keypad for PIN entry. The SMR10/20 provides a TTL interface. The following
paragraphs describe instructions for installing and maintaining the card reader.
Mounting the Reader
Find a suitable location to anchor the reader mounting bracket. The reader may be mounted vertically or horizontally. See
recommended orientation. The mounting of the reader does not require a junction box. However,rigid conduit is required for
outdoor application. A single gang junction box may be used to provide a transition to rigid conduit. If a single gang junction box
is used, a wall plate (optional) may be used to cover the junction box. The reader is then secured to the mounting bracket using
a screw. Refer to figures for reader dimensions and typical junction box usage.
Reader Wiring
The reader has a RJ-11 modular jack for easy field connection. A small piece of pre-terminated cable is supplied with each
standard reader for field wiring. The pre-terminated cable has nonstandard color. Refer to pin number if the pre-terminated cable
is not used. Cable with wires of 24AWG or larger are recommended for field wiring.
Magnetic Card Reader
Models SMR-10 and SMR-20
Installation and Maintenance Instructions

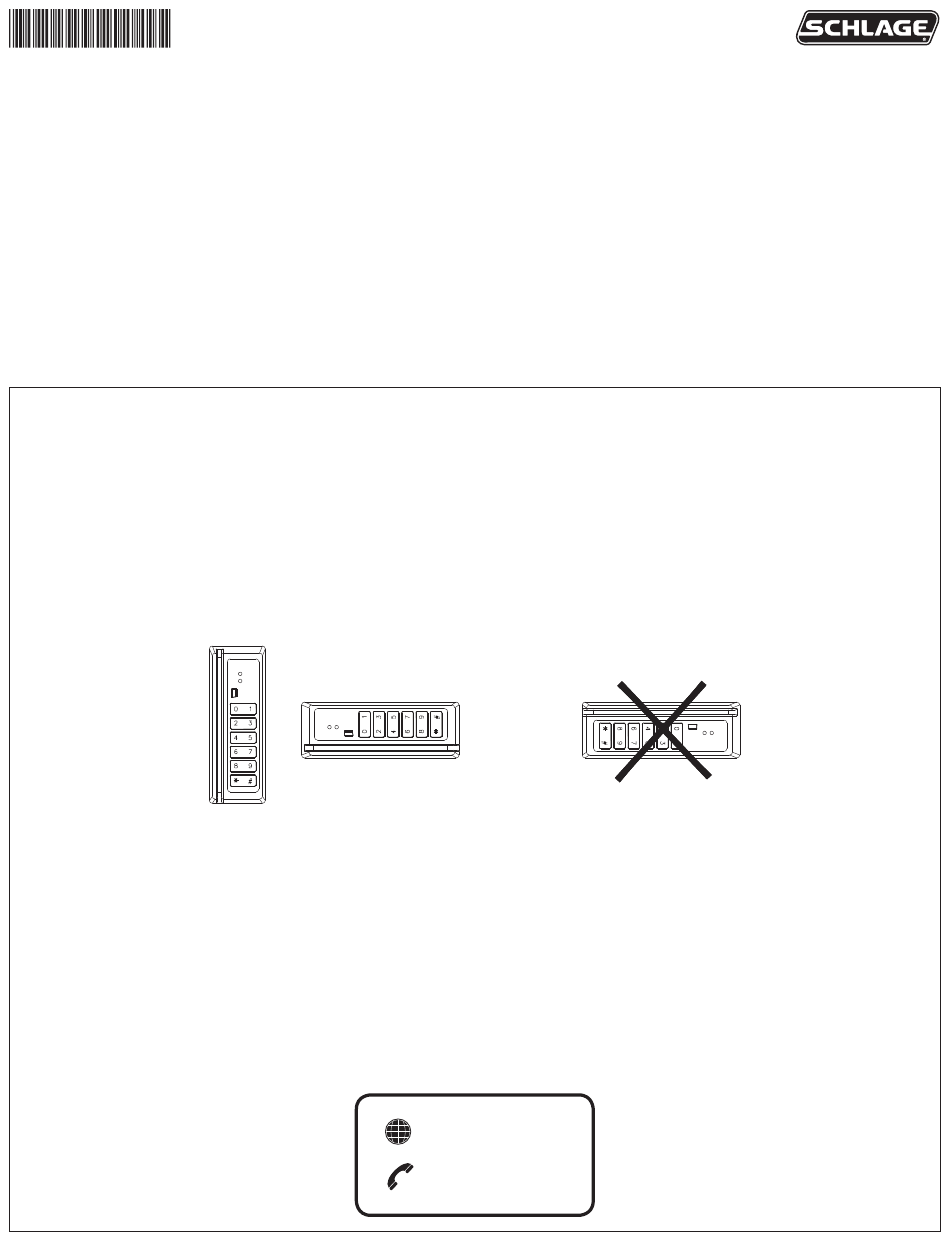

Recommended
Maintenance ............................................................................. 3
Dip Switch/Jumper Setting ........................................................ 4
Smr10/20 Standard Format Code Summary .......................... 5
Specification ............................................................................. 6
Product Identification ................................................................ 6
Reader Mounting Dimensions .................................................. 7
Warranty ................................................................................... 8
Liability ...................................................................................... 8
Not Recommended
www.schlage.com
(877) 671-7011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Schlage SMR-10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Allegion Schlage SMR-10

  • Page 1 Magnetic Card Reader Models SMR-10 and SMR-20 23884539 Installation and Maintenance Instructions Contents General ..................1 Maintenance ................3 Mounting the Reader ..............1 DIP switch/Jumper setting ............4 Reader Wiring ................1 SMR10/20 Standard Format Code Summary ......5 Connecting the Keypad ............
  • Page 2 Connecting the Keypad The SMR20 reader provides a 12-key keypad for PIN entry. The flex tail of the keypad is connected to the electronic board via a ZIF (zero insertion force) connector. The contacts are engaged/disengaged by a moving slide. Care must be exercised when connecting and disconnecting the keypad.
  • Page 3 DIP Switch/Jumper Setting The DIP switch/jumper on the SMR10/20 readers are used to select a preset format. This preset format determines how the card is interpreted, the functions for the LED and buzzer, and the output signal format, etc. Refer to the format specification for detail.
  • Page 4 Keypad Data and Tamper Monitor Signalling Keypad data and tamper monitor status are transmitted on the data lines as 8-bit blocks. They are encoded and sent using the same signaling method as selected for the card data output (clock/data or data 1/data 0). If Dorado 8-bit keypad data format is required order the -K1 option.
  • Page 5 Specification The reader is for use in low voltage, class 2 circuits only. Power Voltage 5Volt Model: 5.8 Vdc (4.9 to 6.4 Vdc) 12Volt Model: 12 Vdc (10.2 to 13.8 Vdc) Current 50mA (25mA typical.) Data output Data 1/0 pair or clock/data Timing clock/data period 1mS...
  • Page 6 Reader Mounting Dimensions 2.75 (70) 1.30 (33) 2X 0.18 (4.5) 2X 0.18 (4.5) Mounting Hole 2.60 (66) 1.00 (25) 1.38 (35) Dimension: inch (mm) 2.00 1.23 (31) (50) Optional Wall Plate (part# WP10) 3.60 2.50 (91) (64) 2X 0.18 (4.5) 2.25 ¹⁄₂”...
  • Page 7 Warranty Schlage Lock Company warrants the product is free from defects in material and workmanship under normal use and service with proper maintenance for two years from the date of factory shipment. Schlage Lock Company assumes no responsibility for products damaged by improper handling or installation. This warranty is limited to the repair or replacement of the defective unit.
  • Page 8 © Allegion 2017 Printed in U.S.A. 23884539 Rev. 08/17-b...

This manual is also suitable for:

Schlage smr-20
