Allegion Interflex IF-73 Manual

Allegion Interflex IF-73 Manual

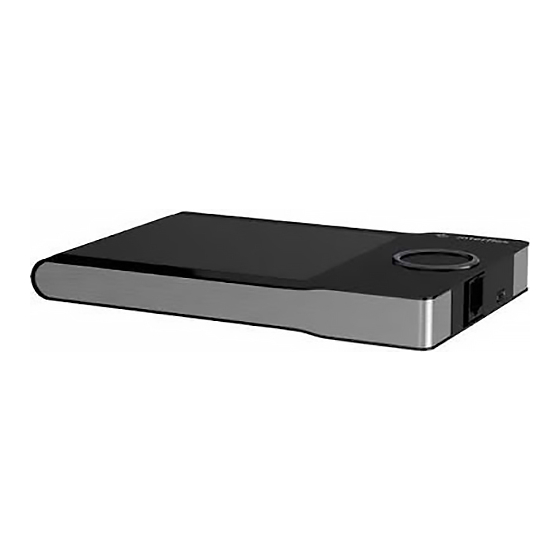

Desktop reader

Advertisement

Reader
IF-73
Desktop Reader
75-73-00xx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Interflex IF-73 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Allegion Interflex IF-73

  • Page 1 Reader IF-73 Desktop Reader 75-73-00xx...
  • Page 2: Table Of Contents

    Table of contents Table of contents 1 General information.......................... 1.1 Short description ......................... 1.2 Scope of delivery ........................1.3 Intended use ..........................2 Functional Description ........................2.1 Signaling ............................. 2.2 Modes of operation ........................2.3 Interfaces ............................ 3 Operation ............................4 Configuration of the reader......................
  • Page 3: General Information

    General information 1 General information 1.1 Short description Using the corresponding software, the IF-73 desktop reader can be configured for different purposes: reading data from RFID media in the form of cards and key tags writing access permissions to RFID media encoding new applications onto RFID media (MIFARE only) Prerequisites...
  • Page 4: Functional Description

    Functional Description Any other use is not in accordance with the intended purpose and therefore not permitted. Modifications to the device are not permitted. 2 Functional Description 2.1 Signaling Visual: three-color LED The color of the LED changes depending on the status of the reader. LED color Description Blue...
  • Page 5: Operation

    Operation The default setting is USB. The connection can be configured in the Reader Configurator. The pin assignments are described in the section Pin assignments. Pin assignments USB 3.1 Type C Description Description CC1 / CC2 Communication channel 1 / 2 Data - Data + Ground...
  • Page 6: Configuration Of The Reader

    Configuration of the reader 2. Remove the RFID medium from the desktop reader If the status display changes to red, the reading process failed. In this case, repeat the procedure. 4 Configuration of the reader The Reader Configurator software offers several functions for IF-73 and IF-72 readers: Performing firmware updates Reading configuration data Applying settings...
  • Page 7: Reading Configuration Data

    Technical specifications 4. Select the firmware file 5. Click the Start button The firmware is downloaded. After the download, the reader reboots. 4.4 Reading Configuration Data 1. Start the Reader Configurator 2. Click on Get Parameters from Reader The parameters of the readers are displayed. A restart is automatically carried out at the end (acoustic signal).
  • Page 8: Disposal

    Disposal Signaling Audible: Buzzer Optical: three-color LED Dimensions (W x H x D) 65 x 130 x 23 mm Housing material Plastic Weight Approx. 130 kg Color Agate gray, similar to RAL 7038 6 Disposal Once its service life comes to an end, the device must be disposed of properly as electronic waste.
  • Page 9 The original manual is in German. Other languages are translations of the original manual. Version: 09.21 Interflex Datensysteme GmbH +49 711 1322 - 0 Zettachring 16 interflex.info@allegion.com 70567 Stuttgart, Germany www.interflex.de...
