Summary of Contents for DLP Design DLP-RFID-LP8C

  • Page 1 Chipsmall Limited consists of a professional team with an average of over 10 year of expertise in the distribution of electronic components. Based in Hongkong, we have already established firm and mutual-benefit business relationships with customers from,Europe,America and south Asia,supplying obsolete and hard-to-find components to meet their specific needs.

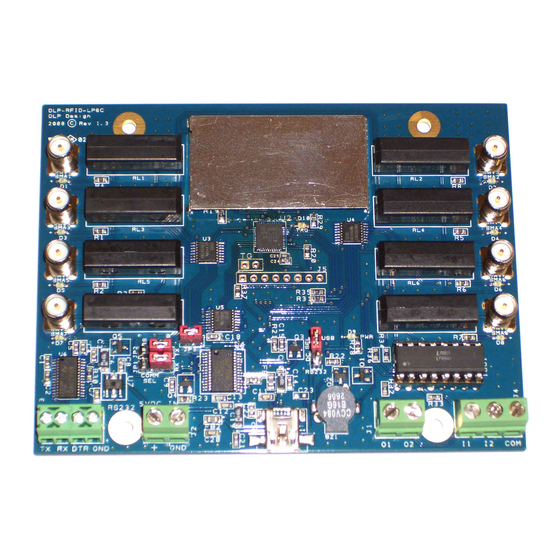

  • Page 2 (UID). All of the DLP-RFID-LP8C’s electronics reside on a single, compact PCB; and all operational power is taken from the host Windows/Windows CE/Linux PC via the USB interface. Up to eight external antennas can be connected via reverse-polarity SMA connectors.

  • Page 3: Hardware Setup

    DB9, RS232 port connectors on a host PC. An external, regulated 5 volt power source must also be connected to J2. If using USB, simply connect the DLP-RFID-LP8C to a host PC using the 5-pin mini-B USB connector CN1 and a compatible USB cable. All power and data are provided via the USB cable.
  • Page 4 (Ex: 010900030422F00000). To send this packet using the TI GUI, first make the connection to the DLP-RFID-LP8C, and then click on the Test tab. Enter a command packet as shown below and click on Send Raw. The LED associated with the antenna channel selected will light and successive tag reads will use that channel.
  • Page 5 3.3 LP8C OPERATING FIRMWARE The source code for the firmware running in the DLP-RFID-LP8C reader (developed using Code Composer Studio) is available for download upon purchase of the DLP-RFID-LP8C from the DLP Design website. 4.0 MECHANICAL DIMENSIONS IN INCHES (MM) 2.08 typ...

  • Page 6: Agency Identification Numbers

    1.25-inch read range. The DLP-FANT requires a coax cable with a reverse-polarity SMA connector at one end for connection to the DLP-RFID-LP8C reader. This coax cable is available in a 3-foot length from DLP Design under part number DLP-COAX1.

  • Page 7: Fcc/Ic Requirements For Modular Approval

    5.3 FCC/IC REQUIREMENTS FOR MODULAR APPROVAL Any changes or modifications to the DLP-RFID-LP8C’s printed circuit board could void the user’s authority to operate the equipment. Operation of an unapproved antenna could void the user’s authority to operate the equipment. 5.4 WARNINGS Operation is subject to the following two conditions: (1) This device may not cause harmful interference;...

  • Page 8: Contact Information

    This product and its documentation are supplied on an as-is basis, and no warranty as to their suitability for any particular purpose is either made or implied. DLP Design will not accept any claim for damages whatsoever arising as a result of use or failure of this product. Your statutory rights are not affected.
  • Page 9 240-1018-1 PQ1L303M2SP 0.1uF 5V IN 1uF/10V/0603 3.3V UCVCC SWVCC 74HC238/TSSOP SWVCC RELAY SPST 10/10 Tant COUT RP-SMA1 5VDC IN .01uF ANT_SEL_A 901-144-8RFX ANT_SEL_B ANT_SEL_C 10/10 Tant .01uF/0603 UCVCC 0.1uF/0603 RELAY SPST RP-SMA3 901-144-8RFX 5V SELECT SWVCC ULN2003A/TSSOP USBVCC RELAY SPST RP-SMA5 901-144-8RFX TX SELECT...
  • Page 10 3VCC DLP-RFID-LP8C MMBT3904 Simplified SWVCC Schematic OUT1 Buzzer EXT_IN2 OUT2 3VCC EXT_IN1 SPKR MMBT3904 1.8K EXT_OUT1 GR TAG LED EXT_OUT2 ISO1 1.8K LTV846 PROGRAMMING HEADER Matching network & ANTENNA filtration RESET 13.56MHz 22pF 22pF TRF7970A XTAL_OUT UCVCC XTAL_IN MSP430F2370 3VCC...
