Kikusui PCR-LE Series Setup Manual

Setup Guide
PCR-LE Series
Single-phase Three-wire Output Driver
2P05-PCR-LE
Thank you for purchasing the PCR-LE Series Single-phase
three-wire output driver.
Use of the Single-phase, Three-wire Output Driver allows the
outputs of two PCR-LE Series to be connected in series for use
as single-phase, three-wire system power supplies.
Firmware version of PCR-LE
When using the 2P05-PCR-LE, the PCR-LE must be required
with the firmware version of 2.00 or later. If the firmware ver-
sion of the PCR-LE is 1.99 or previous version, the PCR-LE is
required for the firmware update.
When using the 2P05-PCR-LE, the firmware of all the PCR-LE
series that make up the system must be the same.
To check the firmware version of the PCR-LE, refer to the opera-
tion manual of the PCR-LE series. In case, the PCR-LE needs
update, contact your Kikusui agent or distributor.

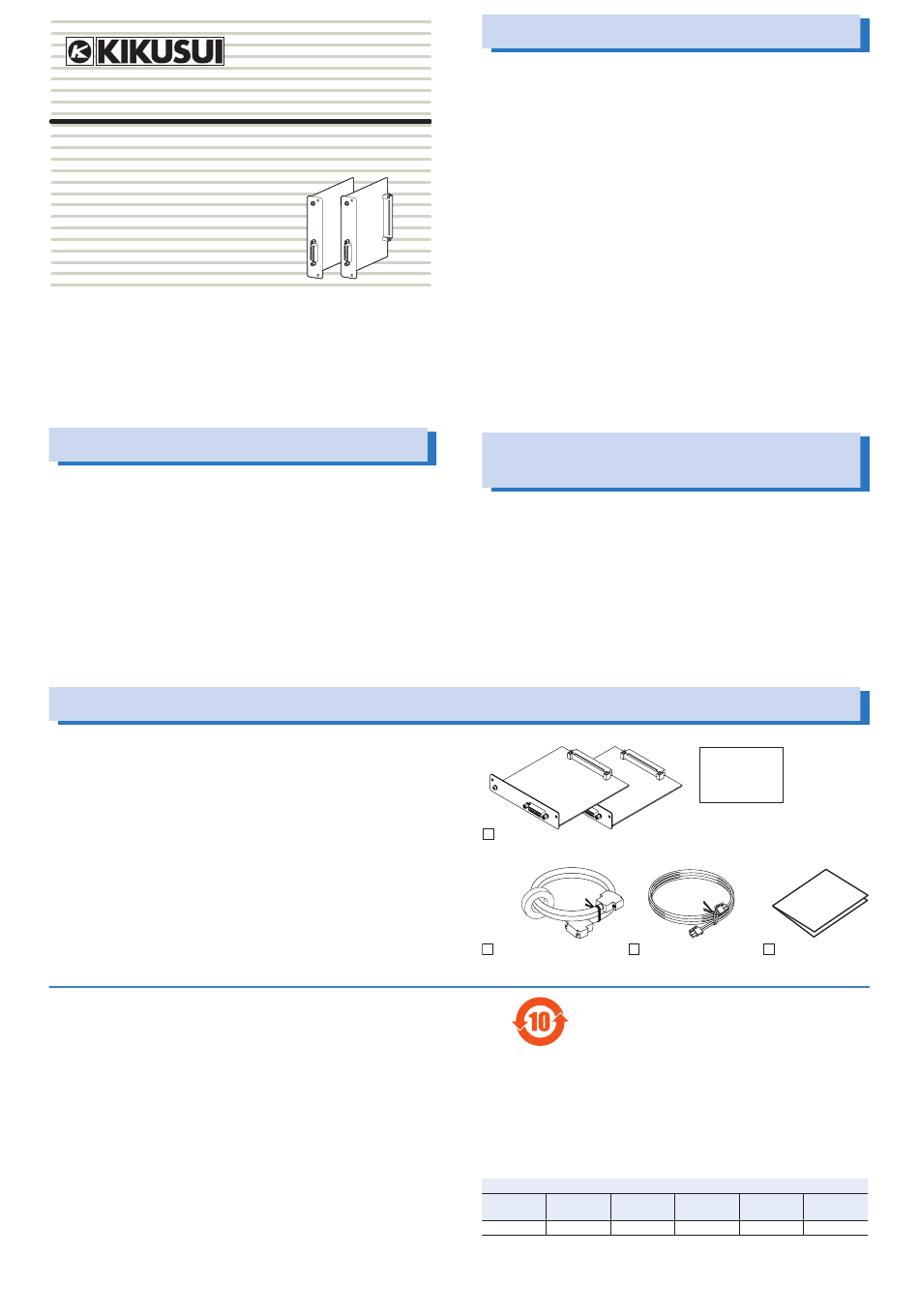

Check at Unpacking
Upon reception of the product, confirm that the package con-
tains the necessary accessories and that the device and ac-
cessories have not been damaged during transportation. If the
device is damaged or any accessory is missing, notify Kikusui
distributor/agent.
KIKUSUI ELECTRONICS CORP.
www.kikusui.co.jp
© 2012 KIKUSUI Electronics Corp.
2P05-PCR-LE
PART NO. Z1-006-080, I0021401
Sep 2020
Features
Use of this device allows the PCR-LE series to provide the fol-
lowing enhanced functions, in addition to the PCR-LE's stan-
dard functions.
• Single-phase Three-wire Output
Use of this device allows two PCR-LEs to generate single-
phase, three-wire outputs, in which the U-phase unit of the
two power supplies acts as a master and their V-phase unit
act as a slave.
• Setting of Either Line Voltage or Phase Voltage
• DC Output
• Line Voltage Measurement
• Measurements of the Total Power, Total Apparent Power, and
Total Power Factor of Single-phase, Three-wire Output
Use of this output driver allows for the display of total power
and total apparent power obtained through measurements
using the two PCR-LEs. The total power factor of the two
phases can also be calculated from these total values.
• Setting of Phase Difference
Functional Restrictions during
Single-phase, Three-wire Operation
Use of the 2P05-PCR-LE allows the PCR-LE series to generate
single-phase, three-wire outputs. The following functions are
not available when the device is installed in the power supplies.
Regulation adjustment
High-speed response
You cannot use the 2P05-PCR-LE with the 3P05-PCR-LE Three-
Phase Output Driver Option.
U- and V-phase boards (one each)
Cable : [91-80-9919]
Core:
[96-00-0530]
Connecting cable Power-sync cable
(75 cm; 1 pc.) (1 m; 1pc.)
环境保护使用期限
Environment-friendly Use Period
该标记为适用于在中华人民共和国销售的电子信息产品的环境保护使用期
限。只要遵守有关该产品的安全及使用注意事项，从制造年月起计算，在
该年度内，就不会对环境污染、人身、财产产生重大的影响。
产品的废弃请遵守有关规定。产品的制造年月可以在以下网址中确认。
http://www.kikusui.co.jp/pi/
毒有害物质或元素名称及含有标示
Name of hazardous materials and symbol of elemet in the equipment and quantity
有毒有害物质或元素
铅 汞 镉
Pb Hg Cd
× ○ ○
本表格依据 SJ/T 11364 的规定编制。
○ : 该部件所有均质材料的有毒有害物质的含量不超过 GB/T 26572 标准所规定的极
限值要求。
×: 该部件至少有一种均质材料的有毒有害物质的含量超过 GB/T 26572 标准所规定
的极限值要求。
The indications
"U" and "V" on
the panel part of
each board.
[91-80-5099]
Setup Guide
(This guide, 1 pc.)
六价铬 多溴联苯 多溴二苯醚
Cr(VI) PBB PBDE
○ ○ ○
