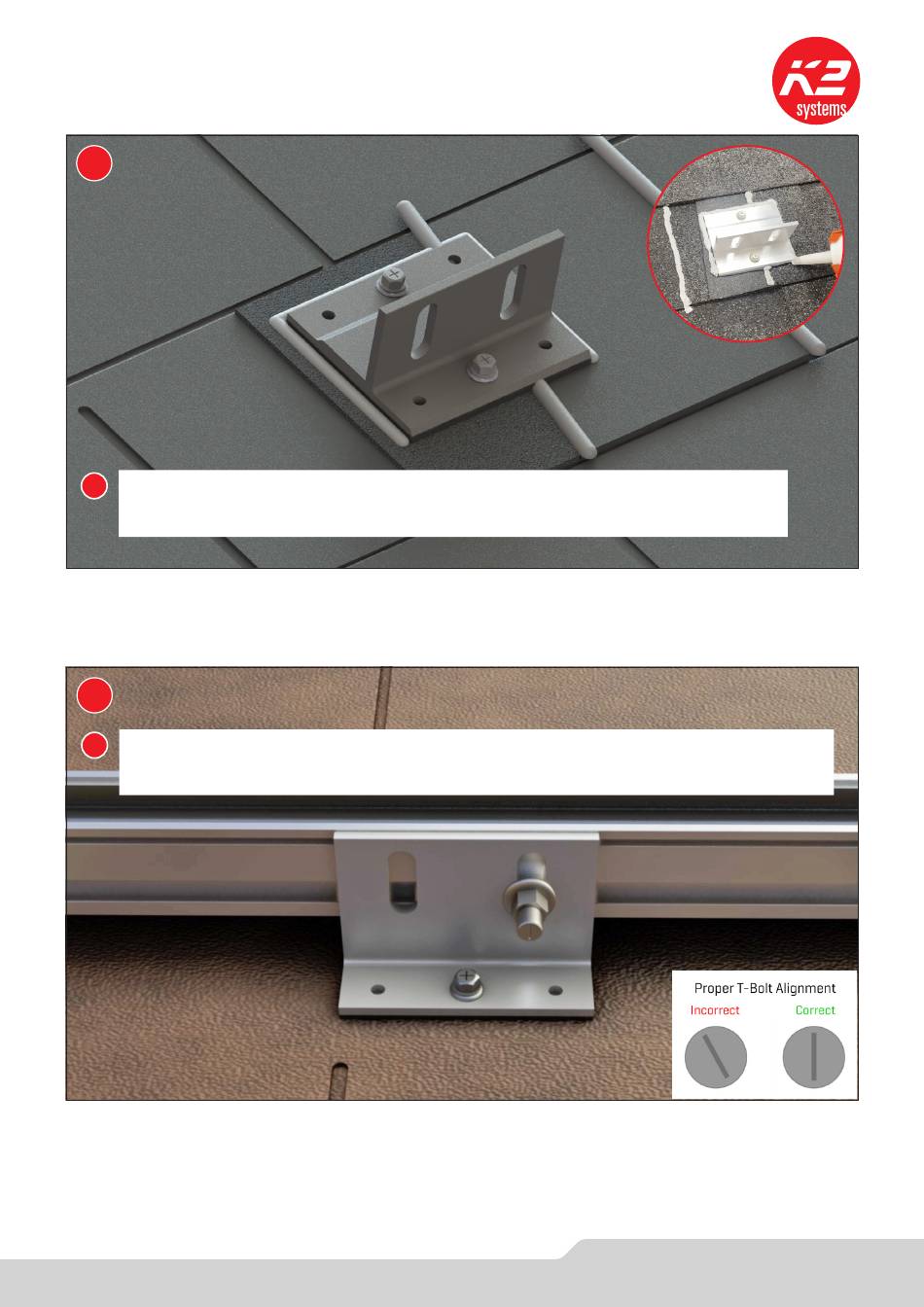

Sealant application
Apply appropriate sealant to top and each side edge of mount, covering exposed butyl. No need to
!
apply to the bottom of mount. If the mount falls on top of a shingle seam, fill and seal the seam with a
compatible roof sealant. If a seam comes within 2" of the lag screw, fill the seam with roof sealant.
5a
Attaching single CrossRail
Position and install rail on back side of Splice Foot towards the ridge, as shown in the image. Insert only one
!
T-Bolt through one Splice Foot slot and into side channel of CrossRail. Turn the T-Bolt clockwise ensuring that
the mark at the end of the shaft is vertical, indicating proper alignment. Tighten to 25.8 ft-lbs (35 Nm).
