Page 1

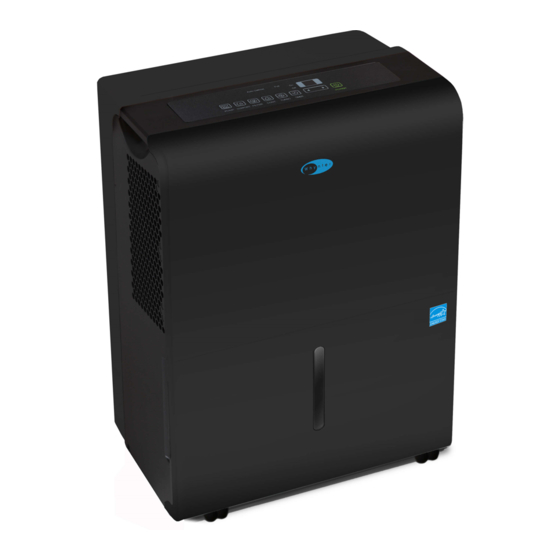

Whynter Elite D-Series Energy Star 65 Pint Portable Dehumidifier, Black Model # : RPD-652DB INSTRUCTION MANUAL Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before using this product. Keep this manual in a safe place for future reference.
We trust that your Whynter Portable Dehumidifier will provide the performance and reliability that we stand for. Your Whynter Portable Dehumidifier is designed to remove moisture in the air by condensation removal and collecting the condensation water in the drain bucket or draining through a drain hose.
TABLE OF CONTENTS PAGE DISPOSAL INFORMATION SAFETY PRECAUTIONS INTRODUCTION / TECHNICAL DATA PARTS AND CONTROLS 6 - 9 OPERATION INSTRUCTIONS 10 - 11 WATER DRAINAGE INSTRUCTIONS 12 - 13 MAINTENANCE TIPS ON WHEN TO USE YOUR PORTABLE DEHUMIDIFIER TROUBLESHOOTING 16 - 17 WARRANTY INFORMATION...
SAFETY PRECAUTIONS TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY WHEN USING YOUR PORTABLE DEHUMIDIFIER, FOLLOW THESE WARNING BASIC PRECAUTIONS: Read all instructions before using the appliance. Never clean appliance parts with flammable fluids. The fumes can create a fire hazard. Do not use an exces- sively wet cloth, industrial solvents, and oil-based products to clean this appliance.
Make sure the drain bucket is fitted correctly otherwise appliance will not turn on. Energy Saving Guide This Whynter Portable Dehumidifier is an Energy Star rated appliance. Follow the guide below can help to get the best performance and efficiency from your dehumidifier. ...
PARTS AND CONTROLS OTHER ACCESSORIES: (placed in the drain bucket of the unit) 1. 20“ Continuous/ Gravity Drain hose 2. Power Cord Buckle Power Cord Buckle Installation For easy storage, install the power cord buckle to the rear of the unit.
Page 7
PARTS AND CONTROLS Continuous RH% and Timer Bucket Full Timer On and Off Auto Defrost on Turbo Fan Clean Filter Operation Display Indicator light Indicator light indicator light Indicator light indicator light Indicator light Comfort Dehumidifying Operation indicator light Comfort Power Filter Continuous...
Page 8
PARTS AND CONTROLS 5. Timer Button Press to activate the Timer delay feature, in conjunction with the Timer Control Buttons. Timer Delay Switch Off When the appliance is ON, press the Timer button to activate Auto-stop function and the Timer OFF light will come on.
Page 9
PARTS AND CONTROLS Bucket Full Indicator The appliance will run continuously until the set RH% is reached or when the drain bucket is full. When the drain bucket is full, the Full indicator light will illuminate and the dehumidifier will stop operating. Remove the water in the bucket with two hands, then place the drain bucket back to it's proper position and the machine will start operating again.
AIR FILTERS INSTALLATION Your Whynter portable dehumidifier is equipped with a 2 in 1 silver-coated washable pre-filter combo. This washable pre-filter removes large particles such as dust, pet hair and dander. The silver coating is designed to kill bacteria in the air and control the growth of microbes, such as viruses, fungi and spores.
Page 11
OPERATION INSTRUCTIONS POSITIONING THE UNIT This dehumidifier is intended for indoor residential applications only and should not be used for commercial or industrial applications. Place the dehumidifier on a smooth, hard and level floor strong enough to support the appliance with a full bucket of water.
WATER DRAINAGE INSTRUCTIONS Using a portable dehumidifier requires that collected water be emptied frequently. Draining water from this unit can be done in 2 different methods: 1. CONTINUOUS / GRAVITY DRAIN METHOD Water can be automatically emptied into a floor drain by attaching the 20” continuous/gravity drain hose to the continuous/gravity drain outlet.
Page 13
WATER DRAINAGE INSTRUCTIONS When you remove the drain bucket, do not touch any inside parts of the unit. Doing so may damage the prod- uct and result to injury. Be sure to push the drain bucket gently all the way into the unit. Banging the bucket against anything or failing to push it in securely may cause the unit not to operate.
MAINTENANCE CAUTION: Always turn off and unplug the dehumidifier before cleaning 1. Cleaning the air grille and main unit Use a damp cloth to wrap the main unit or use water and a mild detergent. Do not use bleach, chemicals or abrasives.
Indoor environments with excessive moisture can cause mold and fungus to thrive inside the walls and be- neath the carpet. Many types of mold are potentially dangerous and can lead to health problems. This Whynter Portable Dehumidifier reduces the amount of moisture in the air inside a home, which makes it far more difficult for harmful mold to grow.
TROUBLESHOOTING Many common portable dehumidifiers problems are easily resolved. Try the troubleshooting suggestions below to see if the problems can be resolved before having to contact the service department. Problem Possible Causes Solutions Power failure / outage. Restore the power supply. The dehumidifier does not ...
Page 17
Continuous/gravity drain hose Secure the drain hose. The dehumidifier leaks. is loose. Cracked drain bucket. Contact Whynter Service Department. Power failure or outage. Restore the power supply. The dehumidifier does not The automatic switch, line ...
Page 20
WHYNTER Portable Dehumidifier carefully in its original packaging material to avoid damage in transit. The original box and packaging material should be retained, as Whynter is not responsible for the cost of replacement packaging. Under this warranty, Whynter will repair or replace any parts found defective at our discretion.
