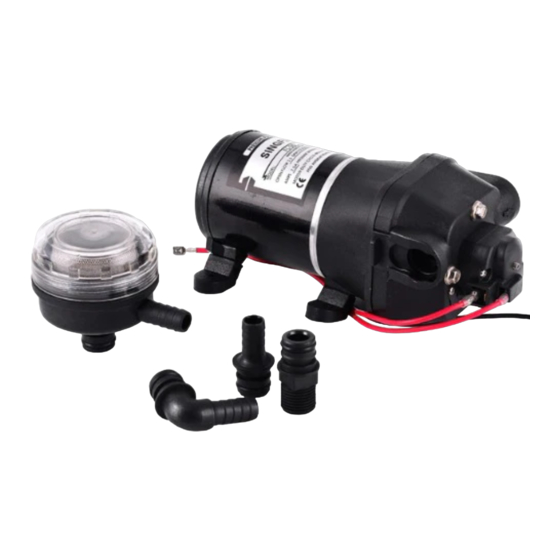

Waterhouse XC-SP006-FL35 User Manual Manual

12 Volt Diaphragm Pump User Guide Manual
Model: XC-SP006-FL35
Caution:
Please read all instructions carefully before installing this product.
This pump is not ip68 sealed and therefore shall by any means never be submerged. However the
electric wire connections must not be submerged. For extra protection please insulate all joins and
ends with approved insulation or shrink tapes to avoid electric shocks and fire sparks that may cause
explosions or fires.
Security:
•
12V diaphragm pumps can only be used for pumping clean water and non-corrosive
chemicals and liquids.
•
Please connect pump's black and white wire to the negative terminal (-) and white wire to
the positive terminal (+).
•
Make sure you use suitable size fuses.
•
The wire connections must be insulated by shrink or water tight insulation tape.
•
All wire connections must be outside water, unless necessary provided you have an ip68
waterproof connector.
•
Please do not run the pump dry.
•
Your pump must always be protected from water splashes or any liquid chemicals.
•
Make sure the pump works in a ventilated environment.

Specifications:

Model Flow Rate
XC-SP006 13.2L/MIN

Warning:

•
To prevent injury, always disconnect the power source when installing or servicing any
electric product.
•
Do not use the pump to pump gasoline oil or any flammable liquids.
•
Always make sure you use fuse amperage rated for your pump model.
•
Failure to follow these instructions may result in serious injury or fire hazards.

Optional Materials:

Volt Current (A)
12 7.0AMP
Head (m) Cable
24 30cm
Outlet Dia Weight
12/16mm 0.80kgs
