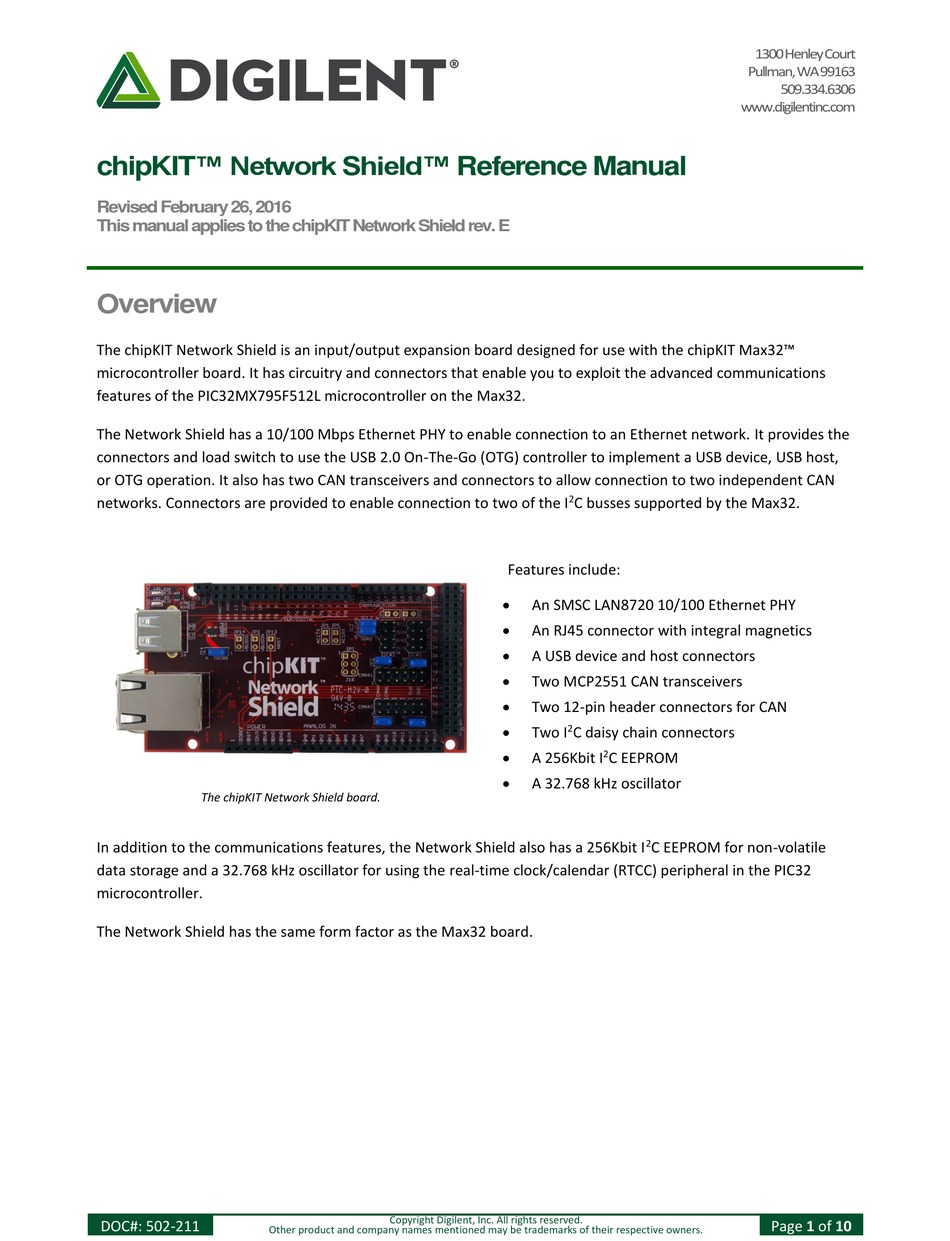

Digilent chipKIT Network Shield Reference Manual

Hide thumbs Also See for chipKIT Network Shield:

Advertisement

Quick Links

chipKIT™ Network Shield™ Reference Manual
Revised February 26, 2016
This manual applies to the chipKIT Network Shield rev. E
Overview
The chipKIT Network Shield is an input/output expansion board designed for use with the chipKIT Max32™
microcontroller board. It has circuitry and connectors that enable you to exploit the advanced communications
features of the PIC32MX795F512L microcontroller on the Max32.
The Network Shield has a 10/100 Mbps Ethernet PHY to enable connection to an Ethernet network. It provides the
connectors and load switch to use the USB 2.0 On-The-Go (OTG) controller to implement a USB device, USB host,
or OTG operation. It also has two CAN transceivers and connectors to allow connection to two independent CAN
networks. Connectors are provided to enable connection to two of the I
The chipKIT Network Shield board.
In addition to the communications features, the Network Shield also has a 256Kbit I
data storage and a 32.768 kHz oscillator for using the real-time clock/calendar (RTCC) peripheral in the PIC32
microcontroller.
The Network Shield has the same form factor as the Max32 board.
DOC#: 502-211
Other product and company names mentioned may be trademarks of their respective owners.
2
Features include:
An SMSC LAN8720 10/100 Ethernet PHY
An RJ45 connector with integral magnetics
A USB device and host connectors
Two MCP2551 CAN transceivers
Two 12-pin header connectors for CAN
2
Two I
A 256Kbit I
A 32.768 kHz oscillator
Copyright Digilent, Inc. All rights reserved.
Pullman, WA 99163
www.digilentinc.com
C busses supported by the Max32.
C daisy chain connectors
2
C EEPROM
2
C EEPROM for non-volatile
1300 Henley Court
509.334.6306
Page 1 of 10
