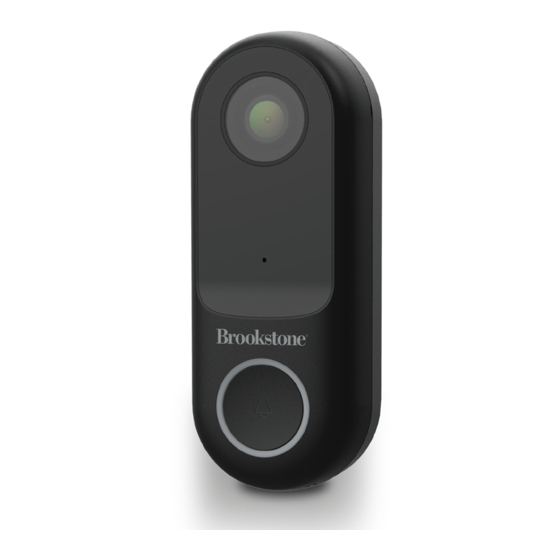

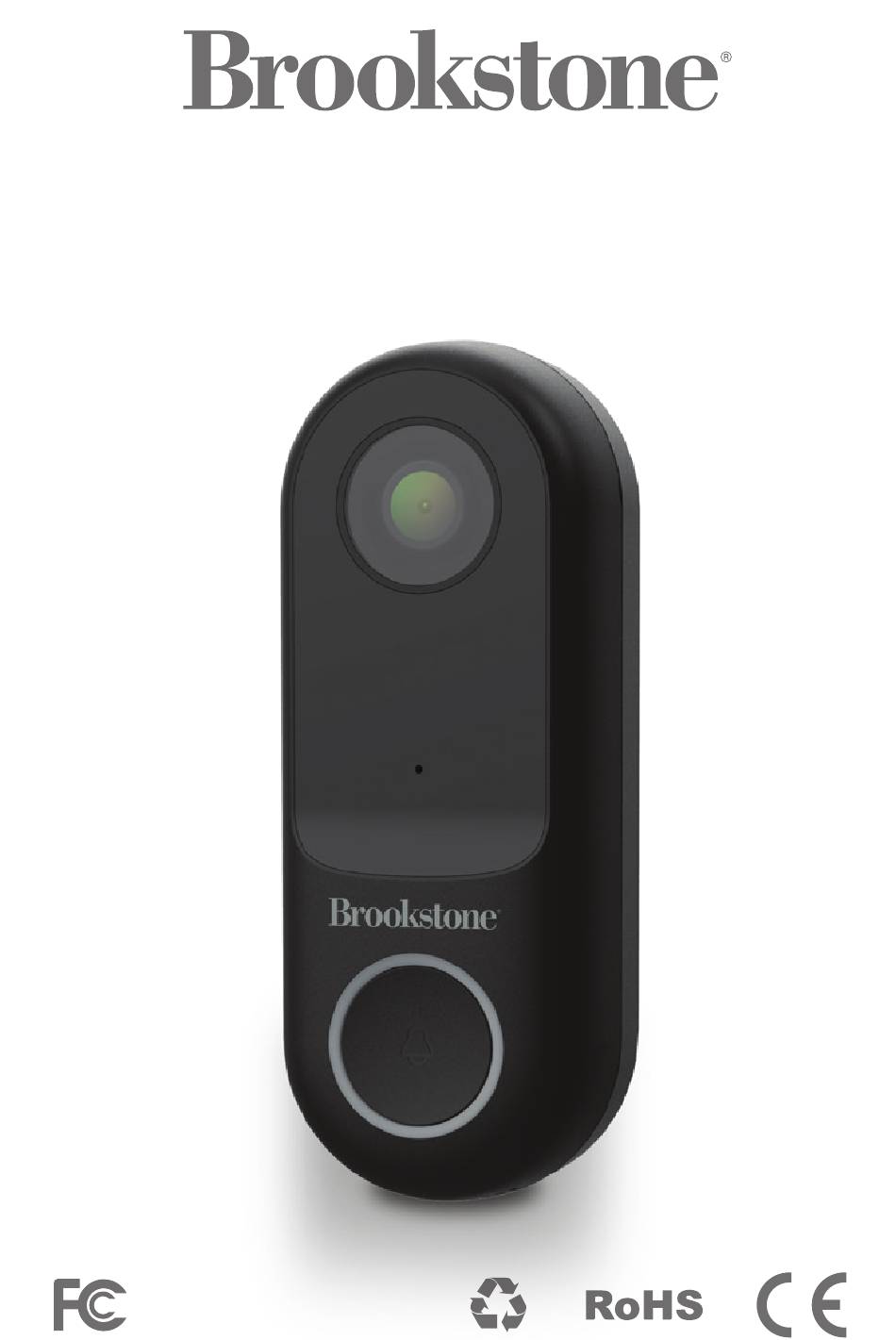

- Page 1 WiFi Video Doorbell USER MANUAL FCC ID: 2AG7CBELL5...
- Page 2 2. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. For more products please visit www.brookstone.com...
-
Page 3: Warranty Information
WARRANTY INFORMATION One Year Limited Warranty. Customer Service: 732-994-2301; email: help@smartpointco.com The BROOKSTONE trademark, names and logos are owned by BKST Brand Holdings LLC ©2020. All rights reserved Manufactured, marketed and distributed by Smartpoint LLC, under license Google, Android and Google Play are trademarks of Google LLC. -
Page 4: Specifications
SPECIFICATIONS Model: BKWIFICAMDR Resolution: 1920x1080 Alarm: Motion detection, button triggering Viewing angle: 145° Night Vision: Up to 32 feet Frame rate: Up to 25 fps Sensor: 2.0 Megapixel/ Color CMOS Audio: Microphone & Speaker built-in Micro SD Card Storage: Up to 128GB (FAT32 format) Compression: H.264... - Page 5 FEATURES • Wi-Fi remote controlled through App • Works with existing Mechanical Chimes • Hardwired and hooks up to electrical • Night vision • Motion detection (Create customized detection zones) • Two way audio • Live video • Video recording •...
-
Page 6: Product Configuration
PRODUCT CONFIGURATION Camera Lens Microphone External Power ports Status Light Button Speaker Reset Button Micro SD Card Slot USB Port... -
Page 7: What's In The Box
WHAT’S IN THE BOX Video Doorbell Angled Chime Kit Wall Mount Screws and Reset Pin Screwdriver Wall Anchors 3M Adhesive Wire Terminal Connecting Wires Manual... - Page 8 Installing Camera without angled bracket CAUTION: Before handling wiring of your house make sure to turn off breaker in fuse box to existing doorbell to avoid injury or death. 1. After turning power off, remove old doorbell. 2. Place bracket on wall and mark where screws will go.
- Page 9 5. Attach wires from house to wires on camera using the wire terminal. (You can use your own twist on connectors if you wish). It does not matter which wire connects to which wire from the house. 6. Fit the camera into the bracket and use the (D)screw at the bottom of the bracket to secure camera into bracket.
- Page 10 Installing Camera with angled bracket 1. If you want your camera to be angled in a left or right direction use the included angled bracket. 2. If you choose to install the angled bracket, install it directly onto the wall before the camera bracket in the desired angled position using (A)screws and (B)wall anchors if needed.
- Page 11 Installing Mechanical Chime CAUTION: Before installing mechanical chime make sure to turn off breaker in fuse box to mechanical chime box to avoid injury or death. 1. Find your mechanical chime that is a rectangular box that produces the sound when your doorbell is rung.
- Page 12 3. To connect the prongs, slightly unscrew both screw terminals and place prongs from the Chime Kit under each screw and tighten(It does not matter which color wire from the Chime Kit connects to which screw). 4. Using the included 3M adhesive, stick the Chime Kit to your chime wherever there is space and replace the cover.
-
Page 13: Download App
DOWNLOAD APP 1. Android: download “Brookstone Smart” app on Google Play. 2. iPhone: download “Brookstone Smart” app from the App Store. Brookstone Smart... -
Page 14: Registration And Login
REGISTRATION AND LOGIN 1. Run the “Brookstone Smart” app from your smart phone. 2. Register and login. * Screenshots may slightly differ from actual app. -
Page 15: Add Device
ADD DEVICE 1. Plug in Video Doorbell with USB cable into USB block in outlet or connect to electrical of house. If the light is not already blinking, insert the provided reset pin gently into the reset hole for 3-6 seconds until you hear a chime, then release. - Page 16 4. Press the “next step” button 5. Make sure phone is connected to the Wi-Fi network that the device will be connected to. Enter your password for the Wi-Fi network. 6. Follow the directions in the app and hold the QR code on the screen in front of the view of the camera.
- Page 17 7. Connecting process will begin. Do not turn off Video Doorbell or phone while connecting. Wait for connection process to complete. 8. Once device has been successfully added, name the device what you would like it to be called in the app.
-
Page 18: Push Notifications
PUSH NOTIFICATIONS You can turn on/off notifications for all devices connected to app by clicking on the “Me” button at the bottom right of the screen. 2. Then click on ”Settings” button. From there you can turn on/off all notifications. 3. -
Page 19: Remove A Device
REMOVE A DEVICE From the home screen, click on the device you would like to remove. 2. Then click on the edit symbol on the top right of the screen. 3. From there you would then click the “Remove Device” button at the bottom of the screen. -
Page 20: App Functions
APP FUNCTIONS Live Video To view live video simply click on the device under “All devices” and you will see your live video at the top immediately. Hit the full screen button at the bottom right corner of the live video to see your live footage at full screen on your phone. -
Page 21: Video Recording
Video Recording To record video press the “record” button at the top right corner of the screen. To end recording, press “record” button again. To view recordings, press “playback” button at the bottom left of the screen if you have a micro SD Card in the camera. -
Page 22: Taking A Photo
Taking a Photo To take a photo, press “screenshot” and the photo will be saved in the “Photo Album” section. Infrared Night Vision Infrared night vision is controlled by camera automatically. When the area around the camera becomes too dark, the infrared night vision will activate automatically. -
Page 23: Two Way Audio
Two Way Audio To activate two way audio, press the “speak” button. When the button is blue, whatever you say into your phone will come out of the speaker on the camera. You can also hear at the same time any sounds from the live video on the camera. -
Page 24: Motion Detection
Motion Detection The camera is triggered when someone/something moves within its detection area. Push notifications will be sent your phone once motion is detected. You can also set a detection activity area so only the area that you select will be triggered by motion. To access control of motion detection press the camera setting button at the top right and press “alarm”. - Page 25 Hub controls (sound, video quality, signal strength) You can control features from the live video feed. There is a volume button that is used to mute and unmute the live feed. Next to that button is the video quality button and it can be used to switch between standard and high definition video.
- Page 26 Device”. On the next page press “Add Sharing” at the bottom. After that, enter the email on the person’s Brookstone Smart account that you would like to share the camera with. They will get a notification to accept and after that the other person will have access to view your camera through the Brookstone Smart app on their phone.
