FSH EcoLock HL1260 Installation Manual

FSH HL1260 Installation Manual

1. INTRODUCTION

The HL1260 is a motor driven Hook Lock which may be commonly installed vertically in the lock style
of the door frame of a sliding door structure. A mechanical strike plate is normally installed in the edge
of the sliding door to engage with the hook of the HL1260.

2. FEATURES

Simple PTO/PTL Locking Mode changeover
Small size
High Security Motorised Hook Lock
HL1260 INSTALLATION MANUAL

3. APPLICATIONS

The HL1260 Motorised Hook Lock can operate with any type of
access control or intercom system as the sole means of locking,
normally in a sliding door. The device is not weather resistant and
therefore should always be installed in weather protected areas.
The device should not be installed in pool areas and the like with a
high content of chlorine in the air.

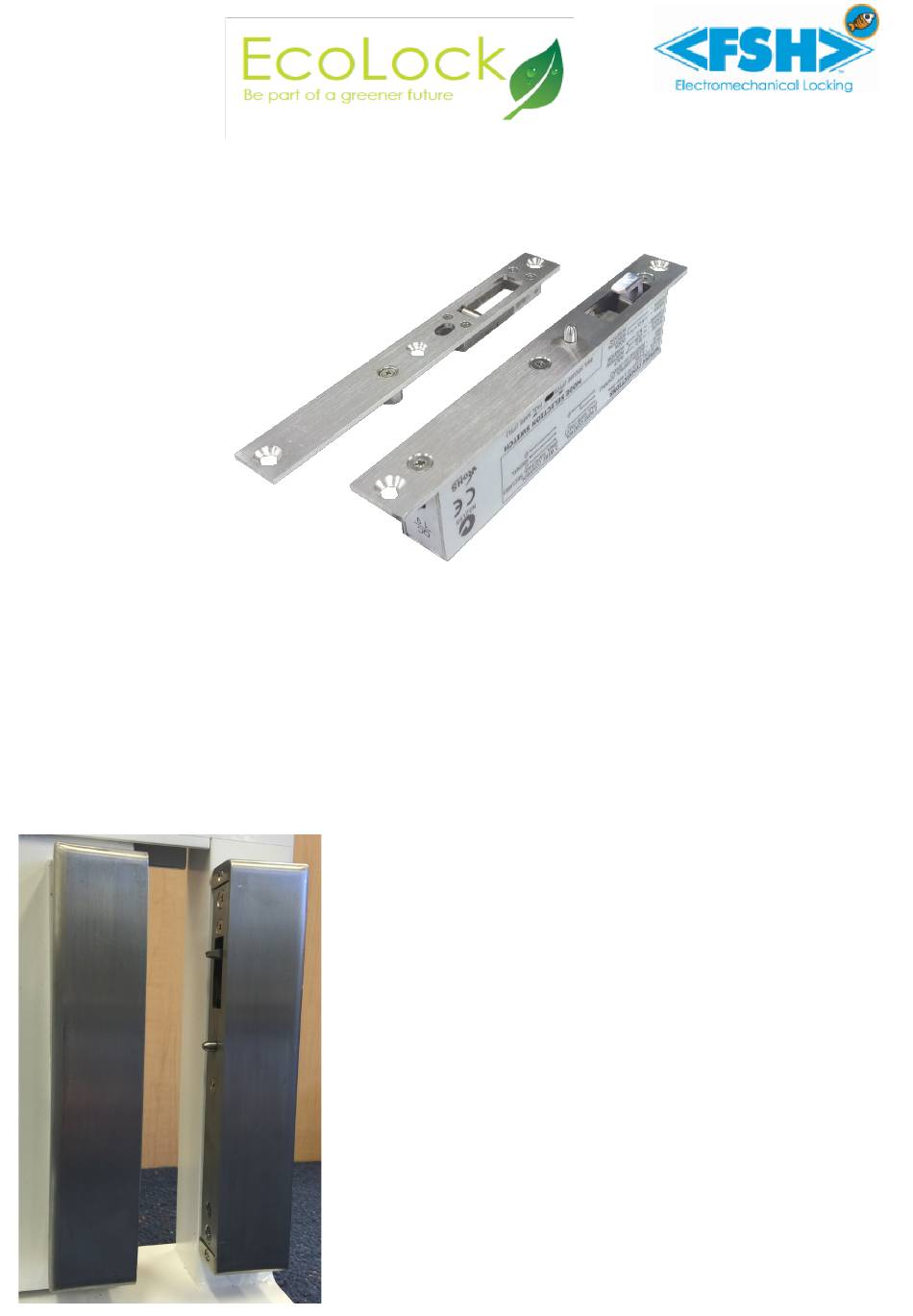

Two mounting options are available. In standard form the HL1260 is
recess mounted into the door frame as shown above. Optionally
available is a surface box kit available to suit both the lock and strik-
ing plate. They are supplied individually and accommodate either
the lock or the striking plate.
