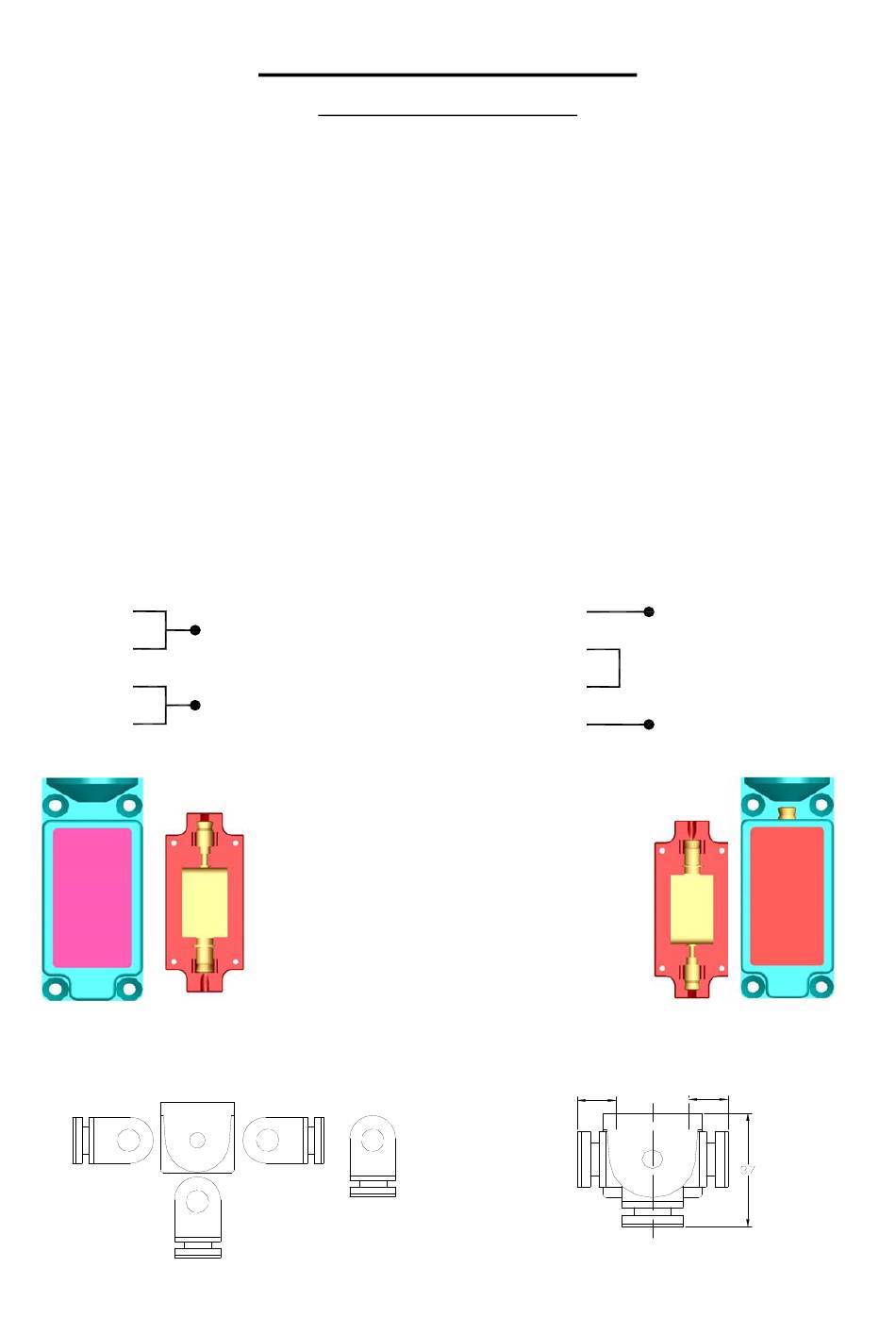

FSH FCL0001 Installation Instructions

The cabinet lock is designed to fit into cabinets and lockers with swing or sliding doors. The
lock is interchangeable between the POWER TO LOCK (see FIG 1) and POWER TO OPEN
(see FIG 2), two kinds of operation modes.

Striker installation:

SIDE ENTRY OF STRIKER (see FIG 3)
FRONT ENTRY OF STRIKER (See FIG 3)

Power input 12 VDC or 24 VDC supply:

Note: There is no polarity on power input.
RED
BLUE
YELLOW
BLACK
Figure 1: PTL
SIDE ENTRY
FIG 3
FRONT ENTRY
Figure 3
FCL0001 Cabinet Lock
Installation Instructions
12 VDC / 190 mA

Interchange between PTL and PTO:

1 Remove four screws from bottom
2 Remove the bottom case
3 Replace the wire in opposite side
4 Turn the bottom case 180
5 Replace the bottom case
6 Replace the four screws.
SIDE ENTRY SLIDE ENTRY
Striker can enter lock from
any of three sides, and also
sliding from the side.
Use the 10mm distance indicated in Figure 4 to set
the distance from the interior side of the door to the
first screw hole of the lock.
Use the 37mm distance indicated in Figure 4 to set
the distance from the backside of the lock to the
mounting face of the striker.
RED
BLUE
YELLOW
BLACK
o
horizontally
10
Striker insert
from left
FIG 4
Striker insert from front
24 VDC / 90 mA
Figure 2: PTO
10
Striker insert
from right
Figure 4
