FSH FEM5700 Manual

FEM5700/ FEM5700D/ FEM5700M/ FEM5700DM
Electro-Magnetic Lock Description:
The FEM5700 is an unmonitored single magnetic lock and FEM5700D is an unmonitored double magnetic
lock with dual 12 or 24 volt settings. There are no Lock or Door status sensors on these units. For wiring
instruction refer to figure 2.
The FEM5700M is a monitored single magnetic lock and the FEM5700DM is a monitored double
magnetic lock with 12 or 24 volt settings. Each magnetic lock has a built-in Hall crystal for remote
monitoring of Lock status (open or closed) through relay contacts rated at 24 VDC, 2.0 A max on
visible high luminosity backlight indicator position on the aluminum housing and a Door Status
Sensors (DSS) for remote monitoring of Door status through reed switch contact. For wiring
instruction refer to Figure 1.
Backlight Indicator OFF
Backlight Indicator RED
Backlight Indicator GREEN
Power setting and Input
Power Input
12 VDC
24 VDC
The (+) lead of the power source is connected to Pins 1 (VDC +) of the terminal block and the (-) lead
is connected to Pin 2 (-). The operating switch or controlling contacts must be installed between the
power source and the magnetic lock to reduce operating time of the magnetic lock to a minimum. The
electromagnetic lock requires a filtered and regulated DC Power Source for optimal performance.
Remove the wiring cavity cover plate and check the position of the two shunts located on the PCB. A
single shunt across pins 2 and 3 will set the operating voltage to 24 volts. A shunt between pins 1 to
2 and a shunt between pins 3 to 4 sets the operating voltage to 12 volts.
These voltage shunts must be set correctly before 12 VDC or 24 VDC power is supplied to the
Electromagnetic Lock to prevent damage to the unit.

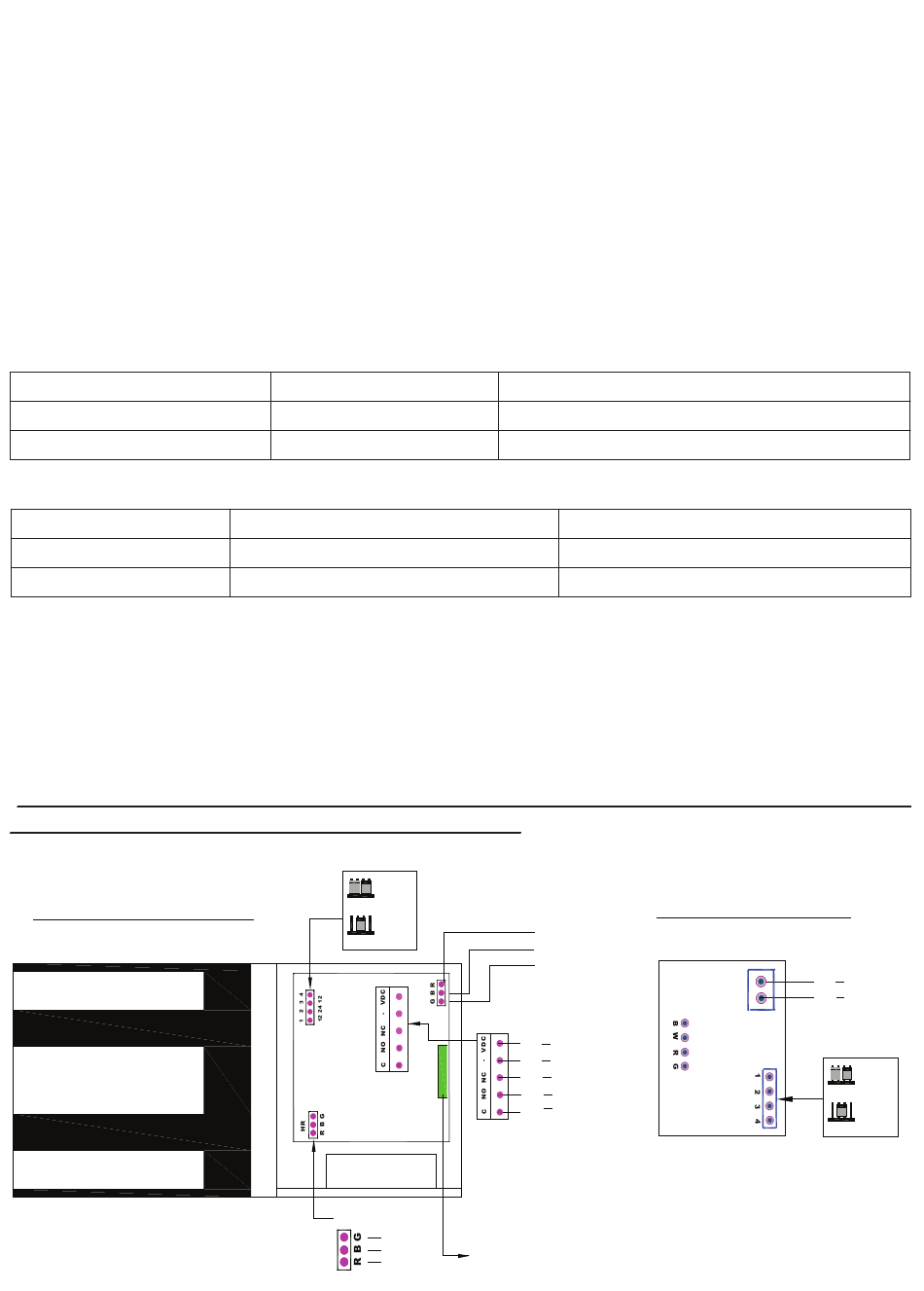

FEM5700M/ FEM5700DM PCB
Figure 1
Electromagnetic Lock
Relay De-energized,
Relay De-energized,
Relay Energized,
FEM5700/FEM5700M
0.53 A
0.26 A
12 VDC
1 2 3 4
24 VDC
1 2 3 4
LIGHT PANEL
Hall IC Wiring:
GREEN
BLACK
RED
No Power on Magnetic Lock
Power on Magnetic Lock and Door is Open.
Power on Magnetic Lock and Door Locked.
FEM5700D/FEM5700DM
Light Panel:
RED
BLACK
GREEN
+ VOLTAGE
-
GROUND
NC RELAY NC
NO RELAY NO
C RELAY C
DSS Wiring: BLACK - COM
Rated: 30 VDC RED - NC
0.2 A max. GREEN - NO
2 × 0.53 A
2 × 0.26 A
FEM5700/ FEM5700D PCB
+
-
1 2 3 4
1 2 3 4
Figure 2
VOLTAGE
GROUND
12 VDC
24 VDC
