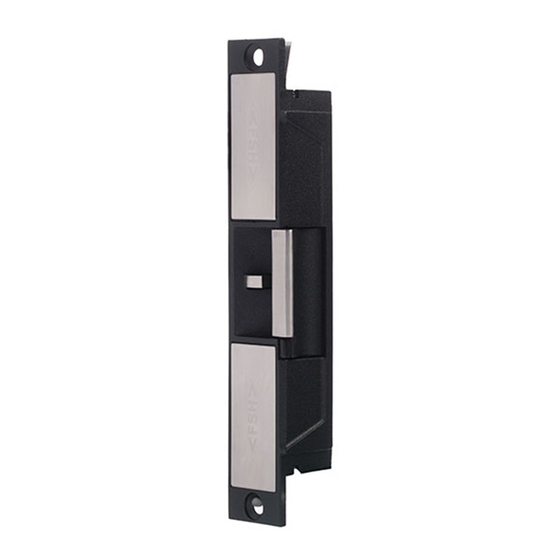

PRODUCT
FES20
Non Monitored Strike (not SCEC approved)
see new separate Manual for FES20M
FES20M
Monitored Strike (SCEC approved)
FES20M-L2 Monitored Strike Lipless (SCEC approved)
FES20M-R Monitored Strike with additional integrated Reed Door Position Switch (DPS) (not SCEC approved)
ACCESSORIES
FES20-EL 15
FES20-EL 25
FES20-EL 50
FES20-EL 75
MORTICE LOCK FACEPLATES EQUIPPED WITH A SET OF MONITORING MAGNETS
Australian Lock Company
DORMA
KABA
Legge
Lockwood
Nova
Other mortice lock types or cylindrical locks on request
WIRING
When installation of the strike and the mortice lock face plate is completed, connect the wiring according to list below:
Power Input
Wire output
LSS (Lock Status Sensor)
DSS(Door Status Sensor)
ATS (Anti – tamper Sensor)
Sensor Output
DPS (Door Position Status)
The FES20M-R monitored Electric Strike is equipped with an integrated Reed Door Position Switch (DPS). This function requires a special
Mortice Lock Face Plate equipped with a set of magnets to operate in combination with the FES20M-R Electric Strike.
FSH is providing a range of face plates from 6 manufacturers (see above). Face plates from other manufacturers on request.
NOTE
FES20 Series Electric Strike factory setting is Power to Lock (PTL) .
The control circuit for the door strike is protected against reverse polarity connection. No additional diode protection required.

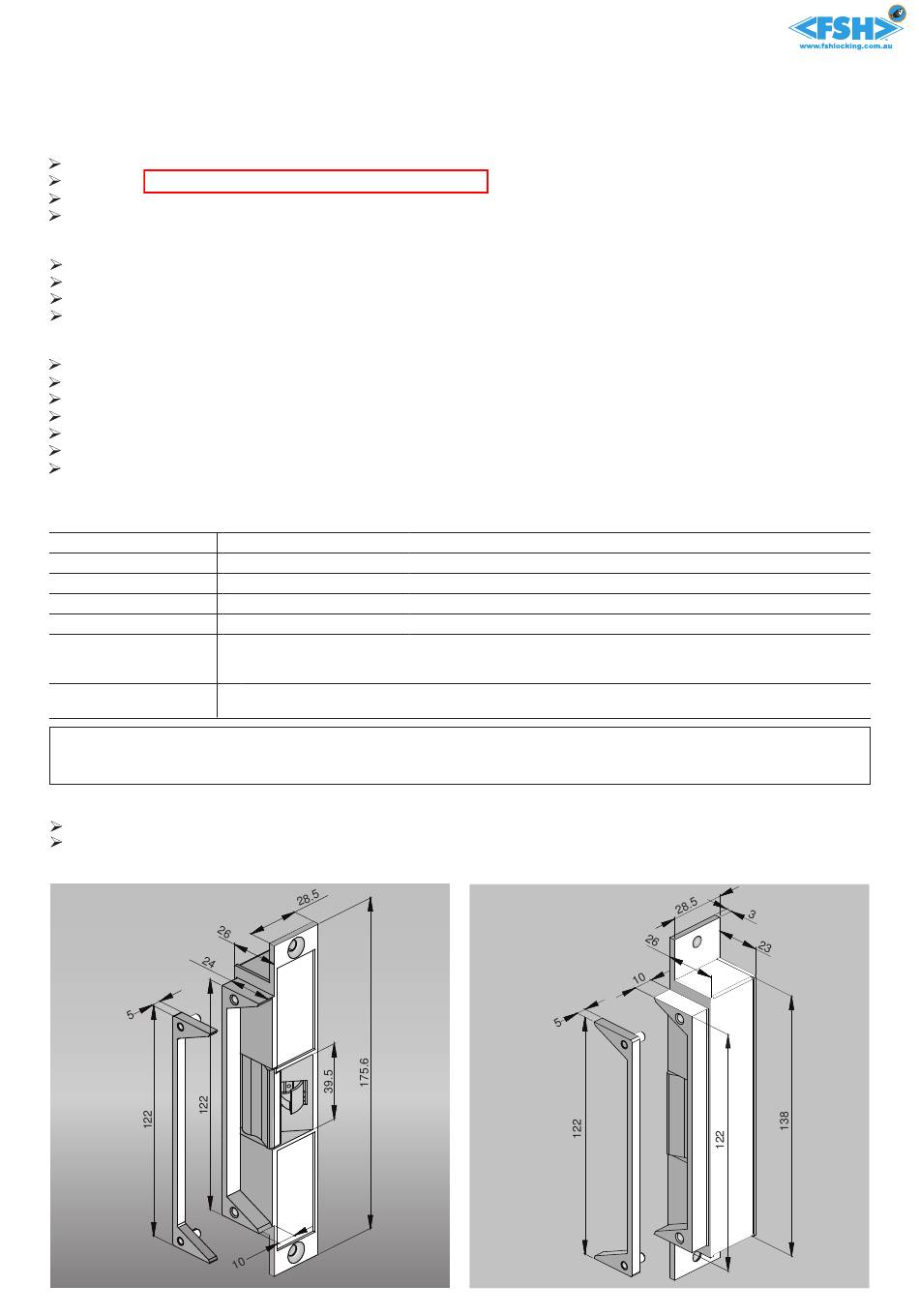

PRODUCT DIMENSIONS
Installation Manual
FES20 Series ELECTRIC STRIKE
FES20MR-AUS
FES20MR-DOR
FES20MR-KAB
FES20MR-LEG
FES20MR-LOC
FES20MR-NOV
Multi Voltage 11-30VDC
12 VDC – current 220 mA
Red (+)
Black (-)
Black (Common)
Yellow (NO-PTO); (NC-PTL)
Black (Common)
Blue (NO)
Black (Common)
Red (NO)
LSS Sensor Output
DSS Sensor Output
3 A, 125 VAC;
3 A, 125 VAC;
2 A, 30 VDC.
2 A, 30 VDC.
Grey
Grey
24 VDC – current 110 mA
Green (NC- PTO); (NO-PTL)
Orange (NC)
White (NC)
Anti-tamper Sensor Output
5 A, 125 VAC;
3 A, 250 VAC.
Normally Open Contacts
Door Position Switch
0.5A, 30VDC
Advertisement
Table of Contents
Related Manuals for FSH FES20 Series
Summary of Contents for FSH FES20 Series
- Page 1 Mortice Lock Face Plate equipped with a set of magnets to operate in combination with the FES20M-R Electric Strike. FSH is providing a range of face plates from 6 manufacturers (see above). Face plates from other manufacturers on request. NOTE FES20 Series Electric Strike factory setting is Power to Lock (PTL) .
- Page 2 INSTALLATION 176.0 123.1mm Depth of cut-out will vary dependent on width of door frame 5 sizes of extension lips are available 15mm Lip 5mm,15mm, 25mm, 50mm and 75mm 10mm Lip TEMPLATE cut thru Standard outline Lipless 162mm Position this line to 44.8 your marking.1mm clearance has been...
- Page 3 FIELD SELECTION PROCEDURES TO CONVERT PTO (POWER TO OPEN) TO PTL (POWER TO LOCK) Remove the rubber cap to expose the capstan wheel. Slacken both of the capstan release screws two full revolutions, DO NOT REMOVE. Remove the sticker from the cover end opening hole. Insert the “tool pin”...
- Page 4 FIELD SELECTION PROCEDURES TO CONVERT PTL (POWER TO LOCK) TO PTO (POWER TO OPEN) Remove the rubber cap to expose the capstan wheel. Slacken both of the capstan release screws two full revolutions, DO NOT REMOVE. Remove the sticker from the cover end opening hole. Insert the “tool pin”...
