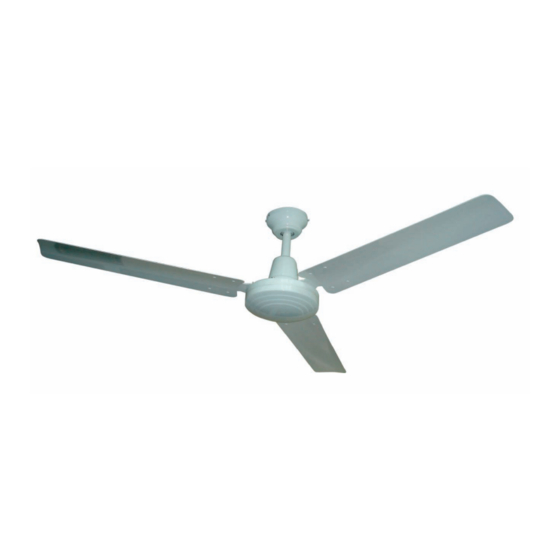

Industrial ceiling fan
Hide thumbs
1
2
3
4
5
6
7
Table of Contents

Advertisement

Quick Links

Download this manual
User's manual
Customer Service
US: 1-800-645-2986
Manual del usuario
Servicio de atención al Cliente
US: 1-800-645-2986
Industrial Ceiling Fan
Product Description
Model(s): ######
Model: 293103 293104
READ AND SAVE THESE
INSTRUCTIONS
1
Manuel de l'utilisateur
Service à la clientèle
Canada: 888-645-2986
MODEL #

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 293103 and is the answer not in the manual?

Questions and answers

Related Manuals for Global Industrial 293103

Summary of Contents for Global Industrial 293103

  • Page 1 Manual del usuario Manuel de l'utilisateur Customer Service Servicio de atención al Cliente Service à la clientèle US: 1-800-645-2986 Canada: 888-645-2986 US: 1-800-645-2986 Industrial Ceiling Fan Product Description Model(s): ###### Model: 293103 293104 READ AND SAVE THESE INSTRUCTIONS MODEL #...

  • Page 2: Tools And Supplies

    Spring Washer expected power application. Wiring Cap 6. Check that power source conforms to electri Speed Control cal requirements of fan. #6-32 3/4” Screw #6-32 5/16” Screw Product Specification Model 293103 293104 Voltage(V) Frequency(Hz) Wattage(W) AMPS(A) 0.88 0.91 Airflow(CFM) 8350...
  • Page 3 User’s Manual Industrial Ceiling Fan Assembly Instructions Before Mounting To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before hanging. (Figure 1) NOTE: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice, as it must be grounded for safe operation.

  • Page 4: Installing The Mounting Bracket

    User’s Manual Industrial Ceiling Fan Deep box with brace (Figure 6) CEILING JOIST Paired with a deep box, this hanger is meant to Span between two joists and takes the place of wooden blocking. CEILING OUTLET BOX (Not Included） Figure 5 Installing the mounting bracket 1.

  • Page 5: Attaching The Canopy

    User’s Manual Industrial Ceiling Fan Attaching the canopy 1. Align the locking slots of the ceiling canopy (C) with the two screws in the mounting bracket (3). Push up to engage the slots, and turn clockwise to lock the canopy (C) in place. 2.

  • Page 6: Operation

    User’s Manual Industrial Ceiling Fan Operation Maintenance Turn on the power and check operation of fan. 1. Because of the fan’s natural movement, The wall control the fan speeds as follows: some connections may become loose. 0 - off; 1 - high; 2 - medium high; 3 - medium; 4 - low. Check the support connections, brackets, Speed settings for warm or cool weather depend on and blade attachments twice a year.
  • Page 7 User’s Manual Industrial Ceiling Fan TROUBLE SUGGESTED REMEDY 1. Check main and branch circuit fuses or circuit breakers. 2. Check wire connections as explained on page 5 of this manual. CAUTION: Make sure main power is turned off. 3. Make sure forward/reverse switch is firmly in the correct position. If fan does not start: Fan will not operate when switch is in the middle.
