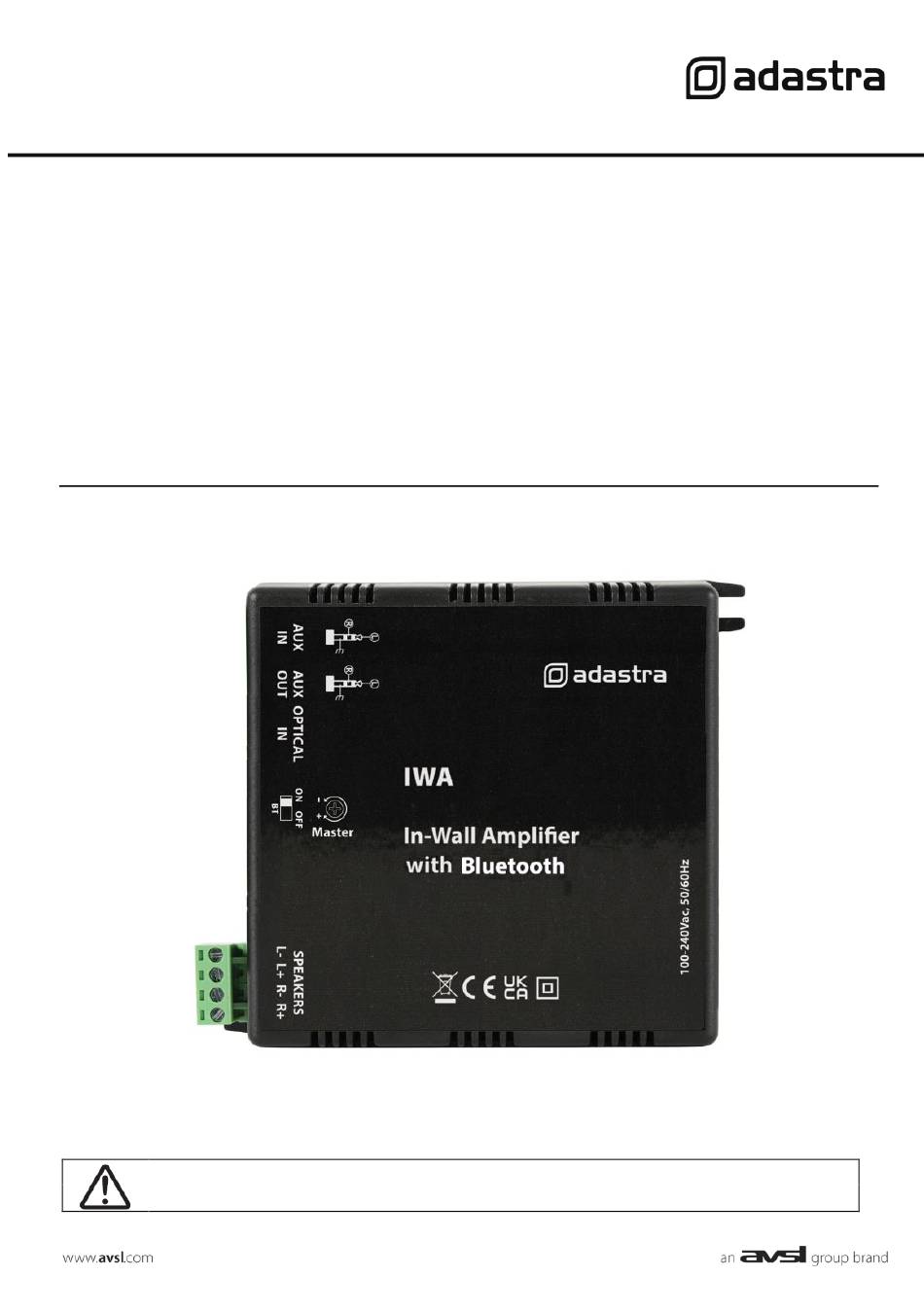

- Page 1 IWA-series In-wall Amplifier with Bluetooth IWA215B 953.081UK IWA230B 953.083UK IWA415B 953.085UK User Manual Version 1.0 Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...
- Page 2 Introduction Thank you for choosing an Adastra IWA-series in-wall amplifier for your discreet audio installation. This unit is designed to power wall or ceiling mounted speakers and receive audio via Bluetooth, optical or aux input. Please read this manual to gain the best results from your product and avoid damage through misuse.

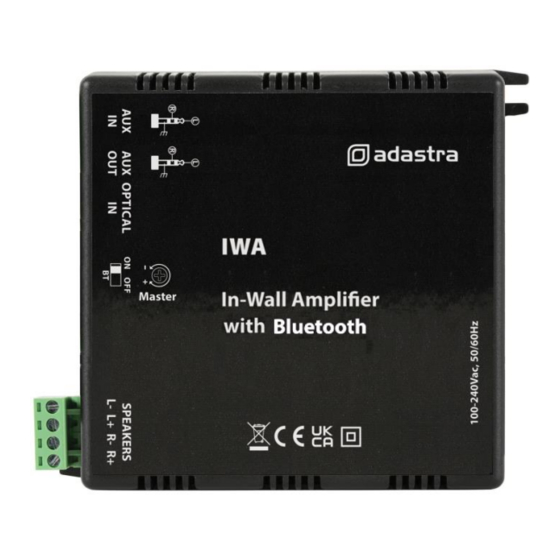

- Page 3 Connections 1. 3.5mm stereo AUX input 2. 3.5mm stereo AUX output 3. Optical audio input 4. Bluetooth on/off & Master volume 5. Secondary Speaker outputs (IWA-415B only) 6. Left + Right Speaker outputs 7. Fig.8 mains power inlet Installation Locate the IWA-series amplifier in the ceiling, wall or on the surface required. Tabs at each end of the housing can be used for securing with screws.
- Page 4 Operation The Master volume control (4) can be adjusted using a small screwdriver, with fully anti-clockwise being the minimum setting and fully clockwise being the maximum output. When first checking the system, it is safest to start with the volume fully down before powering up and gradually increase until the required volume is reached.
