Summary of Contents for Adastra IW30

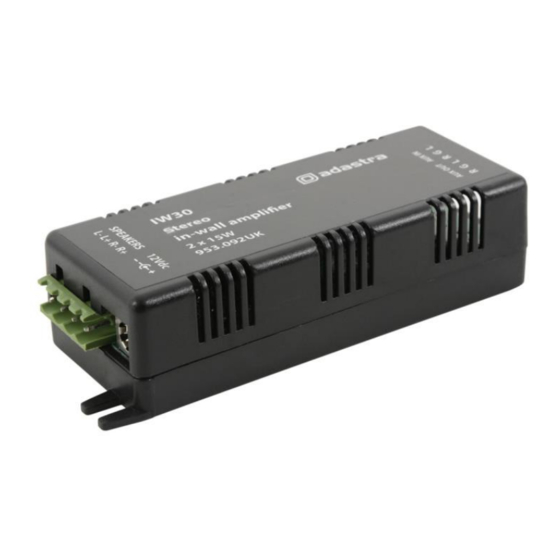

- Page 1 IW30 / IW60 In-wall Stereo Amplifier Item ref: 953.092UK, 953.094UK User Manual Version 1.0 Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...
- Page 2 Introduction Thank you for choosing the Adastra IW30 / IW60 in-wall amplifier for your discreet audio installation. This unit is designed to power wall or ceiling mounted speakers from a stereo line input. Please read this manual to gain the best results from your product and avoid damage through misuse.
- Page 3 Connections Installation Locate the amplifier unit in the ceiling, wall or on the surface required. Tabs at each end of the housing can be used for securing with screws. Connect speakers using the supplied wires or equivalent by connecting “+” and “-” on the speaker to the relevant connection on the amplifier unit.
- Page 4 Power down the amplifier when not in use and isolate from the mains if not used for long periods of time. Specifications Output: rms @ 4Ω IW30: 2 x 15W IW60: 2 x 30W Power supply 12Vdc, 2000mA (adaptor included) Minimum impedance 4Ω...
