PRODUCT NO.
BASE MODEL NO.
FGF326ASC
FGF326A
SERVICE DATA SHEET - # 316259145
WIRING DIAGRAM - #316255201
OWNER'S GUIDE - # 316257509
INSTALLATION INSTRUCTIONS -# 316259315
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
COLOR
MARKET
white
North America
Publication No.
5995377065
020819
-EN/SERVICE /ECL
369
FACTORY
PARTS CATALO

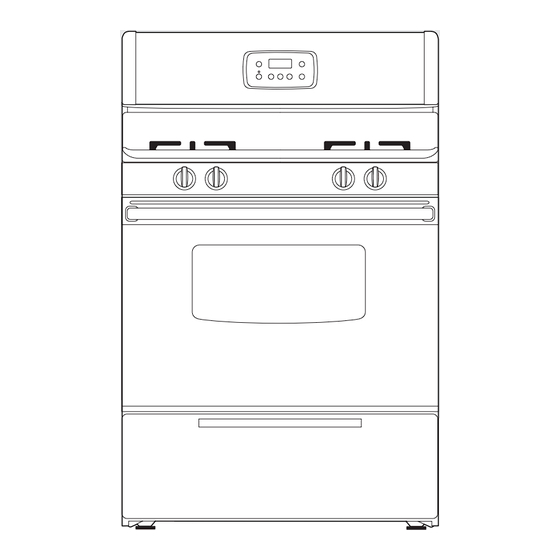

GAS
RANGE
Model No.
FGF326A
©2002 Electrolux Home Products, Inc.
All rights reserved
G
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Frigidaire FGF326A
Summary of Contents for Frigidaire FGF326A
- Page 1 PRODUCT NO. BASE MODEL NO. FGF326ASC FGF326A SERVICE DATA SHEET - # 316259145 WIRING DIAGRAM - #316255201 OWNER’S GUIDE - # 316257509 INSTALLATION INSTRUCTIONS -# 316259315 ELECTROLUX HOME PRODUCTS, INC. P.O. Box 212378, Augusta, GA 30917 COLOR MARKET white North America Publication No.
- Page 2 Publication No. FGF326ASC 5995377065 BACKGUARD 08/02...
- Page 3 POS. NO 20 # 24 # # = Fast-moving Parts * = Non-Illustrated Parts FGF326ASC BACKGUARD PART NO DESCRIPTION 316239900 Shield,backguard ,rear wall 316220214 Support,backguard ,white ,RH 316220215 Support,backguard ,white ,LH 316240900 End Cap,white ,RH 316240901 End Cap,white ,LH 316246600 Panel,backguard ,white 316222802 Clock/Timer,electronic...
- Page 4 Publication No. FGF326ASC 5995377065 BURNER 08/02...
- Page 5 POS. NO 2C # 10C# 11B# 11C# 13 # 14 # 16 # 17 # 18 # 19 # # = Fast-moving Parts * = Non-Illustrated Parts FGF326ASC BURNER PART NO DESCRIPTION 316204000 Pipe,manifold 5303935213 Valve,9.5K top burner ,w/mtg screw 316134300 Screw,10-24 ,valve mounting 316219000...
- Page 6 Publication No. FGF326ASC 5995377065 BODY 08/02...
- Page 7 POS. NO 37 # 39 # 170* 170* 170* # = Fast-moving Parts * = Non-Illustrated Parts FGF326ASC BODY PART NO DESCRIPTION 316029416 Panel,main back 316230114 Panel,bodyside ,white ,RH 316230115 Panel,bodyside ,white ,LH 316021131 Screw,bodyside ,8-18 X 11/16 ,white 316201402 Burner Box 316129200 Screw,leveling ,plastic ,with stop...
- Page 8 Publication No. FGF326ASC 5995377065 TOP/DRAWER 08/02...
- Page 9 POS. NO # = Fast-moving Parts * = Non-Illustrated Parts FGF326ASC TOP/DRAWER PART NO DESCRIPTION 316110201 Carriage,low broil 316236401 Liner,low broil 316110800 Shield,broiler 316237600 Shield,low broil ,top 316231211 Panel,drawer ,white 316129100 Fastener,push-in nut ,nylon ,spacer 316081900 Pan,broiler 316082000 Insert,broiler pan 316111502 Glide,low broil ,chassis 316111600...
- Page 10 Publication No. FGF326ASC 5995377065 DOOR 08/02...
- Page 11 POS. NO # = Fast-moving Parts * = Non-Illustrated Parts FGF326ASC DOOR PART NO DESCRIPTION 316050307 Glass,oven door ,white ,outer 316222709 Shield,oven door ,wool 316236801 Insulation,oven door 316088600 Glass,oven door ,inner 316230604 Liner,oven door 316001014 Screw,waf hd sq ,10-24 x 1.6 ,handle ,(2) 316008401 Washer,3/4 OD x 1/4 ID ,steel 316239700...
-
Page 12: Wiring Schematic
Publication No. FGF326ASC 5995377065 WIRING SCHEMATIC 08/02... -
Page 13: Wiring Diagram
FGF326ASC Publication No. 5995377065 WIRING DIAGRAM # = Fast-moving Parts 08/02 * = Non-Illustrated Parts...
Need help?
Do you have a question about the FGF326A and is the answer not in the manual?
Questions and answers
The stove is hooked up and plugged in the burners light and work but the oven won't turn on how should I go about getting the oven to work?
To troubleshoot the oven not turning on for a Frigidaire FGF326A stove:
1. Check if the stovetop and broiler work – If they do, the gas supply and ignition system are likely working.
2. Inspect the oven igniter – If the oven won’t light but the igniter glows, it might not be drawing enough current (must draw about 3 amps) to open the gas valve. If it's only drawing around 2.6 amps, it needs replacement.
3. Replace the igniter – Order the correct OEM igniter (e.g., Frigidaire 5303935066), and follow installation instructions.
4. Use ceramic wire nuts – When wiring the new igniter, use ceramic wire nuts because plastic ones can melt due to high heat.
5. Keep the old igniter – You may need parts of it to wire the new igniter properly.
This process usually takes less than 20 minutes.
This answer is automatically generated
