Harman AMX MSD-701-L2 Quick Start Manual

Overview

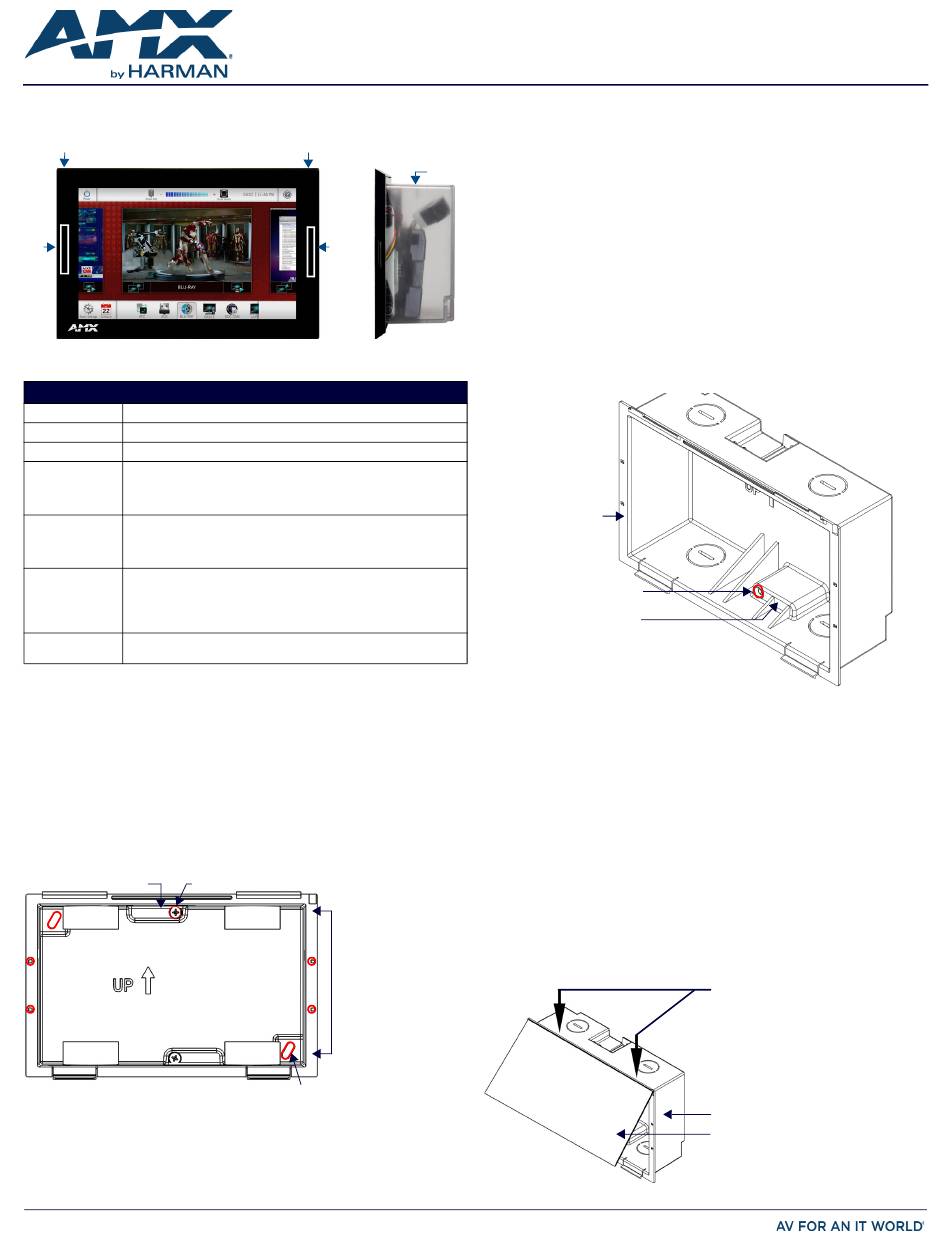

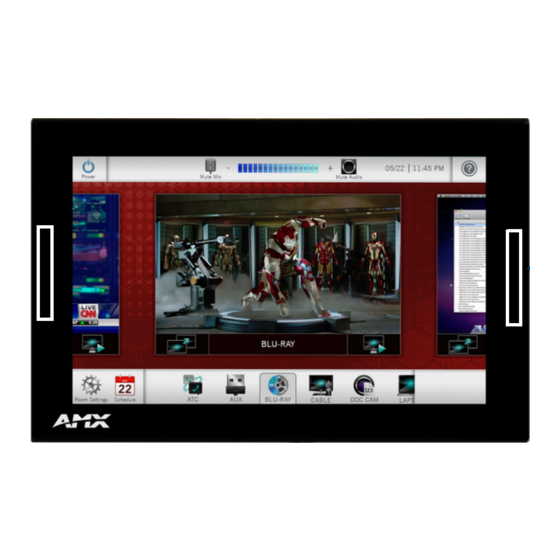

The MSD-701-L2 Landscape Wall Mount Touch Panel (FG2265-32) feature brilliant 24-bit
color depth, PoE connectivity, and streaming video (FIG. 1).
Sleep Button
Left
LED
MSD-701-L2
FIG. 1
Product Specif ications
MSD-701-L2 SPECIF ICATIONS
Dimensions (HWD) 4 7/8" x 7 3/8" x 2 1/4" (123.9mm x 187.5mm x 58mm), with Backbox
Weight 1.05 lbs (.680 Kg), with Backbox / 0.8 lbs (.363 Kg), without Backbox
Power Consumption Full-On: 11W, Typical: 7.5W, Standby: 4.5W, Shutdown: 0.7W
External Power Optimal performance requires use of one of the following AMX PoE power
Supply Required supplies (not included):
• PS-POE-AF-TC, PoE Injector, 802.3AF Compliant (FG423-83)
• NXA-ENET8-2POE, Gigabit PoE Ethernet Switch (FG2178-63)
Certifications • FCC Part 15 Class B
• CE EN 55022, 55024
• C-Tick CISPR 22 Class B
• IEC/EN/UL 60950-1
Environmental • Temperature (Operating): 32°F to 104°F (0°C to 40°C)
• Temperature (Storage): 4°F to 140°F (-20°C to 60°C)
• Humidity (Operating): 20% to 85% RH
• Humidity (Storage): 5% to 85% RH
• Power ("Heat") Dissipation: On: 27.3 BTU/hr, Standby: 10.9 BTU/hr
Included • MSD-701-L Wall Mounting Template (68-2265-02)
Accessories: • Backbox, Wall Mount, 7" (60-2265-39)
MSD-701-L2 Installation
The MSD-701-L2 can be installed via several mounting options: Use the included clear plastic
Backbox to attach the panel to most standard wall materials. Other optional AMX mounting
solutions include the MSA-MMK2-07 Multi Mount Kit (FG2265-22), the MSA-AMK2-07 Any
Mount Kit (FG2265-35), and the CB-MXSA-07 Rough-In Box and Cover Plate (FG039-18).
Refer to the Quick Start Guide included with each mounting kit for instructions.
Power Over Ethernet (PoE)
Power for the MSD-701-L2 is supplied via PoE, utilizing an AMX-certified PoE injector such as
the PS-POE-AF-TC PoE Injector (FG423-83). The incoming Ethernet cable should be
connected to the RJ-45 port on the MSD-701-L2.
Plastic Backbox
The MSD-701-L2 comes with a clear plastic Backbox (FIG. 2). This Backbox can be used to
mount the touch panel into most standard wall materials. The Backbox can also used to mount
the panel into other mounting options.
Locking Tab (X2) Locking Tab screw (x2)
Mounting holes for installing the Backbox into a Rough-In Box (screws not included)
FIG. 2 7" MODERO S BACKBOX (FRONT VIEW)
MSD-701-L2
Microphone
Backbox
Right
LED
(side view)
• CISPR 22 Class B
• RoHS
• WEEE
Mounting holes (X4)
for use with mounting
screws (not included)
Use these mounting holes
to install the Backbox into
thin walls (less than 0.5"
thick) or solid surfaces
7" Modero S Series Wall Mount Touch Panel
STEP 1: Install the Plastic Backbox
Use the included Installation Template to determine the placement of the Backbox in the
mounting surface. The outside edges of the template are the same dimensions as the touch
panel, which allows you to troubleshoot possible conflicts with wall edges, doors, and other
potential obstacles.
1. After ensuring proper placement, cut an opening in the mounting surface for the
Backbox, using the included Installation Template as a guide.
Note: Consider making the actual cutout opening slightly smaller than the provided
dimensions. This provides a margin of error if the opening needs to be expanded. Too little
wall material removed is always better than too much.
2. Thread the incoming cables (Ethernet and Micro-USB) from their terminal locations
through the surface opening, leaving enough slack in the wiring to accommodate any re-
positioning of the panel.
3. Remove the Backbox knockouts and thread incoming cables through the knockouts.
4. Gently push the Backbox into the mounting surface.
• This Backbox uses two Locking Tabs to secure the Backbox to the wall. For typical
mounting surfaces, such as drywall, the locking tabs are the primary method for
securing the Backbox to the wall.
• To ensure a stable installation, the thickness of the wall material must be a minimum of
.50 inches (1.27cm) and a maximum of .875 inches (2.22cm). The mounting surface
should also be smooth and flat. For thin walls or solid surfaces, use mounting screws
(not included) - see FIG. 2.
5. Extend both Locking Tabs by tightening the Locking Tab screws until snug (FIG. 3):
7" Wall Mount Backbox
Locking Tab screw (x2) - tighten to
extend both of the Locking Tabs
(max torque = 5 IN-LB)
Locking Tab (x2)
FIG. 3 7" (L2) BACKBOX - LOCKING TABS AND LOCKING TAB SCREWS
CAUTION: The maximum recommended torque to screw in the locking tabs on the plastic
Backbox is 5 IN-LB [56 N-CM]. Excessive torque on the tab screws can strip out the
locking tabs or damage the Backbox.
• Extend the Locking Tabs only AFTER the Backbox is inserted into the wall.
• When installing the Backbox, make sure that it is positioned correctly.
• The Backbox is clear to allow visual confirmation that the tabs have been extended and
are gripping the wall, as well as in assisting with removal if necessary.
STEP 2: Insert Connectors on the Touch Panel
1. Before installing the touch panel into the Backbox, connect the Ethernet and USB cables
to the rear of the panel.
2. Remove power at the terminal end before continuing with the installation.
Note: Do not disconnect the connectors from the touch panel. The unit must be installed
with the attached connectors before being inserted into the mounting surface.
STEP 3: Secure the Touch Panel To the Backbox
The Backbox uses notches on the front edges (top and bottom) to secure the panel into place.
Follow the steps below to install the panel into the Backbox, starting the upper edge of the
touch panel:
UPPER TABS FIRST
1. Center the top edge of the touch panel against the upper outside edge of the Backbox
and latch the top of the panel onto the Backbox top-hooks (FIG. 4):
FIG. 4 ENGAGING THE TOP EDGE OF THE PANEL WITH THE TOP HOOKS ON THE BACKBOX
QUICK START GUIDE
Use the top-hooks on the top edge of the
Backbox to latch the top of the touch
panel into place
Plastic Backbox
MSD-701-L2 Touch Panel
