GAS COOKTOP INSTALLATION INSTRUCTIONS
(For Models with 4 Sealed Burners, Tempered Glass Cooktops or Porcelain Enamel Cooktops)
INSTALLATION AND SERVICE MUST BE PERFORMED BY
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
If the information in this manual is not followed exactly, a fire or explosion may result
causing property damage, personal injury or death.
FOR YOUR SAFETY:
— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any phone in your building.
•
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
•
If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
MODEL
A. LENGTH
36" Cooktop 36 (91.5 cm)
* Includes a 5" (12.7 cm) space underneath the cooktop for connection to gas supply line.
Recycled paper
A QUALIFIED INSTALLER.

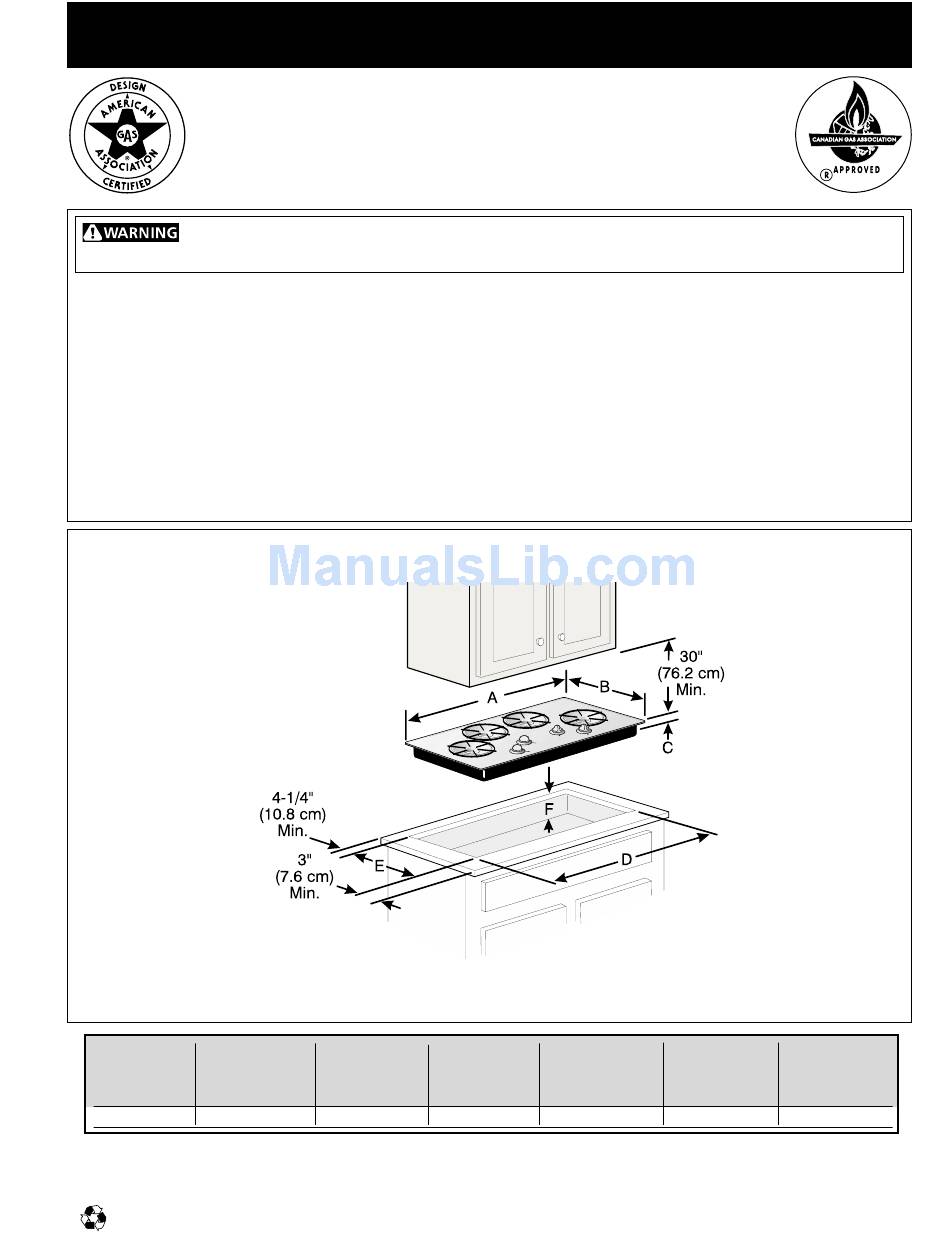

Cooktop and Cutout Dimensions
Figure 1
B. WIDTH
C. DEPTH
5
18 (45.7 cm)
3
(8 cm)
/
32
1
Printed in Canada
*
CUTOUT
CUTOUT
DIMENSIONS
DIMENSIONS
D. LENGTH
E. WIDTH
1
3
34
(8.7 cm) 16
(42.5 cm) 8
/
/
4
4
P/N 318063905 (9604) Rev. A
* 30" (76.2 cm) min. for
unprotected cabinet
24" (61 cm) min. for
protected surface
F. DEPTH
BELOW
COOKTOP*
1
(21 cm)
/
4
