8. If desired, connect the USB, GPIB, or Ethernet connectors to the Host PC or equivalent.
9. If desired, connect the appropriate BNC connectors to external equipment to provide an external 10
MHz reference.
10. If desired, connect the 10 MHz reference input to external equipment.
11. If desired, connect the appropriate BNC connectors to external equipment to provide trigger functions.
12. Press the front panel power switch to the "ON" (labeled 1) position.
13. It is recommended that the user allows a minimum of 30 minutes warm-up time before using the
instrument.
14. Verify the unit is powered on by monitoring the front panel LCD display.
15. Using either the Front Panel Controls or the peripheral interfaces, control the operation of the SG.

5.2 Hardware Interfaces

The front panel of the unit contains a multi-function rotary knob, an RF Standby switch, power On/Off
switch, LCD display, and the connector for the RF output. See figure 2 for a view of the front panel. The
rear panel of the unit contains the connectors for the External Reference Input, Reference Output, Trigger
In, Trigger Out, DC power, GPIB, Ethernet, and USB interface. See figure 3 for a view of the rear panel.

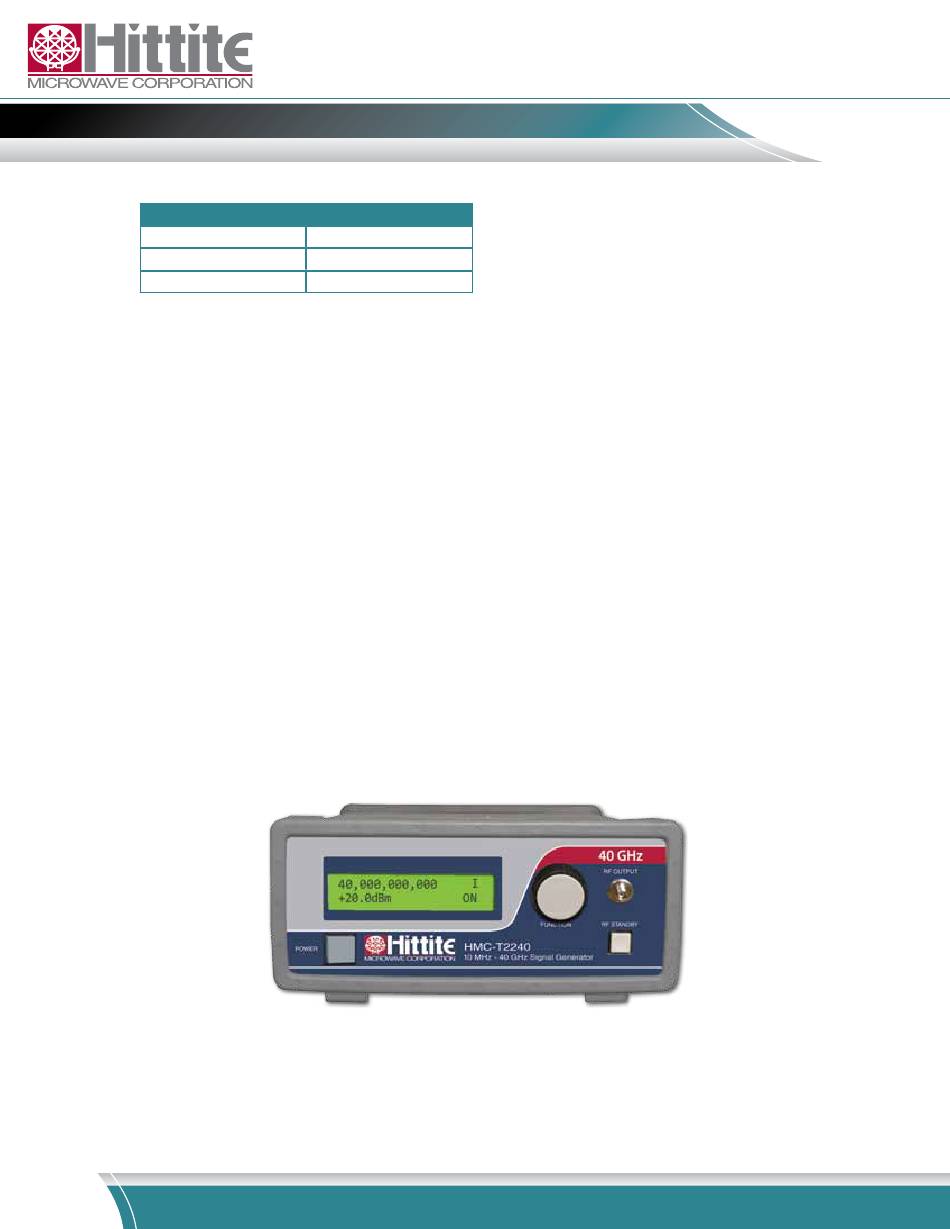

Figure 3. Front Panel View (Front panel may be labeled differently per unit)
8
Order On-Line: www.tm-hittite.com. For technical application questions: Phone: 978-250-3343 or TE@hittite.com
Connector
SMA (F)
2.92 mm (F)
1.85 mm (F)
Table 2. RF Connectors
