Related Manuals for Love N Care Traversina Sleeper
Summary of Contents for Love N Care Traversina Sleeper

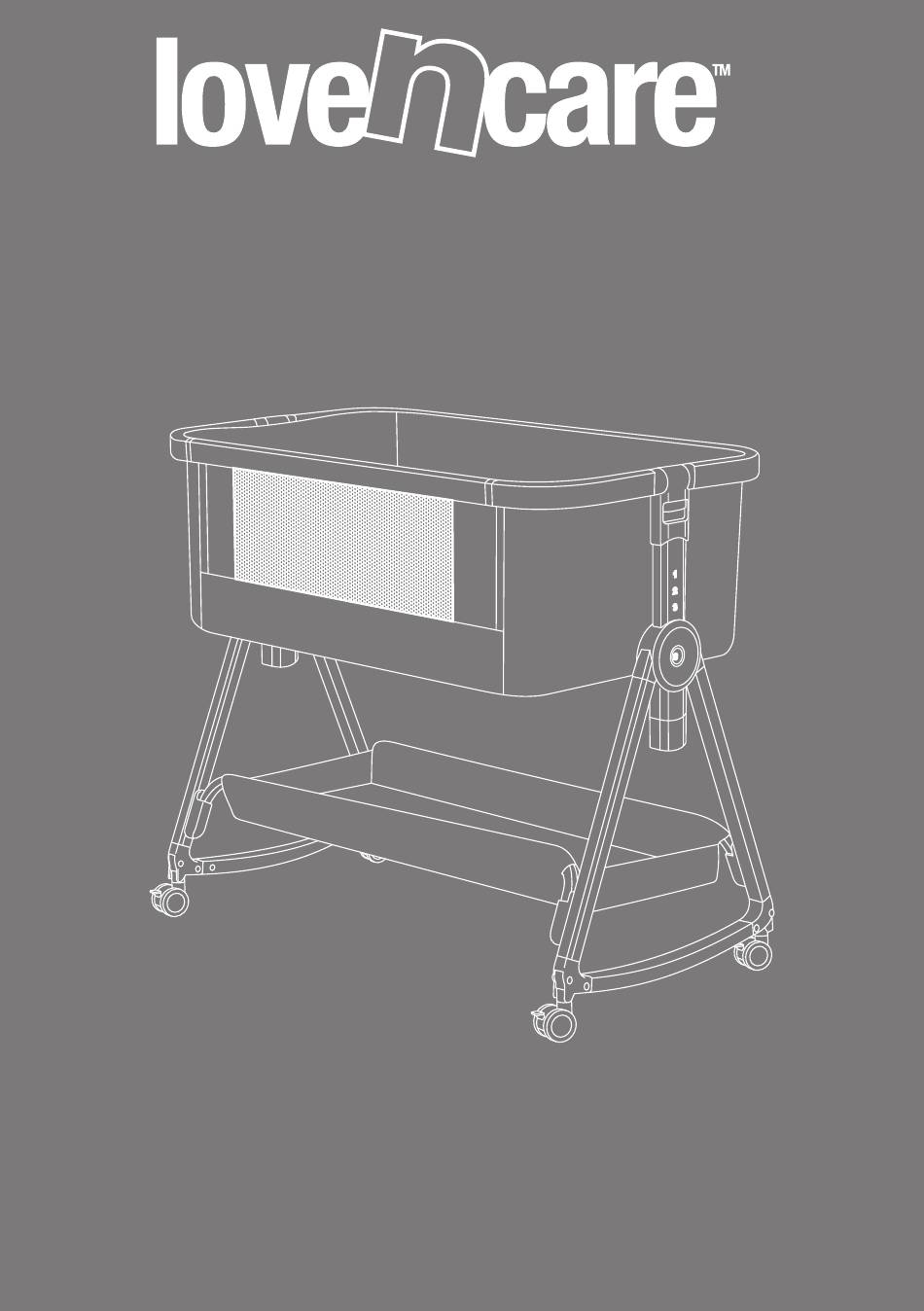

- Page 1 Traversina Sleeper HK 931 INSTRUCTION MANUAL PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 2 Congratulations on purchasing your new Co-Sleeper. In almost no time you should be able to have this one of kind co-sleeper ready to meet your beautiful child :) Please take a few moments to read this instruction manual on how to assemble and use your co-sleeper correctly so you can rest assured that your little one is sleeping safe and Secure.
- Page 3 WARNING RETAIN FOR FUTURE REFERENCE. READ CAREFULLY BEFORE ASSEMBLING AND USING THE PRODUCT WARNING: Do not use this product without reading the instructions for use first. WARNING: Stop using the product as soon as the child can sit or kneel or pull itself up. WARNING: Placing additional items in the product may cause suffocation.
- Page 4 Before using in ‘’Co-sleeping mode’’ (Fixed to the bed)’’ make sure the product is properly anchored and positioned. The product must always be placed on a horizontal surface. Never leave the product on an inclined surface with the child inside of it. WARNING: When the product is used in ‘’Co-sleeping mode’’...
- Page 5 1. Bed Frame Contents 2. Bottom Tube 3. Storage Basket 4. Mosquito Net 5. Fixing Belt The illustrations in this instruction manual are used to indicate how to operate the product. All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
- Page 6 Unfold the Bed Frame 1. Please turn the Foot Tube of the bed to the outside 2. Turn the foot tube to the point where it is vertically upright (as shown in image) Using the Brakes To enable the brakes push down on To disable the brakes lift the lever upwards the lever on the wheels on the bottom to move the Sleeper.
- Page 7 As shown in the image, insert the basket into the foot tubes seperately. You should hear a “click”sound indicating they are locked into place. Installing the bottom bracket 1. Place the two feet of the bottom bracket to the hole on the foot tubes, under the height adjustment rods.
- Page 8 Opening the side frame Open the Side Frame 1. Press the two detach buttons under the side fram at the same time. 2. Detach the buckle and zipper protector 3. Unzip the 2 zippers on each end. 4. Lift the detached frame up and turn it downward. Ensure your baby is not inside the crib when you detach the crib from your bed frame.
-
Page 9: Height Adjustment
Height Adjustment 1. Press the adjustment button to adjust the height on 6 positions. 2. The number marking on the hole shows the gear position. The Height difference between the head end and foot end of your sleeper should be no more than 5cm (2 inches) 1.Place the sleeper in a suitable position next to the bed and enable the brakes on the four wheels. - Page 10 Attaching to the Bed When using the fixed belt, it must be at the same height as the bed board 1. Place the bedside sleeper in a suitable position next to the bed and enable all 4 brakes. 2. Adjust the height to be level with the bed. 3.
- Page 11 Cradle Mode Pull down the four wheels on the sleeper then push them upwards, This will convert the sleeper into a rocking cradle. Installing the Mosquito net As shown in the image, fasten the buttons on both sides of the mosquito net to the inside of the bed frame, then cover the mosquito net to both ends of the bedrail.
- Page 12 Removing fabric 1. Detach the buckle on the zipper protector. 2. Remove the fabric cover by unzipping along the top edge of the bed frame. Page 11...
-
Page 13: Care And Maintenance
Care and Maintenance For washing of the fabric, carefully comply with instructions indicated on the label. - for cleaning, do not use solvents, abrasive or aggressive products. - all assembly fittings should always be tightened properly and that care should be taken that no screws are loose, because a child could trap parts of the body or clothing (e.g. -
Page 14: Warranty Against Defects
Love N Care will meet the reasonable expenses incurred by a consumer in a making a warranty claim. You can claim expenses incurred in making a claim by contacting our customer service team on 1300 732 599 or by email at info@lovencare.com.au 12 MONTH WARRANTY HK 931 TRAVERSINA SLEEPER... - Page 15 Contact Us Head Office: Love N Care Pty Ltd. 297-299 Canterbury Rd, Revesby NSW 2212 Australia Contact No: 02 9774 4655 Fax: 02 9774 4633 Email: info@lovencare.com.au Website: www.lovencare.com.au www.lovencare.com.au https://www.instagram.com/lovencare/...
