Summary of Contents for Blue Sky Network SKYLINK

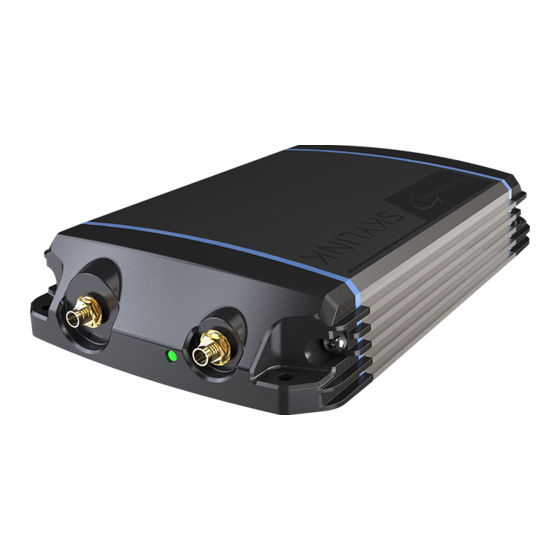

  • Page 2 Top Panel: Bottom Panel: Iridium antenna connector Cellular antenna Power LED light Power port Cellular antenna connector Connectivity port...
  • Page 3 Screw the cellular antenna to the cellular antenna connector on the Data Gateway. Screw the Iridium antenna, or the Iridium antenna cable connector, to the Iridium antenna connector on the Data Gateway. The Blue Sky Network Iridium antenna may be one of three antennas: 1.
  • Page 4 See the SkyLink Installation Guide for more antenna and device requirements IMPORTANT! Ensure SkyLink is installed with the satellite antenna pointing skyward and there is a maximum of 8.2⁰ obstruction from ground-based obstacles. Especially obstacles on the North/South axis.
  • Page 5 SkyLink Web Interface (WI) will appear. Default username and password: admin STEP 3: ENABLE BASIC SETTINGS In the SkyLink WI, navigate to the following screens to make these standard device configurations. Remember to press ‘Save’ on each screen after making changes.
  • Page 6 Firewall • Firewall Profile > Unrestricted, or set to preference General Settings • SkyLink > Data Routing: Cellular then Satellite • Satellite > Satellite Enabled: ON • Satellite > Data Enabled: ON • Cellular > Enter GSM SIM APN setting for your network provider After configuring the above settings on each screen, press ‘Save’...
  • Page 7 STEP 4: CONNECT TO THE ONLINE PORTAL To remotely manage a fleet of devices, use the SkyLink Online Portal. In a web browser type https://portal.skylink.net/login into the address bar, press enter, then sign in to your account. NOTE: Resellers will receive their login information from their account manager.
  • Page 8 SKYLINK-QUICK-START-GUIDE-V2.0 For customer use only. Not intended for further distribution.
