- Page 1 Bolt Panel Antenna Version 4 Quick Start Guide...
- Page 2 PHYSICAL PROPERTIES A: 2dBi Omnidirectional antenna B: RP-SMA connectors (horizontal) C: RP-SMA connectors (vertical) D: Battery plate E: Yoke assembly F: 3/8” Light stand adapter...
- Page 3 TABLE OF CONTENTS Teradek Bolt Panel Antenna v.4 ..2 Power and Connect ......3 Antenna Receive Pattern ....4 Mounting ........5...
-
Page 4: Teradek Bolt Panel Antenna V.4

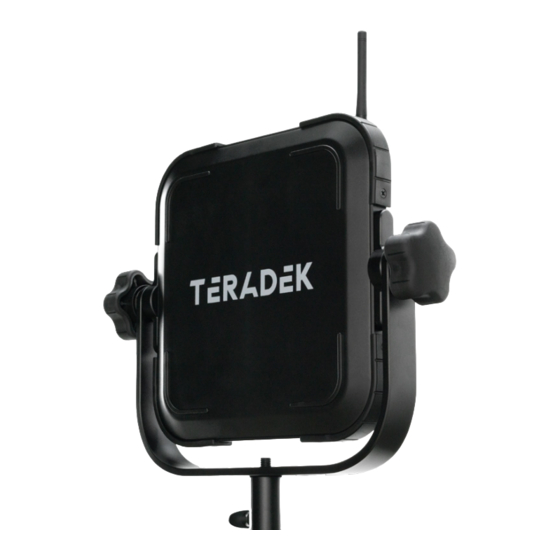

TERADEK BOLT PANEL ANTENNA V.4 The Bolt Panel Antenna v.4 is your go-to solution for cutting through wireless interference in crowded environments. When attached to a Bolt 4K receiver, the antenna provides an extremely robust, directional signal that will ensure your transmission arrives uninterrupted. -
Page 5: Power And Connect
POWER AND CONNECT Connect the output from your video source to either the SDI or HDMI input on the transmitter. Attach antennas to the transmitter. Mount the receiver to the back of the Panel Antenna. Mount the receiver to the back of the antenna, then connect the five RP-SMA connectors to the center connectors labeled V using the included extension cables. -
Page 6: Antenna Receive Pattern
ANTENNA RECEIVE PATTERN The Bolt Panel Antenna has a built-in directional antenna with a receive pattern that varies based on its distance from the transmitter. The horizontal receive angle measures 55° at 5,000 ft (1.5 km), 104° at 4,000 ft (1.25 km), and is effectively omni directional at up to 500 ft (150 m). The vertical receive angle measures 20°... -
Page 7: Mounting
MOUNTING The Bolt Panel Antenna has three 3/8” threaded holes: One on the bottom for mounting the included light stand adapter or any 3/8” mounting accessory, and one on each side to mount to a yoke mount bracket assembly. • Mount the Panel Antenna vertically, keeping it clear of any obstructions. - Page 8 Teradek regularly releases new firmware versions to improve performance, add features, or fix vulnerabilities. teradek.com/pages/downloads contains all the latest firmware and software updates. Visit teradek.com/contact for tips, information, and to submit help requests to Teradek’s support team.
- Page 9 © 2021 Teradek, LLC. All rights reserved.
