- Page 1 1000/3000 RX and TX Quick Start Guide...

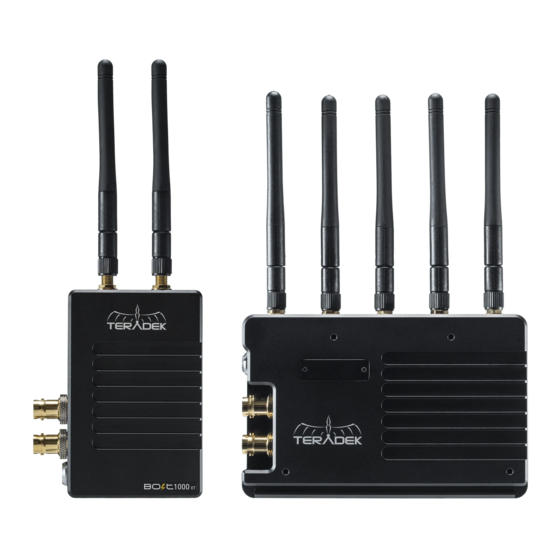

- Page 2 PHYSICAL PROPERTIES Bolt 1000/3000 XT - TX RP-SMA connectors Bolt 1000/3000 XT - RX Power status LED Video status LED Link status LED Fault LED HDMI input 3G-SDI output 3G-SDI input Power input Power switch Mini-USB Reset button Menu joystick OLED display NATO rail...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Power and Connect ......2 Device Operation ........2 Bolt Connector/Pin-Out ...... 3 Custom 3rd Party Cables ..... 3 Mounting ..........4 Display Operation ........ 5 Bolt Manager ........7... -
Page 4: Power And Connect
POWER AND CONNECT (H or F) Connect the output from your video source to either the SDI or HDMI input on the Bolt (G or F) transmitter. Connect either the SDI or HDMI output from the Bolt receiver to the video input on your monitor. -
Page 5: Bolt Connector/Pin-Out
BOLT CONNECTOR/PIN-OUT Bolt uses a 2−pin power connector Description * Pin 1 is closest to the red dot on the connector CUSTOM/THIRD PARTY CABLES • Test the power cable polarity with ONLY the power cable connected to Bolt. Do not connect video cables. •... -
Page 6: Mounting
MOUNTING Bolt has a 1/4”-20 threaded hole on the bottom for mounting the included light stand adapter or any other mounting accessory. • Mount the Bolt transmitter vertically, keeping the Bolt XT receivers can be mounted antennas clear of any obstructions. vertically on a light stand or monitor. -
Page 7: Display Operation
DISPLAY OPERATION Receiver Status Screens - Cycle through status screens or return from the menu by pressing the Menu joystick (M). • Main Status Screen - This screen displays the status of the wireless receiver, along with the current video resolution, frequency, link quality (if connected). •... - Page 8 • Video OSD Settings - Choose when to display the OSD. By default, the OSD is displayed when no video is received. Selecting the Never show option disables the OSD. The Show when operating option hides the OSD until it is activated by the joystick. Selecting Show when no video will display the OSD when there is no video feed, and will hide OSD when video appears (default).
-
Page 9: Bolt Manager
Bolt Manager allows you to configure, pair, and upgrade your Bolt device. Bolt Manager is available as software for Mac and Windows at www.teradek.com/pages/downloads, or for purchase as a standalone device. NOTE: Available configuration settings will differ between Bolt models. - Page 10 Teradek regularly releases new firmware versions to improve performance, add new features, or to fix vulnerabilities. Visit teradek.com to update your device with the latest firmware. NEED MORE HELP? SUPPORT: http://support.teradek.com → Contains tips, information and all the latest firmware & software updates.
- Page 11 © 2019 Teradek, LLC. All rights reserved. v 1.5...
