Teradek BOLT4K Quick Start Manual

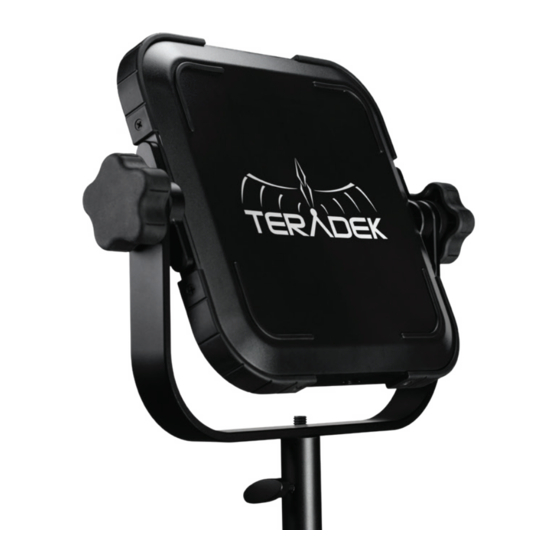

Array antenna

ARRAY ANTENNA

Quick Start Guide

Table of Contents

Need help?

Do you have a question about the BOLT4K and is the answer not in the manual?

Page 1 ARRAY ANTENNA Quick Start Guide...
Page 2 PHYSICAL PROPERTIES RP-SMA connectors (vertical) RP-SMA connectors (horizontal) Battery plate Yoke assembly 3/8” Light stand adapter...
Page 3 TABLE OF CONTENTS Power and Connect ......2 Antenna Receive Pattern ....3 Mounting ..........4...
Page 4 POWER AND CONNECT Connect the output from your video source to either the SDI or HDMI input on the transmitter. Attach antennas to the transmitter. Mount the receiver to the back of the Array Antenna. Connect the five RP-SMA connectors on the receiver to the center connectors labeled “V” on the Array Antenna using the included RP-SMA extension cables.
Page 5 ANTENNA RECEIVE PATTERN The Array Antenna has a built-in directional antenna with a receive pattern that varies based on its distance from the transmitter. The horizontal receive angle measures 55° at 5,000 ft (1.5 km), 104° at 4,000 ft (1.25 km), and is effectively omni directional at up to 500 ft (150 m). The vertical receive angle measures 20°...
Page 6 • Orient the transmitter and receiver so they are parallel to each other. • For best results, orient the Array Antenna so the front (with the Teradek logo) has a clear line−of−sight to the transmitter. • DO NOT OVERTIGHTEN SCREWS CAUTION: INSERTED INTO THE RECEIVER’S...
