TURBO HD
4K Series VF
Bullet & Turret & Dome
Camera
User Manual
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Type
Model

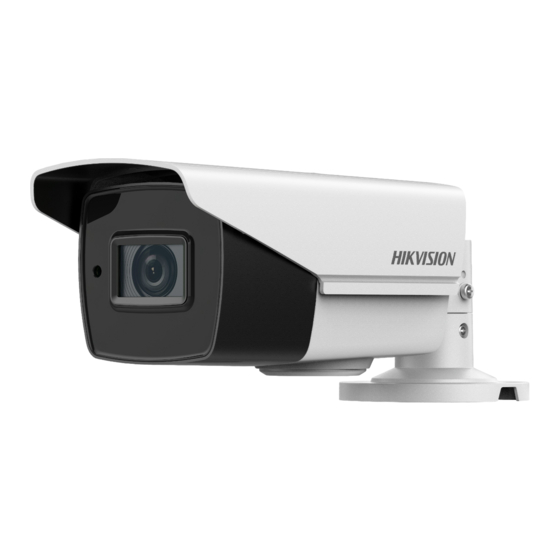

DS-2CE19U8T-(A)IT3Z
Type I Camera
Type II Camera
DS-2CE79U8T-IT3Z
Type III Camera
DS-2CE59U8T-(A)VPIT3Z
This manual may contain technical incorrect places or
printing errors, and the content is subject to change
without notice. The updates will be added to the new
version of this manual. We will readily improve or
update the products or procedures described in the
manual.
0100001070930
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HIKVISION DS-2CE19U8T-IT3Z
Summary of Contents for HIKVISION DS-2CE19U8T-IT3Z
- Page 1 TURBO HD 4K Series VF Bullet & Turret & Dome Camera User Manual User Manual Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. This manual applies to the models below: Type Model DS-2CE19U8T-(A)IT3Z...
-
Page 2: Regulatory Information
Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. - Page 3 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”. Warnings: Serious injury or death may occur if any of the warnings are neglected.
-
Page 4: Product Features
Keep the camera away from liquid while in use for non-water-proof device. While in delivery, the camera shall be packed in its original packing, or packing of the same texture. Mark Description Table 0-1 Mark Description Mark Description DC Voltage AC Voltage 1 Introduction... -
Page 5: Installation
1.2.3 Overview of Type III Camera CVBS Video Cable TVI Video Cable Lens Cables Power Cord 24 VAC/12 VDC Auxiliary Model I Cables Video Output Menu Button CVBS Video Cable TVI Video Cable Power Cord 24 VAC/12 VDC Bubble Back Box Model II Cables Figure 1-3 Overview of Type III Camera 2 Installation... - Page 6 Figure 2-2 Fix the Camera to the Ceiling Note: The supplied screw package contains self-tapping screws, and expansion bolts. For cement wall, expansion bolts are required to fix the camera. For wooden wall, self-tapping screws are required. 5. Connect the corresponding power cord, and video cable.
- Page 7 Figure 2-4 Fix the Camera with the Gang Box 5. Attach the junction box’s body to the ceiling/wall by aligning the screw holes of the junction box. 6. Secure the junction box’s body with supplied screws on the ceiling/wall. Figure 2-5 Fix the Camera to the Ceiling 7.
- Page 8 3. Loosen screws to remove the clip plate, and take out the main body. Figure 2-8 Remove the Clip Plate 4. Fix the mounting base on the ceiling with supplied screws. Figure 2-9 Fix the Mounting Base on the Ceiling Note: The supplied screw package contains self-tapping ...
- Page 9 1). Hold the camera body and rotate the enclosure to adjust the pan position [0° to 360°]. 2). Move the camera body up and down to adjust the tilt position [0° to 75°]. 3). Rotate the camera body to adjust the rotation position [0°...
- Page 10 Figure 2-15 Fix the Junction Box 8. Repeat steps 5 to 9 of 2.2.1 Ceiling/Wall Mounting without Junction Box to complete the installation. 2.3 Installation of Type III Camera 2.3.1 Ceiling Mounting Before you start: Both wall mounting and ceiling mounting are suitable for the dome camera.
- Page 11 Figure 2-18 Fix the camera to the Ceiling 7. Connect the corresponding cables, such as power cord, and video cable. 8. Power on the camera to check whether the image on the monitor is gotten from the optimum angle. If not, adjust the camera according to the figure below to get an optimum angle.
-
Page 12: Menu Description
Figure 2-21 Attach the Back Box to the Bracket 6. Route the cables through the bracket. 7. Repeat steps 6 to 9 of the 2.3.1Ceiiing Mounting to complete the installation 3 Menu Description Purpose: Call the menu by clicking button on the PTZ Control interface, or call preset No.95. -
Page 13: Video Format
3.1 Video Format You can set frame rate as 8 MP@12.5fps, 8 MP@15fps, 5 MP@20fps, 4 MP@25fps, 4 MP@30fps, 1080p@25fps, or 1080p@30fps. 3.2 Language Supports English. 3.3 Focus Click the up or down direction button to adjust the zoom, and the left or right direction button to adjust the focus. - Page 14 AGC (Automatic Gain Control) It optimizes the clarity of the image in poor light conditions. The AGC level can be set as High, Medium, or Low. Select Off to disable the AGC function. Note: The noise will be amplified when the AGC is on. Slow Shutter Slow Shutter increases the exposure time on a signal frame, which makes a camera more sensitive to light.
- Page 15 Figure 3-5 Day Night IR Light You can turn on/off the IR Light to meet the requirements of different circumstances. Smart IR The Smart IR function is used to adjust the light to its most suitable intensity, and prevent the image from over exposure.
- Page 16 conditions, and deliver more accurate and sharp image quality. You can set the DNR value from 1 to 10. Mirror Off, H, V, and HV are selectable for mirror. Off: The mirror function is disabled. H: The image flips 180° horizontally. V: The image flips 180°...
