- Page 1 User Manual AGRETO LoadCounter II M © AGRETO electronics GmbH...
-
Page 2: Table Of Contents
AGRETO LoadCounter II M Content Introduction ......................3 Scope of delivery ....................3 Intended use ......................3 Security ......................... 3 Safety instructions for the buyer ..................3 Safety instructions for the operator ................. 4 Personal protective equipment ..................4 Residual risks ........................4 Technical specifications .................. -
Page 3: Introduction

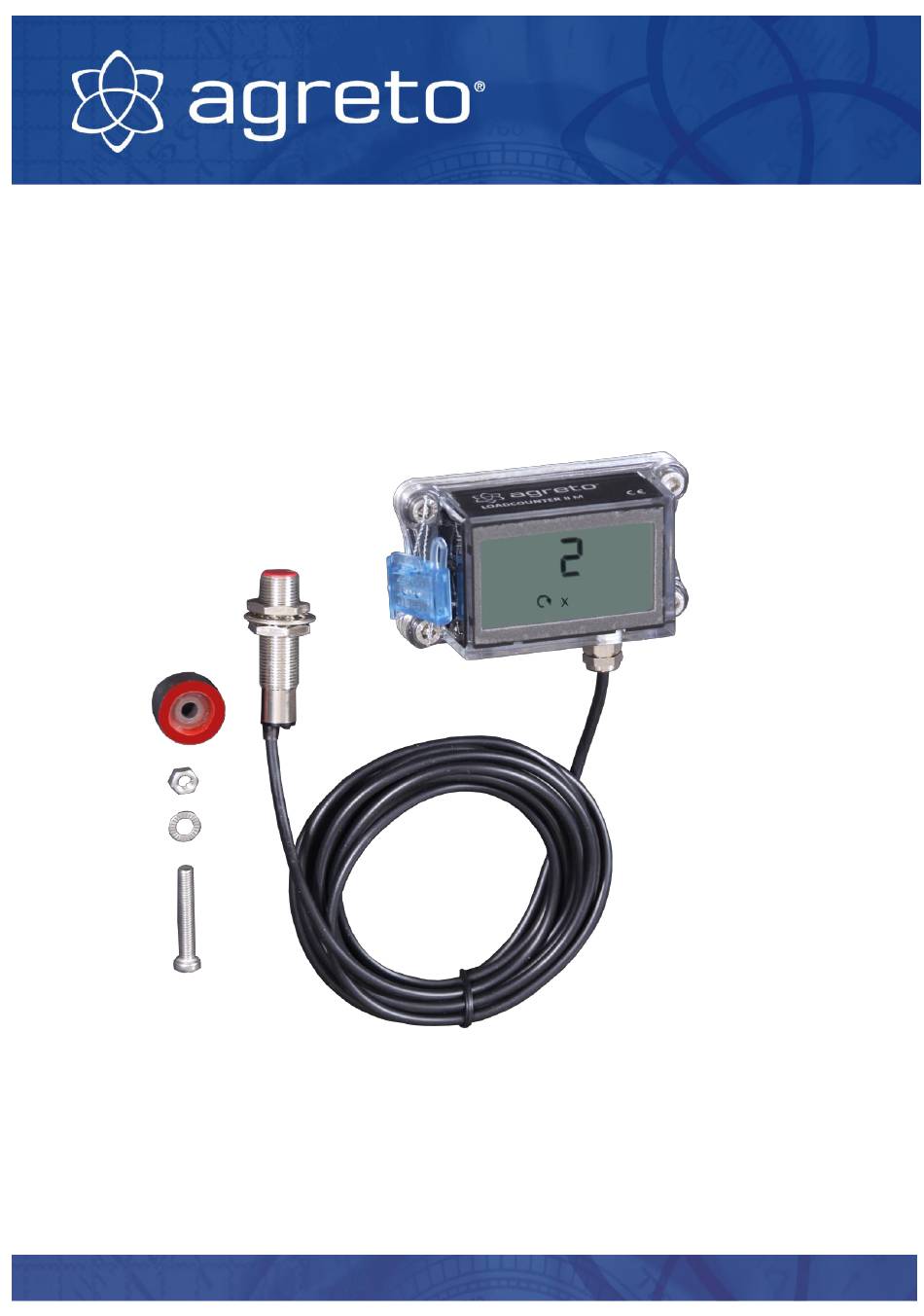

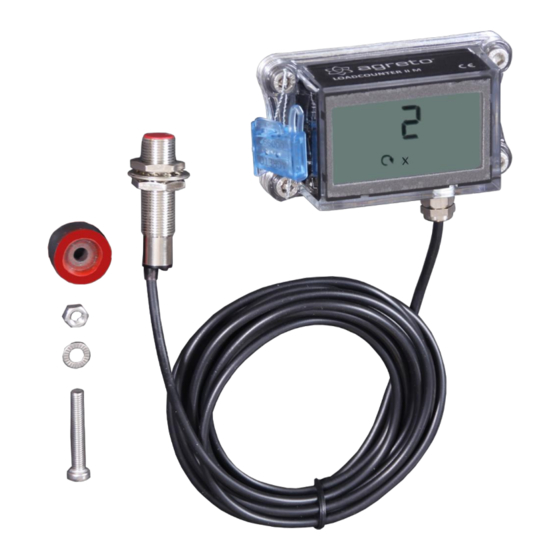

AGRETO LoadCounter II M 1 Introduction Thank you for choosing an AGRETO Load Counter. You have acquired a robust tool for daily use. Please read this manual carefully before using the equipment. 2 Scope of delivery 1 Display unit with sensor ... -
Page 4: Safety Instructions For The Operator
AGRETO LoadCounter II M Safety instructions for the operator DANGER! The AGRETO LoadCounter may only be operated by persons who are familiar with the operation of the device. CAUTION! Keep the work area clean! Soiled areas contributes to accidents. RISK! Risk of injury from tip-over / fall and inattention while working with the measuring instrument during getting on and off the tractor. -
Page 5: Technical Specifications
6 Configuration Selection of the operating mode The AGRETO LoadCounter II M has 2 operating modes. In the first mode, only the amount of loads are counted, in the second mode additionally the working hours are counted. First, decide which operating mode is suitable to your application, set the... -
Page 6: Operating Keys
AGRETO LoadCounter II M Operating Keys The control buttons are located inside the device and accessible from the back with the mounting plate removed. To change settings, look at the buttons and then turn the device with the display to the front to read the display. -
Page 7: Process Of Detecting A Load
AGRETO LoadCounter II M Process of detecting a load The loads are recorded by the reed sensor, which must receive a certain number of impulses, and a pause time, which must then pass at least. If both conditions are met, a load is counted. - Page 8 AGRETO LoadCounter II M Parameter IMP - number of pulses This parameter indicates how many impulses the device must at least receive from the sensor in order to count a load. A pulse always arises when the magnet turns or moves past the sensor.
- Page 9 AGRETO LoadCounter II M Parameter dELA - (Delay) pause time The pause time is the minimum time that must pass before a load can be counted. It starts to run when the sensor has delivered the set number of pulses...
-
Page 10: Zeroing The Counter
AGRETO LoadCounter II M no further movement within the set time, the counting is stopped and the sum is reset to the initial value. 1 = summation starts immediately after the first movement 20 = default 100 = summation is started after 100 seconds In counting mode, this parameter determines the length of a rest period in seconds, during which the count continues without interruption. -
Page 11: Assembly
AGRETO LoadCounter II M 7 Assembly Only start with the assembly once you have clarified whether a change in the configuration is necessary for your application. Please read the chapter "Configuration" before. Positioning the sensor and the magnet The mounting location of the sensor and the magnet must be chosen in such a way that the magnet generates pulses in the sensor during the application process of a load or transport process. -
Page 12: Mounting The Sensor And The Magnet
AGRETO LoadCounter II M Mounting the sensor and the magnet Mount a fastening part for the sensor (for example a piece of flat iron) with a hole of 12.5 mm on the machine and fasten the sensor in the hole. -
Page 13: Positioning Of The Meter
AGRETO LoadCounter II M Positioning of the meter Choose a location on the machine that is as protected as possible and still accessible, this also results in the routing of the sensor cable. The position of the meter is not relevant for operation. -
Page 14: Fastening The Counter
AGRETO LoadCounter II M Fastening the counter Place the counter on the base plate. Use the 4 allen screws M5x8. Two of them have a small hole for the seal wire, use these two on the side where you want to attach the seal. -
Page 15: Working With The Device
AGRETO LoadCounter II M 8 Working with the device Reading the loads The LoadCounter permanently displays the sum of the counted loads, an operation for reading is not provided. The symbol X indicates that the displayed number is the sum of the loads. -
Page 16: Symbols On The Display
AGRETO LoadCounter II M Symbols on the display Below the main display there are various icons for displaying additional information. The arrow to the right means that the pause time is running now. The wavy line means that the counter is currently detecting movement or vibration and is in counting mode. -
Page 17: Maintenance And Cleaning
AGRETO LoadCounter II M 9 Maintenance and cleaning The Counter basically does not require ongoing maintenance. If the display is dirty, clean it for reading. If the battery symbol is lit, replace the batteries. 10 Troubleshooting 10.1 The battery symbol lights up The batteries need to be replaced, follow these steps: Remove the seal and the seal wire. -
Page 18: Too Many Loads Are Counted
AGRETO LoadCounter II M 10.3 Too many loads are counted The parameters may not be set correctly for your application. If possible, set the pause time higher. However, always orientate yourself on a short transport process. Set the number of pulses higher, but they must still be reached safely ... -
Page 19: Warranty
In addition to the statutory warranty, the following warranty conditions apply to the AGRETO LoadCounter II M: The AGRETO electronics GmbH guarantees the function and repairs or replaces all the parts that have a material or manufacturing damage within the warranty period. -
Page 20: Imprint
All information, specifications and illustrations are as of 2021, subject to technical or design changes. All information in this manual is supplied without liability despite careful preparation. A liability by the author is excluded. Copyright © 2021, AGRETO electronics GmbH AGRETO electronics GmbH Pommersdorf 11 A-3820 Raabs Tel.: +43 2846 620...
