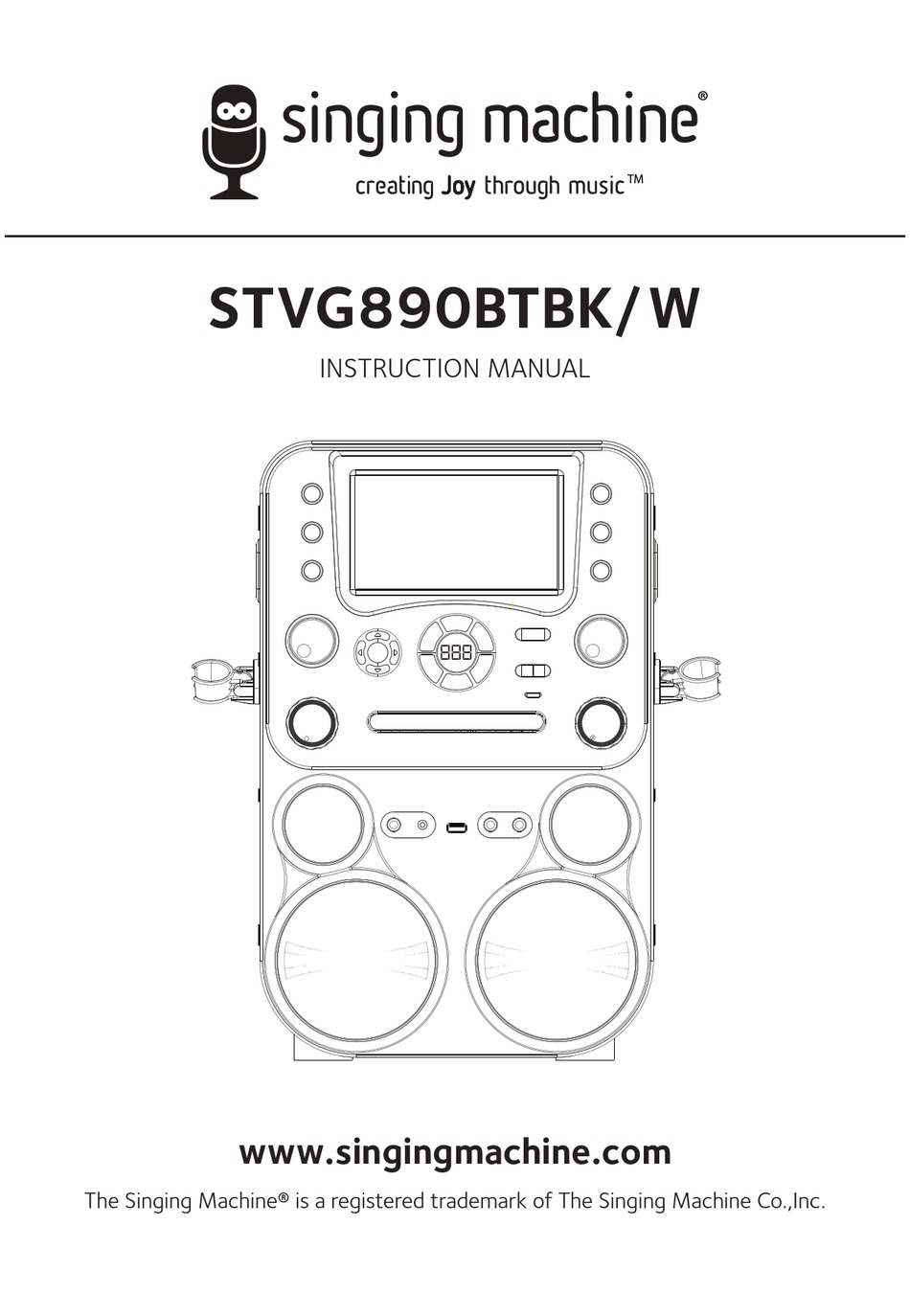

- Page 1 STVG890BTBK/W INSTRUCTION MANUAL www.singingmachine.com The Singing Machine® is a registered trademark of The Singing Machine Co.,Inc.
-
Page 2: Important Safety Information
Warnings FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful CAUTION interference unless the modifications are expressly approved in the RISK OF ELECTRIC SHOCK instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. -
Page 3: What's In The Box
What’s in the box. Main Unit Wired Microphone AC Adapter Manual Welcome Kit Audio/Video Cables... -
Page 4: Location Of Controls (Front)
Location of Controls (Front) 1. STANDBY Button 12. Listed clockwise, from 16. Tweeters top: 2. Screen 17. LINE IN Jack PROGRAM 3. BLUETOOTH Button 18. Speakers Play/Pause 4 ; Button 4. SKIP 10+ Button 19. FUNCTION Control Skip/Search Forward : 5. -
Page 5: Location Of Controls (Rear)
Location of Controls (Rear) 1. AUDIO OUT Right Jack 3. AUDIO OUT Left Jack 2. VIDEO OUT Jack 4. DC IN Jack... - Page 6 Connection Connecting the Microphone(s) Microphones: Connect a microphone into MIC jack 1 as well as MIC jack 2 (when desired). Note: Do not drop or tap the Mic as damage to the Mic or speakers may occur. Do not twirl the microphone cord as it will cause damage to the encased wiring.
- Page 7 Connection Connecting to AC Power Insert the AC power cord into a conveniently located AC outlet having 120V AC, 60Hz. Note: Make all connections before connecting to AC power. Connecting to LINE IN Jack Connect an external device by using an appropriate cable (3.5mm audio cable not included) as shown.
-
Page 8: Operation
Operation Playing a CDG Connect the unit as described previously; if using a CD+G, it is recommended to connect to a TV. Press the STANDBY button to turn the unit on. Press the MONITOR button to turn the screen on. Press the CD Open/Close button to open the CD door and then insert a CD (with standard or MP3+G files) or... - Page 9 Operation Playing a CDG (Continued) Adjust the volume to a comfortable level using the MASTER VOLUME control. Connect microphone(s) and slide the ON/OFF switch on the microphone to the ON position. Rotate the MIC VOLUME control as desired. Increasing this control will increase the volume of both microphones.
- Page 10 Operation Playing a CDG (Continued) Adjust the Key to obtain the best key for the singer on the track. Adjust the key using the KEY – and KEY + buttons. SKIP: Advance or go back one track by pressing the Skip Back 9/Skip Forward : buttons.
- Page 11 Operation Playing a CDG (Continued) During program playback, press the REPEAT button once to repeatedly play the selected song will display. Press the REPEAT button a second time to repeatedly play the whole CD will display. Press it again to cancel Repeat function will display.
- Page 12 Operation Playing Songs from the USB Connect the unit as described previously. Press the STANDBY button to turn the unit on. Insert a USB flash drive into the USB port on the unit so it faces upward. Make sure to download music from the Karaoke store.
- Page 13 Operation Playing Songs from the USB (Continued) Connect microphone(s) and slide the ON/OFF switch on the microphone to the ON position. Adjust the MIC VOLUME control as desired. Increasing this control will increase the volume of both microphones. Rotate the ECHO control to add an echo effect to your voice.
- Page 14 Operation Playing Songs from the USB (Continued) SKIP: Advance or go back one track by pressing the 9 or : buttons. You can also skip ahead 10 files/ tracks using the Skip10+ button. SEARCH: When playing any audio from the USB, press and hold the 9 or : buttons.
- Page 15 Operation Playing Songs from the USB (Continued) Note: Press the Stop < button TWICE to stop and clear the program. PAUSE: During playback, if you wish to pause the disc momentarily, press the Play/Pause4 ; button. Press again to resume normal playback. Press the Stop <...
- Page 16 Operation Using a Bluetooth Device Connect the unit as described previously. Press the STANDBY button to turn the unit on. Repeatedly press the FUNCTION button to select the Bluetooth mode; “bt” will blink on the display and “Bluetooth” will blink on the monitor as the unit automatically searches for and pairs a previously paired Bluetooth device (if previously paired).
- Page 17 Operation Using a Bluetooth Device (Continued) To control your Bluetooth device from this unit, press the Play/Pause4 ; button to start playback. Press the Play/Pause4 ; button during playback to pause the song. Adjust the volume to a comfortable level using the MASTER VOLUME control on this unit as well as the volume on your Bluetooth device.
- Page 18 Operation Using the LINE IN Jack (Guitar or Keyboard) Connect the unit as described previously. GUITAR/KEYBOARD: Connect the Guitar or Keyboard to the GUITAR/ KEYBOARD Ext. Input jack. LINE IN: Connect a music player using a 3.5mm standard audio cable from the external unit’s Audio Output/ Headphone jack to the unit LINE IN Ext.
- Page 19 Operation Using the LINE IN Jack (Guitar or Keyboard) (Continued) Connect microphone(s) slide the ON/ OFF switch on the microphone to the ON position. Adjust the MIC VOLUME control as desired. Increasing this control will increase the volume of both microphones.
- Page 20 Operation Recording CDG/CD. Bluetooth to the USB Connect the unit as described previously. Press the STANDBY button to turn the unit on. RECORD CDG/CD MUSIC TO THE USB Follow the “Playing a CDG” instruction to start the CDG/CD music playback. Insert a USB flash drive into the USB port on the unit, press the RECORD button;...
- Page 21 Machine Download Store. • Remove (eject) the USB flash drive from your computer. Download your selected purchase(s) Turn on the Singing Machine and connect the USB from the Singing Machine Digital flash drive. Locker to your USB flash drive. • Where can I get additional help with the...
-
Page 22: Care And Maintenance
Care and Maintenance Care for Compact Discs Treat the compact disc carefully. Handle the compact disc only by its edges. Never allow your fingers to come in contact with the shiny, unprinted side of the compact disc. Do not attach adhesive tape, stickers, etc. to the compact disc label. -
Page 23: Troubleshooting Guide
Troubleshooting Guide Should this unit exhibit a problem, check the following before seeking service: No Power • Power is not on; press the STANDBY button to turn power on. • Make sure the unit is connected to AC power. No Sound – General •... -
Page 24: Specifications
Specifications are subject to change without notice. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by The Singing Machine Company is under license. Other trademarks and trade names are those of their respective owners. - Page 25 Visit Our Website: www.singingmachine.com The Singing Machine Company, Inc. 4060 E Jurupa Street, Unit B PRINTED IN CHINA Ontario, CA 91761-1413 USA 890BT-1708-ENG01...
