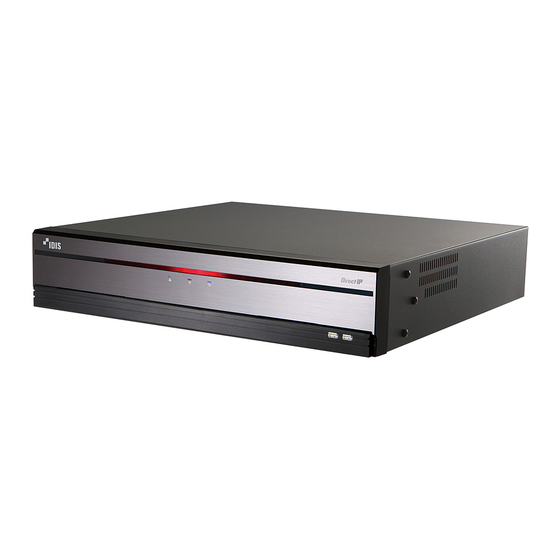

  • Page 1 Network Video Recorder Installation Manual DR-3104P DR-3108P DR-3116PS Powered by...
  • Page 2 Before reading this manual This manual contains basic instructions on installing and using DirectIP™ Network Video Recorder, an IDIS product. Users who are using this product for the first time, as well as users with experience using comparable products, must read this manual carefully before use and heed to the warnings and precautions contained herein while using the product.
  • Page 3 Before reading this manual 1. Read Instructions 14. Damage requiring Service All the safety and operating instructions should be read before the appliance Unplug this equipment from the wall outlet and refer servicing to qualified is operated. service personnel under the following conditions: 2.
  • Page 4 Before reading this manual Important Safeguards In-Text Symbol Type Description Caution Important information concerning a specific function. Note Useful information concerning a specific function. User’s Caution Statement Caution: Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate the equipment.
  • Page 5 Before reading this manual Copyright © 2015 IDIS Co., Ltd. IDIS Co., Ltd. reserves all rights concerning this manual. Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this manual are subject to change without prior notice.

  • Page 6: Table Of Contents

    Table of Contents Part 1 – Introduction ......... 7 Product Features .

  • Page 7: Part 1 - Introduction

    Part 1 – Introduction Product Features This is a DirectIP™-enabled video recorder that supports surveillance, recording, and playback of video from network cameras (or video encoders). This NVR (Network Video Recorder) unit offers the following features: • Real-time 4/8/16-channel DirectIP™ network surveillance •...
  • Page 8 Part 1 – Introduction This document covers the 4-, 8- and 16-channel network video recorders. The NVRs are identical except for the number of cameras and alarms that can be connected and the number of cameras that can be displayed. For simplicity, the illustrations and descriptions in this document refer to the 16-channel model.

  • Page 9: Accessories

    Part 1 – Introduction Accessories Upon unpackaging the product, check the contents inside to ensure that all the following accessories are included. Network Video Recorder Power Cable Quick Guide Manual and IDIS Center Program CD Optical USB Mouse IR Remote Control Assembly Screws for Adding Hard SATA2 cables Disk Drives...

  • Page 10: Overview

    Part 1 – Introduction Overview Front Panel LEDs USB Ports • Remote control sensor is located on the bottom center of the front panel. Ensure that the sensor remains unobstructed at all times. If obstructed, the sensor might not be able to receive remote control signals. •...
  • Page 11 Part 1 – Introduction Connections on the Front Panel Flash Memory Mouse USB HDD IR Remote Control...

  • Page 12: Rear Panel

    Part 1 – Introduction Rear Panel <DR-3116PS> CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK. CAUTION AUDIO IN DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. RISK OF ELECTRIC SHOCK REFER SERVICING TO QUALIFIED DO NOT OPEN SERVICE PERSONNEL.

  • Page 13: Rear Panel Connections

    Part 1 – Introduction Rear Panel Connections Video Connection CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK. CAUTION DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. RISK OF ELECTRIC SHOCK REFER SERVICING TO QUALIFIED DO NOT OPEN •...
  • Page 14 Part 1 – Introduction F ELECTRIC SHOCK. AUDIO IN (OR BACK). ARTS INSIDE. UALIFIED NEL. VIDEO IN VIDEO IN / PoE CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK. CAUTION AUDIO IN DO NOT REMOVE COVER (OR BACK). Ext. NO USER-SERVICEABLE PARTS INSIDE.
  • Page 15 Part 1 – Introduction • ARI (Alarm Reset In) Audio Connection An external signal to the Alarm Reset In can be used to reset both the Alarm Out signal and the NVR’s internal buzzer. Mechanical or electrical switches can be wired to the ARI (Alarm Reset In) and GND (Ground) connectors.
  • Page 16 Part 1 – Introduction Connections on the Rear Panel Network Camera Video Analog Encoder Camera Sensor eSATA Storage Network Device IDIS Center Remote VGA Monitor Monitoring Keyboard Keyboard Microphone Speaker DirectIP™ Gigabit HDMI Monitor PoE Switch Network Camera Alarm...

  • Page 17: Remote Control

    Part 1 – Introduction Remote Control ID Button PANIC Button Camera Buttons STATUS Button LAYOUT Button PTZ Control Buttons REGISTER MODE Button THUMBNAIL Button CALENDAR Button KEYLOCK Button SETUP Button FREEZE Button LOG Button Enter Button Arrow Buttons ALARM Button SEQUENCE Button &...
  • Page 18 Part 1 – Introduction 1 ID Button 7 REGISTER MODE Button Used to assign remote control ID values. Used in Live mode to access Camera Registration mode. No additional remote control assignment is necessary if the system's ID is 0. If the system's ID is 8 THUMBNAIL Button a number between 1 and 9, however, you will need Used in Playback mode to access Thumbnail Search...
  • Page 19 Part 1 – Introduction $ Enter Button b MENU Button Pressing the MENU button while in Live mode Used to make menu option selections and register data entries. In addition, pressing this button while displays the Live menu. Alternatively, pressing the a camera screen is selected by pressing the Menu button while in Time-lapse Search mode displays the button in Live or Playback mode displays the Camera...

  • Page 20: Part 2 - Appendix

    Part 2 - Appendix System Log Types Boot Up Panic On System Shutdown Panic Off Restart Clear All Data Upgrade Success Clear Disk Upgrade Error Format Disk Power Failure Disk Full Time Changed Auto Deletion Time Zone Change Search Begin Time Sync.

  • Page 21: Error Code Types

    Part 2 - Appendix Error Code Types Upgrade Error Codes Type Type Unknown Error Remote Network Error Incorrect File Version No Remote Upgrade Permission Incorrect OS Version Remote Upgrade File Save Failure Incorrect Software Version Remote Upgrade Cancelled by User Incorrect Kernel Version USB Storage Device Mount Failure Storage Device Mount Failure...
  • Page 22 Part 2 - Appendix Clip Copy Error Codes Type Type Unknown Error Disk Error Device Error Clip Player Execution File Not Found Device Connection Failure Clip Player Execution File Access Failure CD Media Not Found Clip Player Execution File Save Failure Incorrect Media Image Generation Failure File Name Taken...
  • Page 23 Part 2 - Appendix Network Error Codes Type Type Cause of Failure Unknown Connection Cancelled by User Normal Logout No Response from Network Device Host All Channels in Use - Connection Denied High Network Noise Level Incorrect Product Version Info Transmission Queue Full Incorrect User Name or Password Incorrect OEM Info...

  • Page 24: Troubleshooting

    Part 2 - Appendix Troubleshooting Problem Solution • Check the power cable connection status. The main unit won't turn on. • Check the power outlet. • Check the camera's video cable connection status. • Check the monitor's video cable connection status. Unable to display Live video.

  • Page 25: Specifications

    Part 2 - Appendix Specifications These product specifications may change without prior notice. General Exterior Dimensions 430mm x 88mm x 411mm (W x H x D) Weight (Main Unit) 6.0kg (with 1HDD) Working Temperature 0°C – 40°C Operating Humidity 0% – 90% Power 100V~240V Power Consumption...
  • Page 26 Part 2 - Appendix Alarm In 4 TTL, NC/NO programmable, 2.4V (NC) or 0.3V (NO) threshold, 5VDC Alarm Out 1 relay output, NC/NO, 2A@125V AC, 1A@30V DC Alarm Reset In 1 TTL, terminal block Internal Buzzer 78dB at 10cm Network Connection 10Mbps/100Mbps/1Gbps Ethernet Audio In 1 line, RCA...
  • Page 27 Part 2 - Appendix Some hard disks may not function properly when mounted on to this product. Refer to the compatibility chart below before mounting any additional hard disk on to the product. Hard disk compatibility chart is subject to change without notice. Contact your retailer for the latest compatibility chart.
  • Page 28 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...

This manual is also suitable for:

Idis dr-3108pIdis dr-3116ps
