R u g g e d T a b l e t C o m p u t e r
R T C - 7 0 0 C

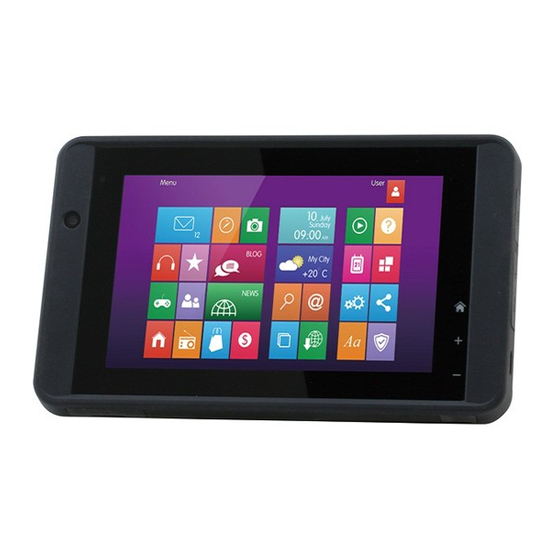

RTC-700C
Rugged Tablet Computer
®
Intel
Atom™ Z2670
1.8GHz Processor with DDR2 2G
7" WXGA TFT LCD [1280x800]
1Mini HDMI, 1Mini USB, Dual Camera
st
RTC-700C Manual 1
Ed
1- 1
Chapter 1 Introduction

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTC-700C and is the answer not in the manual?

Questions and answers

Related Manuals for Aaeon RTC-700C

Summary of Contents for Aaeon RTC-700C

  • Page 1 R T C - 7 0 0 C RTC-700C Rugged Tablet Computer ® Intel Atom™ Z2670 1.8GHz Processor with DDR2 2G 7” WXGA TFT LCD [1280x800] 1Mini HDMI, 1Mini USB, Dual Camera RTC-700C Manual 1 1- 1 Chapter 1 Introduction...
  • Page 2 AAEON assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. AAEON reserves the right to make changes in the product design without notice to its users. 1- 2...
  • Page 3 R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C Acknowledgments All other products’ name or trademarks are properties of their respective owners. ®...
  • Page 4 R T C - 7 0 0 C Packing List Before you begin operating your tablet computer, please make sure that the following materials are enclosed: • RTC-700C Rugged Tablet with Microsoft Windows OS • AC Adapter with Power Cord •...
  • Page 5 R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C Options The following items are normally optional, but some vendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the times.
  • Page 6 R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C Safety & Maintenance You can use your Rugged Tablet Computer under a wide range of environmental conditions.
  • Page 7 R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C If you use the RTC with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet.
  • Page 8 R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received...
  • Page 9 R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C Below Table for China RoHS Requirements 产品中有毒有害物质或元素名称及含量 AAEON Panel PC/ Workstation 有毒有害物质或元素 部件名称 铅...

  • Page 10: Table Of Contents

    R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C Contents Chapter 1 Settings 1.1 Getting Started ............1-2 1.2 Features ..............1-3 1.3 Where to Look For Information .........
  • Page 11 R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C Appendix A Statements A.1 Statements ............. A-2 A.2 Canadian Notice ............ A-5 A.3 CE Mark Notice ............
  • Page 12 R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C 1- 12 Chapter 1 Introduction...
  • Page 13 R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C Chapter Introduction  1- 13 Chapter 1 Introduction...

  • Page 14: Getting Started

    R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C 1.1 Getting Started Congratulations on your purchase of a Rugged Tablet Computer (RTC).

  • Page 15: Features

    R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C 1.2 Features Your new RTC offers leading, easy-to-access multimedia and entertainment features. You can: •...

  • Page 16: Where To Look For Information

    R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C 1.3 Where to Look For Information About Your RTC This User’s Manual describes the key elements of your RTC. New users can find a simple step-by-step orientation in the Quick Start section of this Chapter.

  • Page 17: Quick Start

    R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C 1.4 Quick Start Turning on the Rugged Tablet Computer for the First Time For first-time use, you need to charge your RTC for four hours.

  • Page 18: Loading Windows

    R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C 1.5 Loading Windows The following section is for the Windows operating system only. If you are installing a different operating system, please check with your vendor for installation details.
  • Page 19 R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C 2-19 Chapter 2 Making Connections...

  • Page 20: Chapter 2 Making Connections

    R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C Chapter Making Connections 2-20 Chapter 2 Making Connections...
  • Page 21 R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C Making Connections Your RTC is equipped with a full array of ports and connectors, including standard input/output (I/O) ports for quickly and easily adding peripheral devices such as printers, keyboards, and mouse.

  • Page 22: Right Side Connectors

    R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C 2.1 Right Side Connectors No. Item Description MicroSD Insert a micro SD card into the card slot slot under this cover;...
  • Page 23 R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C DC-in Jack Connect to the AC-DC power supply. No. Item Description Mini USB Connector to a computer with USB cable.

  • Page 24: Left Side Connectors

    R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C 2.2 Left Side Connectors No. Item Description Power Long press to turn your RTC on, press Bottom briefly to turn the screen on/off or enter sleep mode;...

  • Page 25: Rear Side Connectors

    R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C automatically adjusts the screen brightness. Front-facing With 2 mega pixels camera for Camera video chatting and self-portrait image.
  • Page 26 R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C No. Item Description NFC Reader Area Rear-facing With 8 mega pixels camera for taking Camera high-resolution images;...
  • Page 27 R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C 3 - 27 Chapter 3 Power Management...
  • Page 28 R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C Chapter Power Management 3 - 28 Chapter 3 Power Management...

  • Page 29: Power Management

    R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C 3.1 Power Management Checking the Battery Level This RTC has built-in power management unit that monitor system activity.

  • Page 30: Chapter 4 Driver Installation

    R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C 4 -30 Chapter 4 Driver Installation...

  • Page 31: Installation

    R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C Chapter Driver Installation 4 -31 Chapter 4 Driver Installation...
  • Page 32 R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C The RTC-700C comes with a CD-ROM that contains all drivers your need.
  • Page 33 R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C 4.1 Installation Insert the RTC-700C CD-ROM into the CD-ROM Drive. And install the drivers from Step 1 to Step 2 in order. Step 1 – Install All Driver 1.
  • Page 34 R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C Appendix A Statements A-...

  • Page 35: Appendix A Statements

    R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C Appendix Statements Appendix A Statements A-...

  • Page 36: Statements

    R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C A.1 Statements Declarations and Safety Statements Federal Communications Commission Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 37 R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 38 R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C www.fcc.gov./oet/ea/fccid on the FCC ID: OHBRTC700CWBGB. This device is in compliance with SAR for general population/uncontrolled exposure limits in ANSI/IEEE C95.

  • Page 39: Canadian Notice

    R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C A.2 Canadian Notice IC Regulations This device complies with Industry Canada license-exempt RSS standard(s).

  • Page 40: Ce Mark Notice

    R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C marketed in the U.S. and Canada. For products available in the U.S./Canada markets, only channels 1-11 can be operated.

  • Page 41: Safety Caution

    R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C CE marking for devices without wireless LAN/Bluetooth® The shipped version of this device complies with the requirements of the EEC directives 2004/108/EC “Electromagnetic compatability”...
  • Page 42 R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C Important Safety Instructions Power Safety Requirement Products with electrical current ratings up to 2A and weighs more than 1 Kg must use approved power cords greater than or equal to: VCTF, 3G or 0.75mm2.

  • Page 43: Battery Disposal

    R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C réduire les risques d’incendie, de choc électrique et de blessures aux personnes, incluant : - Ne pas utiliser ce produit près de l’eau, par exemple dans une baignoire, une cuvette, un évier, une machine à...
  • Page 44 R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C Regulatory information / Disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product.

  • Page 45: Battery Caution

    R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C A.6 Battery Caution (Avertissement sur la batterie) Please don’t stock the RTC for a long time (over one month) without charging the battery that could damage or reduce life of the battery.
  • Page 46 R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C sans recharger la batterie. Cela peut endommager ou réduire la durée de vie de la batterie There is a danger of explosion if the battery is incorrectly replaced.

  • Page 47: Adapter Caution

    R u g g e d T a b l e t C o m p u t e r R T C - 7 0 0 C A.7 Adapter Caution (Avertissement sur l’adaptateur) This RTC is for use with model NO. LTE24E-S2-2. Ce modèle RTC est à...
