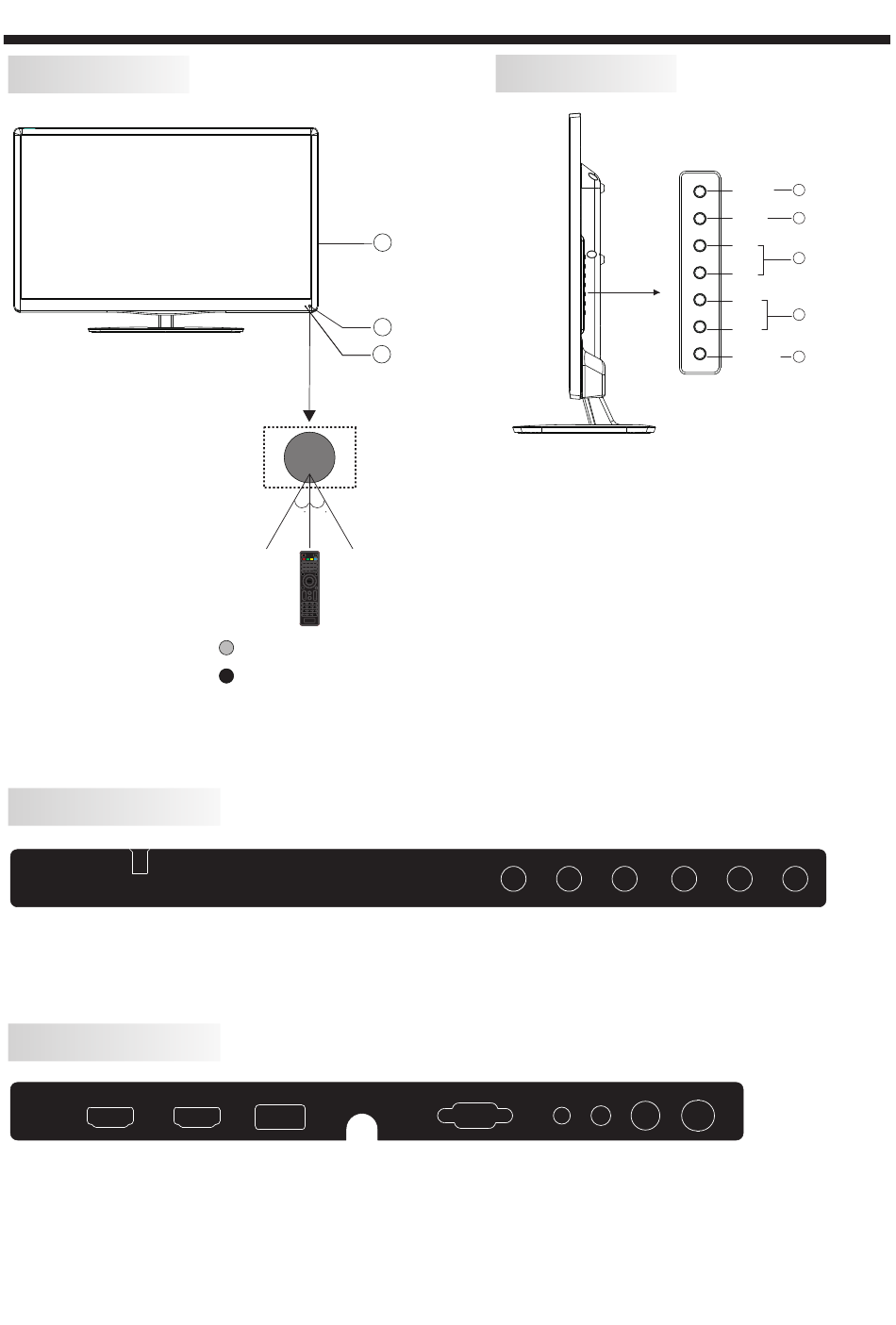

Front panel
1: Remote control sensor.
2: Indicator LED: BLUE
RED
3: P anel keys
REAR Connections
AC-INPUT
100-240V~ 50/60Hz
All the terminals are (from left to right):
POWER SOCKET, AV, AUDIO INPUT, YPbPr (COMPONENT) INPUT
Note: AV and YPbPr share the same audio input.
SIDE Connections
HDMI1
All the terminals are (from left to right):
HDMI1, HDMI2, USB, VGA, PC AUDIO, HEADPHONE, COAXIAL, RF.
Note: When HDMI has an input signal coming from a DVI source then the audio input signal must be
connected to the PC audio input.
30 30
YPbPr CC MTS VGA
DTV TV AV HDMI
STRENGTH
CH LIST EPG FAV
TV
DISPLAY
S.M
VOL CH
P.M
POWER ON.
STANDBY.
USB
HDMI2
Panel keys
3
1
2
1. SOURCE: Display the input source menu.
2. MENU: Display main MENU.
3. CH+/CH-: In TV mode, press "CH+" or "CH-" to
change the channel up and down. In MENU mode, press
"CH+" or "CH-" to select items in standby mode, press
"CH+" or "CH-" to turn on the TV.
4. VOL+/VOL-: Adjust sound level. In MENU mode,
press "VOL+ " or "VOL- " to adjust the item that you
selected.
5. STANDBY: Press this button to turn the unit ON
from STANDBY mode. Press it again to turn the set
back to STANDBY.
AV
VGA
PC AUDIO
-7-

INSTALLATION

SOURCE
VOL+
VOL-
STANDBY
L R Y Pb
RF
COAXIAL
HEADPHONE
1
2
MENU
CH+
3
CH-
4
5
Pr
