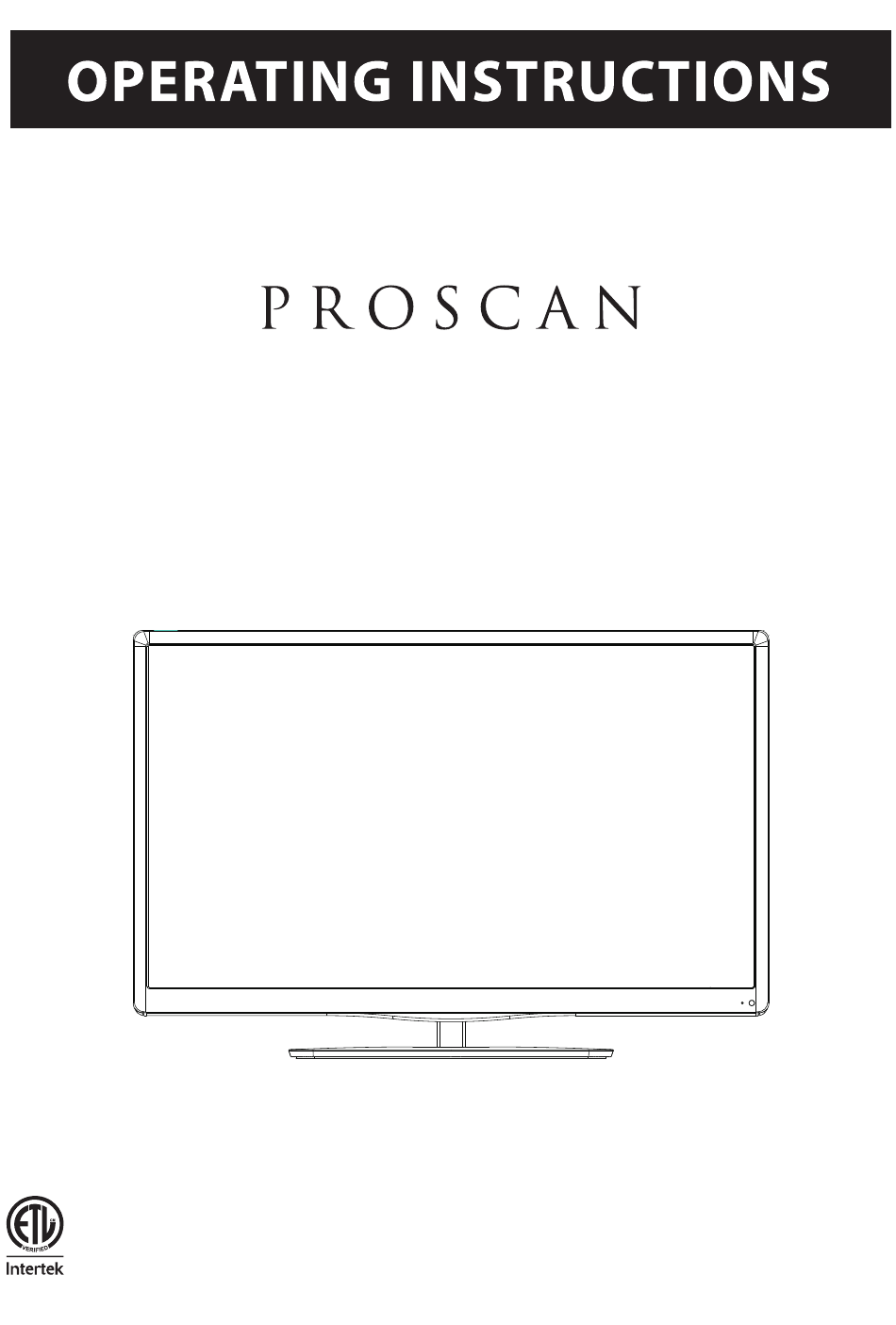

- Page 1 29" LED TV PLED2963A ENERGY PERFORMANCE VERIFIED RENDEMENT ENERGETIQUE EP4005285 VERIFIE...
-
Page 2: Table Of Contents
Contents Safety and warnings..................2-3 Introduction....................4 Stand installation guide................. 5 Wall Mount ....................6 Installation....................7-10 Remote Control....................11 Operation..................... 12-14 Trouble Shooting...................15... -
Page 3: Safety And Warnings
SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTION CAUTION ENERGY STAR is a joint program of the U.S. RISK OF ELECTRIC SHOCK DO NOT OPEN! Environmetal Protection Agency and the U.S. CAUTION Department of Energy helping us all save money and TO REDUCE THE RISK OF ELECTRIC SHOCK, DO protect the environmetal through energy rfficient NOT REMOVE COVER (OR BACK).NO USER practices. - Page 4 SAFETY AND WARNINGS High voltages are used in the operation of this television Never stand on, lean on, or suddenly push the television or receiver. Do not open the cabinet. its stand. You should pay special attention to children. Refer servicing to qualified service personnel. Serious injury may result if it falls.
-
Page 5: Introduction
INTRODUCTION Main features Accessories Accessories Integrated ATSC TV tuner for HDTV broadcast reception Infrared Remote Control....■ High brightness provides a vivid and brilliant picture ■ User’ s M anual ......... High dynamic contrast ratio for deeper blacks and brighter ■... -
Page 6: Stand Installation Guide
Base Stand Assembly Instructions 1. Place the TV with the display side down on a flat surface. Use a cloth to protect the display Position the base stand onto the bottom of the stand neck. Screws x 3pcs 4x26PWM Attach the base stand to the stand neck firmly tightening the supplied screws. Screws x 3pcs 4x8PWB... -
Page 7: Wall Mount
- 4 pcs of type M4 screws are required for installing the wall mount bracket to your PROSCAN TV. Do not use screws that are longer than 10 mm. Screws that are too long may cause damage to the inside of the TV set. -
Page 8: Installation
INSTALLATION Panel keys Front panel SOURCE MENU VOL+ VOL- STANDBY 1. SOURCE: Display the input source menu. 2. MENU: Display main MENU. 3. CH+/CH-: In TV mode, press "CH+" or "CH-" to change the channel up and down. In MENU mode, press YPbPr HDMI STRENGTH... - Page 9 INSTALLATION ANTENNA Note: Aerial connections: IEC (female). Input impendance:75 unbalanced. STEPS: It is recommended that the TV and computer are off before making any of the connections. 1.Connect the VGA and audio cable. 2.Connect the power cord. 3.Power on the TV, switch to PC mode. 4.Power on the PC.
- Page 10 INSTALLATION AC-INPUT 100-240V~ 50/60Hz PRESET MODE V.Freq.(Hz) H.Freq.(KHz) RESOLUTION 720*400 31.47 640*480 31.47 37.50 640*480 800*600 37.88 800*600 46.88 48.36 1024*768 1024*768 56.48 1024*768 60.02 1280*1024 63.98 1280*1024 80.00 1360*768 47.7...
- Page 11 INSTALLATION AV EQUIPMENT You can use the input terminals on the TV set as follows. COAXIAL HDMI1 HDMI2 PC AUDIO HEADPHONE HDMI VIDEO EQUIPMENT with YPbPr Yellow (video) White(audio L) Red(audio R or Pr) Blue(Pb) Green(Y) AC-INPUT 100-240V~ 50/60Hz VIDEO EQUIPMENT TO VIDEO OUTPUTS TO AUDIO OUTPUTS...
-
Page 12: Remote Control
REMOTE CONTROL 1: POWER Press to turn the TV on or to turn off (standby). 2: NUMBER KEY Press to input the channel number. Press to display the on-screen menu. 4: CURSOR Use the up, down, left, and right keys to move within the YPbPr menu. -
Page 13: Operation
OPERATION 1. PICTURE MENU Note: In this menu,you can adjust the picture effect here, 1).Audio language is available in ATSC/TV such as contrast, brightness, etc. Programming only. Press to select, press ENTER to adjust. 2).Auto volume is available only when the input signal volume is too large or there is distortion. - Page 14 OPERATION 1).CC Mode: Switching close caption mode. Content 2). Advanced selection: only ATSC program is Rating Content (Fantasy (Violence) (Sexual (Adult (Sexually available. violence) situation) language) suggestive 3).Option: Used to edit CC font. dialog) TV-Y (All children) Note: TV-Y7(Direct to 1).Restore Default: Restore Default will clear all the order children) Suggested...
- Page 15 OPERATION 6.1 Air/Cable: Description Rating Select Air TV signal and cable TV signal. 6.2 Auto Scan: Exempt: Includes news, sports, documents and other information If it's the first time you use the TV, you should scan all programming: talk shows, music videos, and variety programming. the TV channels first, Children: Intended for younger children under the age of 8 years.
-
Page 16: Trouble Shooting
TROUBLE SHOOTING Trouble phenomenon Symptom Inspection Check Picture Audio antenna position, direction Snow Noise or connection antenna position, direction Ghost Normal audio or connection electronic equipment,car/ Interference Noise motorcycle,fluorescent light Volume (check if mute is activated or if the audio system Normal Picture connections are not correct) Mute...
