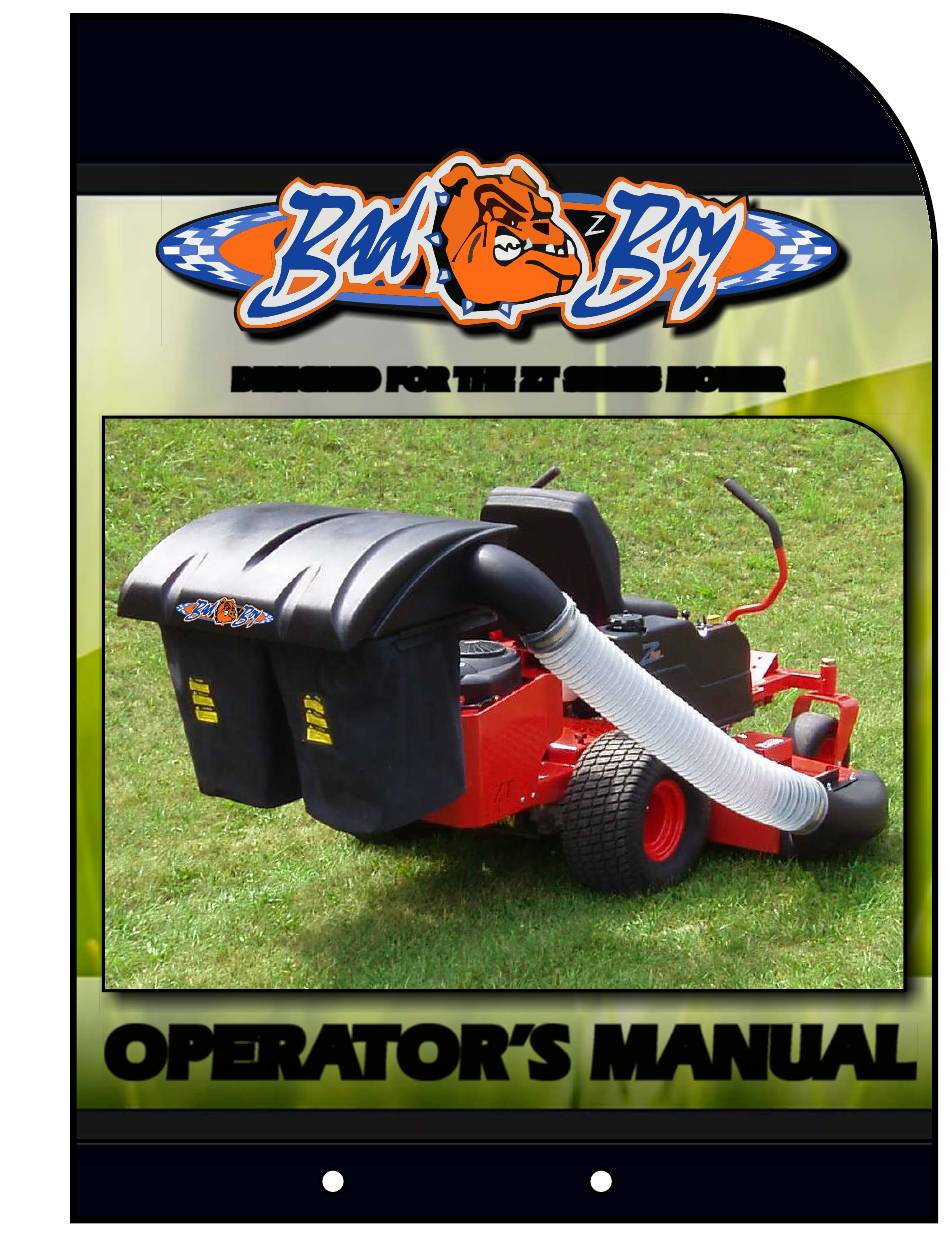

DIRECT-FLOW DIRECT-FLOW GRASS COLLECTION SYSTEM GRASS COLLECTION SYSTEM DESIGNED FOR THE ZT SERIES MOWER DESIGNED FOR THE ZT SERIES MOWER OPERATOR’S MANUAL OPERATOR’S MANUAL PART #: Q0377 PART #: Q0377 ASSEMBLY ASSEMBLY OPERATION OPERATION MAINTENANCE MAINTENANCE...
SAFETY WARNING! NEVER operate the mower unless the discharge guard and either the deflector assembly or the vacuum collector adapter are fastened securely in place. WARNING! Do not work around the mower deck boot or the blower area until you are certain that the mower blades and the blower impeller have stopped rotating.
PECO LIMITED WARRANTY FOR NEW PRODUCTS A. WHAT IS WARRANTED? PECO extends the following warranties to the original purchaser of each new PECO consumer product subject to the following limitations: 1. PRODUCT WARRANTY: Any part of any consumer product, which is defective in material or workmanship as delivered to the purchaser will be repaired or replaced, as PECO elects, without charge for parts or labor, if the defect appears within 12 months (90 days for commercial use) from the date of delivery of the product to the original purchaser.
flange nuts P#(K1215). Position the clamp bracket Section I P#(B0302) as shown in Figure 2-2 and fasten to the INTRODUCTION & lower frame assembly using (1) 5/16”-18 U-bolt P#(K1093) and (2) 5/16”-18 flange nuts P#(K1178). DESCRIPTION Make certain the bracket is clamping the lower frame assembly tight to the top portion of the mower’s rear bumper.
2-4 Upper Frame Installation 2-5 Continued... Slide the upper frame assembly P#(A0871) onto the Figure 2-5b shows a closer detail of the hardware vertical mount tube located on the lower mount location for mounting the top assembly to the upper assembly P#(A1022) as shown in Figure 2-4.
2-7 Continued... 2-8 Length Of Hose Adjustment Figure 2-7a (3) 3/8”-16 x 1” Carriage Bolts The hose in steps 2-9 must be cut to fit your machine. (3) 3/8”-16 Flange Nuts Do not cut the hose until you have tried to fit them on Boot &...
2-10 Installation/Removal Of Collection Figure 2-10b Right Pivot Bags Side Rail To install the bag P#(G0004) onto the bag ring P#(B0227), first make sure the bag ring end caps P#(J0274) are fastened to the bag ring. Place the seam openings of the bag onto the bag ring openings and turn the bag until the slot bracket in the bag ring is protruding from the opening in the bag (Figure 2-10a).
MODEL#: 48020902 MOWER NAME: BAD BOY MOWER MODEL: ZT SERIES MOWER DECK SIZE: 50” & 60” VAC NAME: PRO 2 BAGGER FOR YEAR: 2008 DIRECT FLOW / NO PECO LABELS REVISED: BILL OF MATERIALS: BOM0333 A1045 - UNIT ASSEMBLY 6” x 46”...
TOP/UPPER FRAME ASSEMBLY EXPLODED VIEW AND PARTS LIST Item Document Title Quantity Number Number B0451 RT. PIVOT SIDE RAIL B0448 RT. CENTER RAIL B0459 RAIL MNT. TUBE B0450 LT. PIVOT SIDE RAIL B0449 VERT. MNT. TUBE B0470 LT. CENTER RAIL V0017 BAGGER TOP V0018...
SECTION III OPERATING INSTRUCTIONS 3-1 General Safety 3-3 Unloading The Collection System Only qualified people familiar with this operator’s manual NOTE: To determine when the collection bags are full, and the mower’s operator’s manual should operate this follow the following steps: machine.
3. Make sure all shields are in place and in good SECTION V condition. Repair or replace any missing or damaged PARTS AND SERVICE shields. 4. Listen for abnormal sounds, which might indicate 5-1 Parts And Service Information loose parts, damaged bearings, or other damage. Correct any deficiency before continuing operation.
To promote safe operation, PECO Inc. supplies safety decals on all products manufactured. Damage can occur to safety decals either through shipment, use or reconditioning. Contact your local Service Center for replacement decals. Part #: R1102 Bad Boy Logo MADE IN MADE IN...
