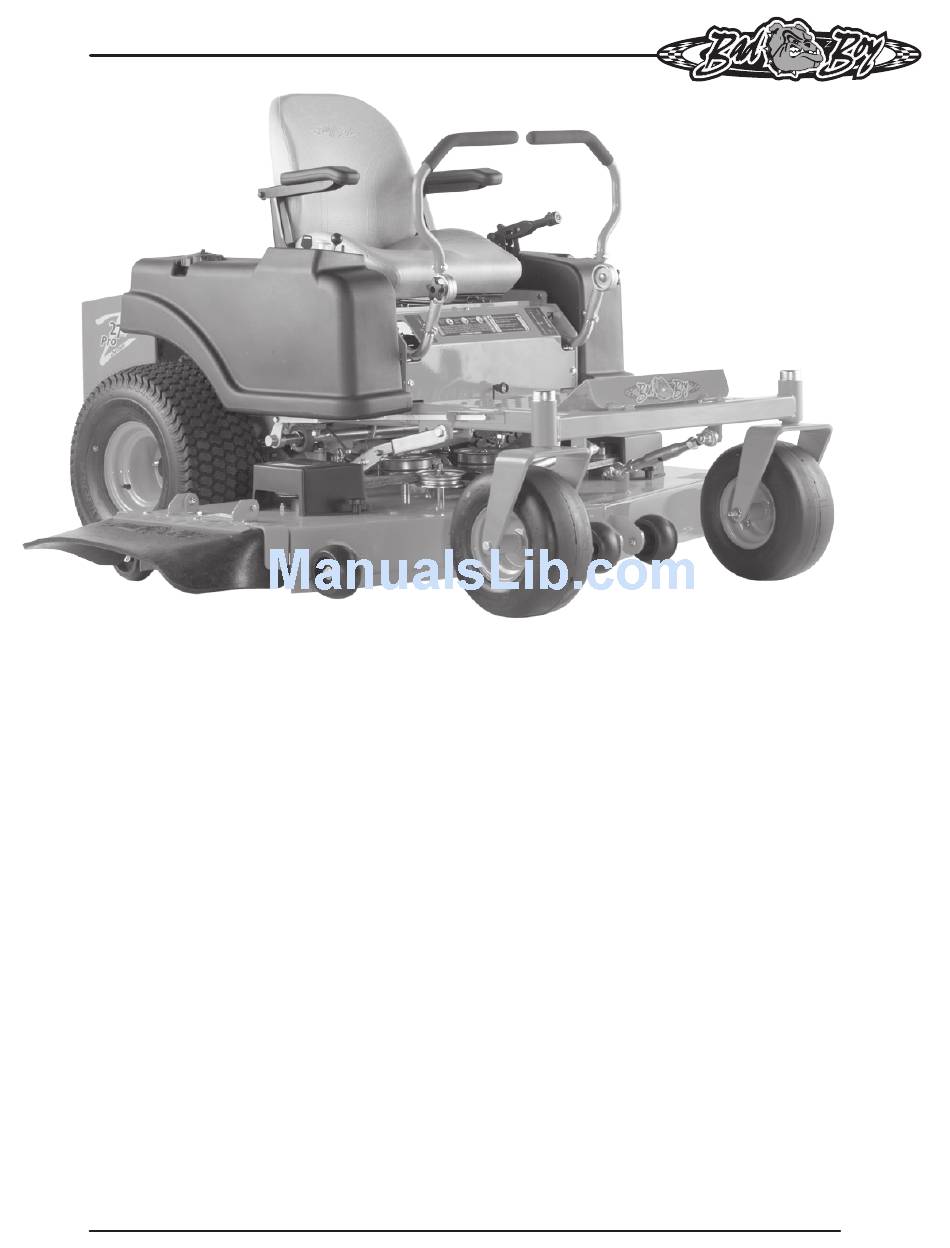

ZT
MODEL MOWER
OWNER'S & PARTS MANUAL
2010 Edition
For additional information, please see us at
www.badboymowers.com
Bad Boy, Inc.
102 Industrial Drive
Batesville, Arkansas 72501
(870) 698-0090
PAGE 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZT and is the answer not in the manual?

Questions and answers

Summary of Contents for Bad Boy ZT

  • Page 1 MODEL MOWER OWNER’S & PARTS MANUAL 2010 Edition For additional information, please see us at www.badboymowers.com Bad Boy, Inc. 102 Industrial Drive Batesville, Arkansas 72501 (870) 698-0090 PAGE 1...
  • Page 2 TABLE OF CONTENTS Basic Information ................... Section 1 (pages 3, 4) Bad Boy Safety Guidelines ................Section 2 (pages 5, 6) Operation ....................... Section 3 (pages 6, 7) Maintenance ......................Section 4 (page 7) Storage and Transportation ................. Section 5 (page 8) Adjustments ....................
  • Page 3 This manual applies to the following equipment: Bad Boy ZT Series ZT 2600 36˝ 26 hp Briggs ELS ZT 2600 50˝ 26 hp Briggs ELS ZT 2300 50˝ 27 hp Kohler ZT 2300 60˝ 27 hp Kohler ALL INFORMATION IN THIS MANUAL...
  • Page 4: Warranty Registration

    Lightning, Pup, AOS, Diesel model serial numbers are found on the SIN plate, located underneath the floor panel. ZT model serial numbers are found on the SIN plate underneath seat. The serial numbers are necessary on the warranty registration form. Also, these numbers can assist you in the ordering of new parts when replacements become necessary.
  • Page 5: Safety Precautions

    SECTION 2: MOWER OPERATION Never allow untrained people to operate this machine. It is the owner’s responsibility to get training and see to it that anyone who has permission to use your machine receives the proper training. Do not mow around people. The factory discharge chute is designed to deflect debris downward, but it could be possible for debris to be thrown in a way that can cause damage to people or property.
  • Page 6 2.23 Safety warning decals are located on the mower and should always be observed and followed. 2.24 Never operate the mower with the discharge chute open. 2.25 Prevent Fires—Remove grass and debris from engine compartment and muffler area, before and after operating machine, especially after mowing or mulching in dry conditions. 2.26 Do not store machine near open flame or source of ignition, such as a water heater or furnace.
  • Page 7 Increase RPM by sliding the throttle to fast position, toward the rabbit. 3.10 Owners must become familiar with the controls before operating a zero-turn radius vehicle. 3.11 Start slowly and build your skill level. Have ample practice before using the machine at full capabilities.
  • Page 8 SECTION 5: MOWER STORAGE Keep machine from collecting debris by storing in a covered area while not in use. 5.2 Fuel can harm your machine if left for more than 30 days without changing. 5.3 Disconnect the negative battery cable when machine will be stored for more than 30 days. 5.4 Always secure machine properly when transporting machine.
  • Page 9 STANDARD HYDRAULIC/ OIL/FILTER SERVICING PROCEDURE 6.12 On all Bad Boy ZT Models, the hydraulic oil filters need to be initially changed when the mower has reached 50 hours of usage. Each subsequent changing of the hydraulic oil and filters needs to occur every 250 hours or once a year. The required hydraulic oil is 20W50 motor oil On all Bad Boy commercial models, the hydraulic oil and filters need to be initially changed when mower has reached 50 hours of usage.
  • Page 10 7.11 A: Maintenance, mowing conditions, temperature, and hours of operations play a huge role in the life of a mower. However, Bad Boy Mowers are without a doubt the strongest, most durable zero-turn mower available. With proper care, your Bad Boy will deliver many years of reliability, productivity, and comfort.
  • Page 11 8.3 Choke Control—A cable is linked to manually operate the engine choke. When the lever is in the down position, the choke is in the off (run) position. When the lever is pulled up, the choke is in the on (start) position. Do not operate the machine in the on (start) position. The choke lever is behind the throttle control.
  • Page 12 9.3 ATTENTION: RETURN BYPASS VALVES TO OPERATING POSITION BEFORE RUNNING MOWER FOLLOWING REPAIRS. 9.4 ZT Models are equipped with two neutral engage/disengage arms, located at the rear of the mower protruding from the frame and under the muffler. By pulling the arms out the mower can be put in a neutral position.
  • Page 13 10.2 Oil Pressure Light—NOT ON ZT MODELS—This light comes on upon placing the ignition switch in the RUN position and stays lit until the engine is running and a safe oil pressure is built up.
  • Page 14 SECTION 11: MOWER BLADE MAINTENANCE 11.1 Check mower blades after each use. This is essential for maintaining well-groomed turf. Keep the blades sharp. If a dull blade is used for cutting, the grass will tear rather than cut. This could damage the grass leaving a brown frayed top on the grass within a few hours. A dull blade will also require more power from the engine.
  • Page 15 PARTS MANUAL FOR YOUR ZT Model Zero Turn Mower PAGE 15...
  • Page 16 PAGE 16...
  • Page 17 PAGE 17...
  • Page 18 PAGE 18...
  • Page 19 PAGE 19...
  • Page 20 PAGE 20...
  • Page 21 PAGE 21...
  • Page 22 PAGE 22...
  • Page 23 PAGE 23...
  • Page 24 PAGE 24...
  • Page 25 PAGE 25...
  • Page 26 PAGE 26...
  • Page 27 PAGE 27...
  • Page 28 PAGE 28...
  • Page 29 PAGE 29...
  • Page 30 NOTES: __________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ PAGE 30...
  • Page 31 Bad Boy, Inc. 102 Industrial Drive Batesville, AR 72501 1.866.622.3269 www.badboymowers.com Technical Support: James Russell ......................Extension 6638 Bill Hurst (bill@badboymowers.com) ............... Extension 6617 Brad Covington ......................Extension 6648 Warranty: Dustin Tissiere (dustin@badboymowers.com) ............Extension 6613 Bill Hurst (bill@badboymowers.com) ............... Extension 6617 Parts: Brad Foree (brad@badboymowers.com) ..............Extension 6637 Robert Patterson (robert.patterson@badboymowers.com)........Extension 6649...
  • Page 32 For additional information, please see us at www.badboymowers.com Bad Boy, Inc. 102 Industrial Drive Batesville, Arkansas 72501 (870) 698-0090 PAGE 32...
