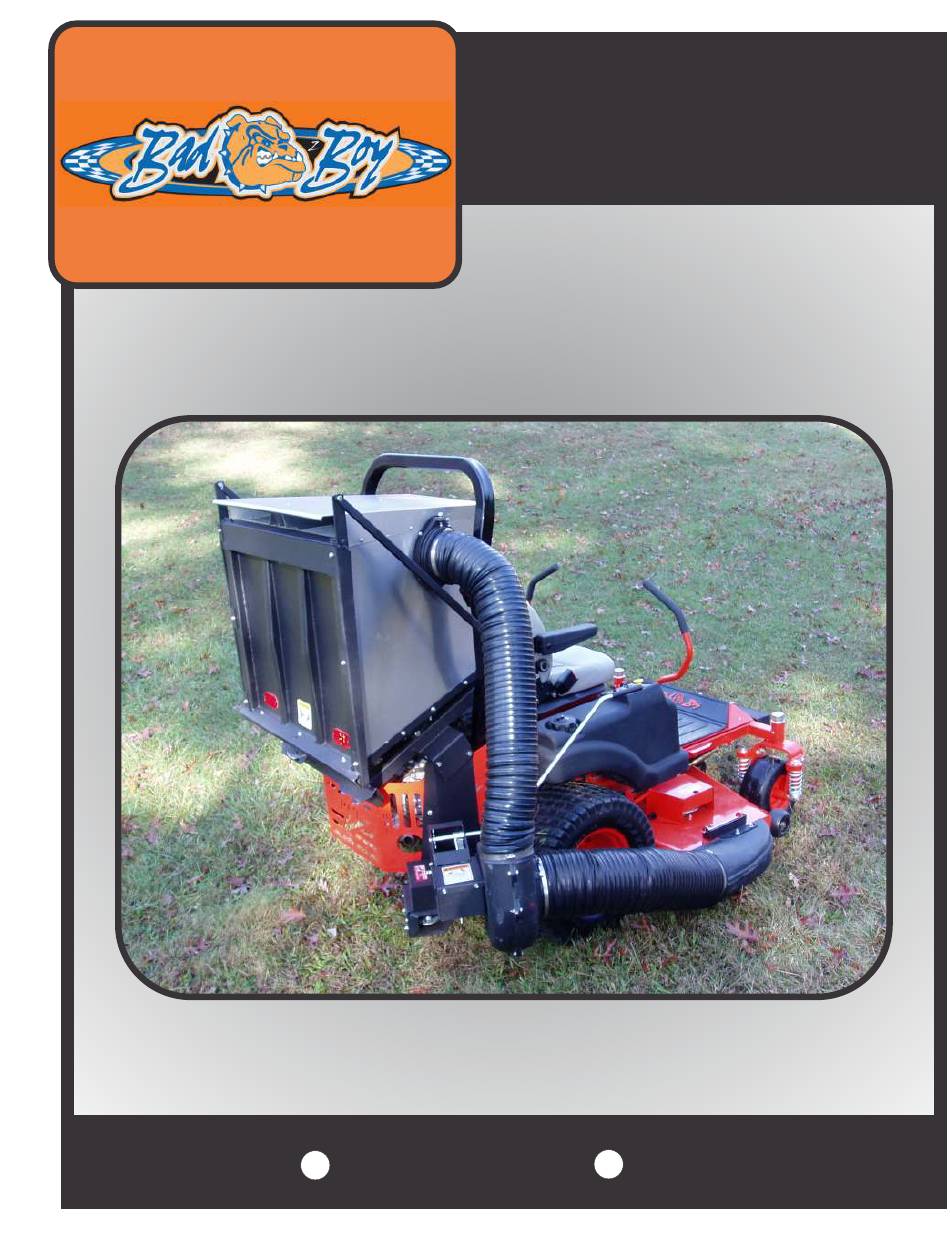

- Page 1 GRASS COLLECTION SYSTEM DESIGNED FOR: MODEL 48721201 BAD BOY PUP SERIES MOWERS OPERATOR’S MANUAL ASSEMBLY OPERATION MAINTENANCE MANUAL PART#: Q0335 $4.00 REV: 0...
-
Page 2: Table Of Contents
PTO GRASS COLLECTION SYSTEM TABLE OF CONTENTS SECTION PAGE SECTION PAGE Safety - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2 2-11 Blower Cone Installation - - - - - - - - - - - - - - - - 13 Safety Alert Symbols - - - - - - - - - - - - - - - - - - - - - - 3 2-12 Impeller Blade Removal/Replacement - - - - - - - 13... -
Page 3: Safety Alert Symbols
SAFETY WARNING! NEVER operate the unit unless the discharge guard and either the deflector assembly or the vacuum collector adapter are fastened securely in place. WARNING! Do not work around the mower deck boot or the blower area until you are certain that the mower blades and the blower impeller have stopped rotating. -
Page 4: Warranty
PECO LIMITED WARRANTY FOR NEW PRODUCTS A. WHAT IS WARRANTED? PECO extends the following warranties to the original purchaser of each new PECO consumer product subject to the following limitations: 1. PRODUCT WARRANTY: Any part of any consumer product, which is defective in material or workmanship as delivered to the purchaser will be repaired or replaced, as PECO elects, without charge for parts or labor, if the defect appears within 12 months from the date of delivery of the product to the original purchaser. -
Page 5: Introduction And Description
(2) flat washers P#(K0131) between clutch and pump pulley, use (1) 7/16”-20 x 4” HHCS P#(K0359) and (1) We are pleased to have you as a Bad Boy customer. 7/16” lock washer P#(K0053) to fasten engine pulley Your collection system has been designed to give you a assembly. -
Page 6: Left Lower Frame Leg Installation
NOTE: Before continuing installation, you must install Figure 3. the Bad Boy Pup Series bolt-on hitch P#(093-1112-00) Drill Hole Here & Fasten w/ for the rear of the mower. Adding this hitch is required for (1) 5/16” x 1-1/4” G8 HHCS mounting the collection system. -
Page 7: Cam Assembly Adjustment
(Figure 7 & 8). Align the holes to each side and fasten by Figure 5. using (2) 3/8”-16 x 3/4” HHCS P#(K1190) and (2) 3/8”-16 Gear Box Assy. flange nuts P#(K1215) per side. Tighten all nuts and bolts. Fasten w/ Figure 7. - Page 8 Figure 9. Figure 12. Aluminum Grass Container Assy. Lift Handle Assy. Handle Grip Handle Mount Bracket Latch Rod Figure 10. Aluminum Grass Container With Handle Attached Figure 11. Latch Hook Mechanism Assembled...
- Page 9 Aluminum Grass Container Exploded View...
- Page 10 Exploded Parts View Exploded View Of The A0610 - PTO Assembly...
- Page 11 Parts View Item Part No. Qty. Description Item Part No. Qty. Description 1 - - - - - K1125 - - - - - - - 7 - - - - - 1/4”-20 x 1” HHCS 39 - - - - K0353 - - - - - - - 2 - - - - - 1/4”-20 x ½” HHSTS 2 - - - - - E4004F - - - - - - 1 - - - - - BLOWER HOUSING 40 - - - - K1215 - - - - - - - 2 - - - - - 3/8”-16 FLANGE NUT FRONT...
-
Page 12: Aluminum Grass Container To Unit Installation
Hook the other end of the spring into the open hole in 2-10 Boot To Mower Deck Installation the handle mount bracket. Fasten the handle to the grass container frame by using (1) 3/8”-16 x 2” HHCS P#(K1208) and (2) 3/8”-16 flange nuts P#(K1215). At this 60”... -
Page 13: Blower Cone Installation
Figure 15. lock bushing, forcing the blade to break-away from the taper-lock bushing. If the impeller will not move, hit the base of the impeller, between each vein, with a hammer, then try again. To Replace: Place impeller blade over the engine shaft (Figure 18). -
Page 14: Lengths Of Hose Adjustment
2-13 Lengths Of Hose Adjustment 2-15 Lower Hose To Blower Cone Installation The hoses in steps 2-14 and 2-15 must be cut to fit your machine. Follow steps 2-14 and 2-15. Do not cut the Slide a 7”-8” hose clamp P#(J6006) over both ends of hoses until you have tried to fit them on your machine. -
Page 15: Operating Instructions
If there are any portions of the hose that have handle towards the mower. been torn or worn through, replace with genuine Bad Boy parts. WARNING: The blower will continue to spin. DO NOT TOUCH the blower, pulleys, or the belt until the tractor is After Each Use: turned off. -
Page 16: Lubrication
3. Check belt for proper tension. 5-1 Parts And Service Information 4-2 Lubrication Bad Boy collection system owners should record the name and telephone number of their Service Center. Your Service Center will be happy to supply replacement NOTE: Use only white lithium based grease for parts, accessories, and do any service or repairs to your lubrication of the shaft on the blower assembly. -
Page 17: Safety Decals
SAFETY DECALS To promote safe operation, Bad Boy supplies safety decals on all products manufactured. Damage can occur to safety decals either through shipment, use or reconditioning. Contact your local Service Center for replacement decals. Part #:R1083 Part #: R1049... -
Page 18: Torque Specifications
Bad Boy... - Page 19 NOTES...
- Page 20 Bad Boy Wand Kit! With your Bad Boy Wand Attachment you will double the ability of your Bad Boy Lawn Vac. Using the same powerful vacuum/blower that makes your Lawn Vac work so well, you will be able to get to all those hard-to-reach places where you needed a rake or broom before.
