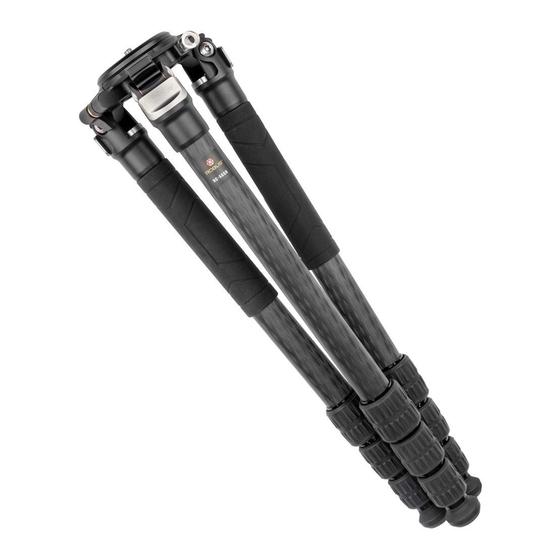

- Page 1 3 & 4 SECTION CARBON FIBER VANTAGE SERIES 3 & 5...
- Page 2 Specifications RC-5558 RC-5558-3 RC-5570 RC-8860 RC-8880 Maximum Load 55 lb. (25 kg) 55 lb. (25 kg) 55 lb. (25 kg) 77 lb. (34. 9 2 kg) 77 lb. (34. 9 2 kg) Maximum Height 58. 5 in. (148. 6 cm) 58.
- Page 3 Attaching a Head to the Flat Plate Remove the rubber guard to reveal the 3/8-16 mounting post. Remove the flat plate by following the instructions above. Screw the flat plate onto the bottom of the head. Use the included hex key to tighten the set screw if necessary.
- Page 4 Extending the Tripod Legs Turn each twist-lock clockwise, and extend each leg to the desired length. Turn the twist-locks counterclockwise to tighten.
- Page 5 Adjusting the Leg Angles Adjust the leg angle by lifting 85° up the leg angle lock. Move the leg to the desired angle, and press down on the lock to secure the leg.
- Page 6 Swapping the Feet The tripod comes with the rubber feet installed. To swap the feet, unscrew the rubber feet, and replace them with the included wide feet or spikes. To tighten or loosen the spikes and wide feet , use the included smaller hex key.
- Page 7 Swapping the Flat Plate and Video Bowl Press the plate lock in so the gears engage, and swing the lock up to loosen the plate. Pull the platform release, and lift the flat plate from the yoke. Insert the video bowl into the yoke, and press it into place until it locks.
- Page 8 To obtain warranty coverage, contact the Robus Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Robus along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’ s own risk and expense.
