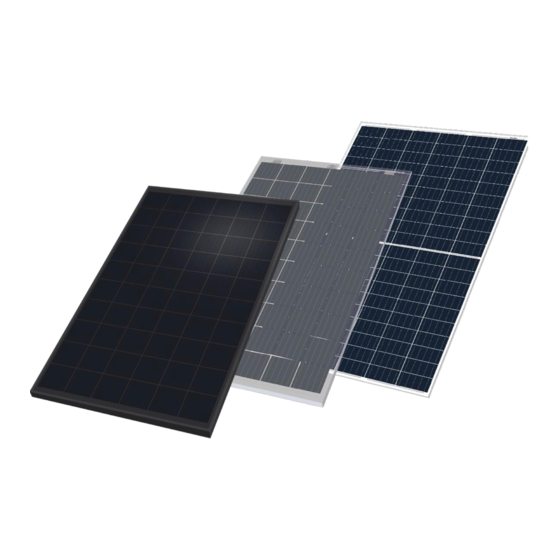

- Page 1 PHOTOVOLTAIC MODULES Installation manual Power-60 (-Standard, -MAXIM, -ALPIN); Glas-60 (with/without frame); Project-60 halfcut...
-
Page 2: Table Of Contents
Contents General module handling ........................3 Product marking, product label ......................3 Technical data ............................. 3 Safety and installation instructions for mounting .................. 4 Electrically ............................4 Mechanically ............................ 5 Advices double glass modules without frame ..................5 Fixing points of the KIOTO modules ....................6 Electrical connection of the photovoltaic generator ................ -
Page 3: General Module Handling
Please read these installation instructions carefully before installing the photovoltaic modules. The non – observance could lead to damage to persons and / or goods. Further the guarantee and the product warranty could expire. The installation of photovoltaic modules requires technical knowledge;... -
Page 4: Safety And Installation Instructions For Mounting
The use of the modules relates to class A: dangerous voltage (IEC 61730: higher than 50V DC, EN 61730: higher than 120V), dangerous power applications (higher than 240W) which are general accessible, according to EN IEC 61730 -1 and -2. Protection class II regulations are also fulfilled. -
Page 5: Mechanically
used module type and the local temperature conditions. The maximum system voltage must not be exceeded! The maximum reverse over current is 15A. When connecting more than two strings in parallel this value could be exceeded. Therefore, string fuses with a rating of maximum 15A have to be installed. -
Page 6: Fixing Points Of The Kioto Modules
Any technical advice in verbal or written form or in any other way, is given on the basis of the actual knowledge, but without any warranty and / or liability. A project-related, static dimensioning and the glass-technically correct use of the glasses is not carried out or checked by us. -
Page 7: Detailed Information About The Connection Technique, Solar Cable And Connectors/Plugs
KIOTO modules are equipped with the following cable lengths: Modul series Cable length Power-60 Power-60-ALPIN Power-60-MAXIM 2x 1000mm Glas-60 framed Project-60 340Wp halfcut Project-60 380Wp halfcut 2x 1150mm Glas-60 unframed 2x 350mm At strong currents, as can occur in parallel connections, the risk of warming of the connections is higher. -
Page 8: Laying Of The Solar Cables
Laying of the solar cables Keep the length of cable connections as short as possible, to optimize the energy yield and minimize sources of errors. Consider this point while planning and sizing the generator. Fix loose solar cables after mounting to avoid damaging. Use only adequate fixing material (conduits in the mounting profiles or UV–resistant plastic tubes). -
Page 9: Commissioning Of The Photovoltaic Power Plant
Commissioning of the photovoltaic power plant Before initiation of the generator, please check all components (observe the installation instructions of other components), the electrical connection and all plugs, that they are connected correctly and ensure that the connection is tight. Solar generators with a direct current voltage from more than 50V must be installed/initiated by qualified persons! The open circuit voltage of every serial connection should be checked after initiation. - Page 10 Seite 10 von 12 KIOTO_Installation_manual_2021 © KIOTO Photovoltaics GmbH, Solarstraße 1, 9300 Sankt Veit/Glan - Österreich 06/2021...
- Page 11 Seite 11 von 12 KIOTO_Installation_manual_2021 © KIOTO Photovoltaics GmbH, Solarstraße 1, 9300 Sankt Veit/Glan - Österreich 06/2021...
- Page 12 KIOTO Photovoltaics GmbH Solarstraße 1, Industriepark A-9300 St.Veit/Glan T: +43 (0) 4212 28 300-0 E: office@kioto.com www.kiotosolar.com...
