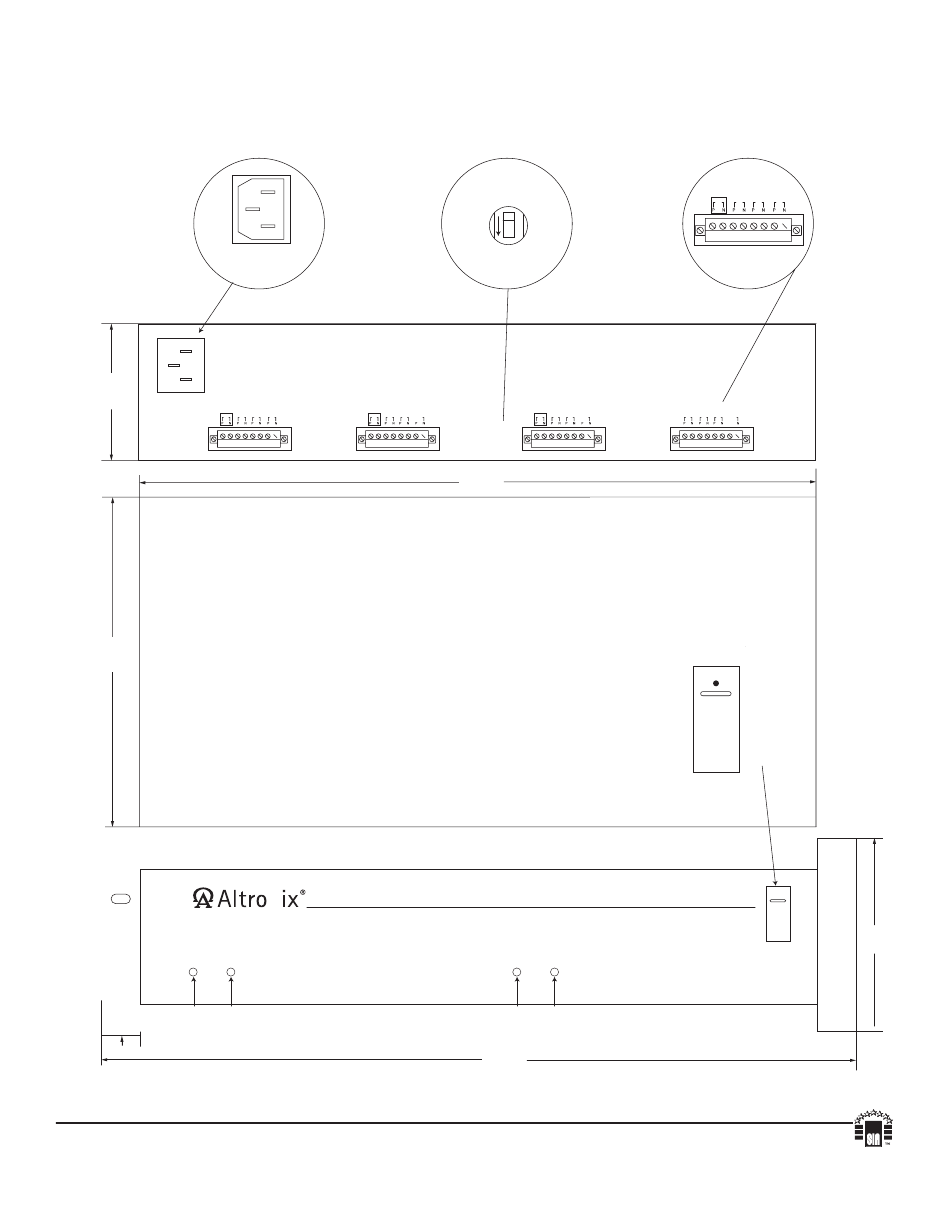

Rack Mechanical Drawing and Dimensions (H x W x D approximate):
Unit with Rack Brackets Attached:
Fig. 3
3a
IEC 320Connector
115VAC 60 Hz.
3.26"
83mm
4a
8.5"
216mm

Illuminated master power disconnect circuit breaker:

OFF position - Switch not illuminated. Outputs not powered.
RESET (ON) position - Switch illuminated. Outputs powered.
Circuit breaker tripped - Switch not illuminated. Power LEDs on
faceplate are not illuminated. Outputs not powered.
To reset circuit breaker set power switch to the ON (RESET) position.
LED LED
1" (25.4mm)
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
web site: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A.
IIR1224DC16CB
- 4 -
Unit:
3.26" x 19.125" x 8.5" (83mm x 486mm x 216mm).
4b 4c 4d 3a 3b 3c 3d
Available from A1 Security Cameras
www.a1securitycameras.com email: sales@a1securitycameras.com
5.21" x 19.125" x 8.5" (132.3mm x 486mm x 216mm)
3b
REAR
2a 2b 2c 2d
17.625"
447.7mm
BOTTOM
FRONT
LED LED
19.125"
486mm
J16Q
3c
1a 1b 1c 1d
1a 1b 1c 1d
3d
5.21"
132.3mm
MEMBER
R1224DC16CB
