Mounting Options; Rack Mount Installation; Shelf Installation - Altronix R1224DC16CB Installation Manual

1. Set illuminated master power disconnect circuit breaker to the (OFF) position (Fig. 3d, pg. 4).
2. Eliminate the trouble condition (short circuit or overload).
3. Allow 1 minute for PTC to cool off (reset).
4. Set illuminated master power disconnect circuit breaker to the (ON) position (Fig. 3d, pg. 4).
5. All power LEDs will illuminate (Fig. 3, pg. 4).
WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture.

Rack Mount Installation

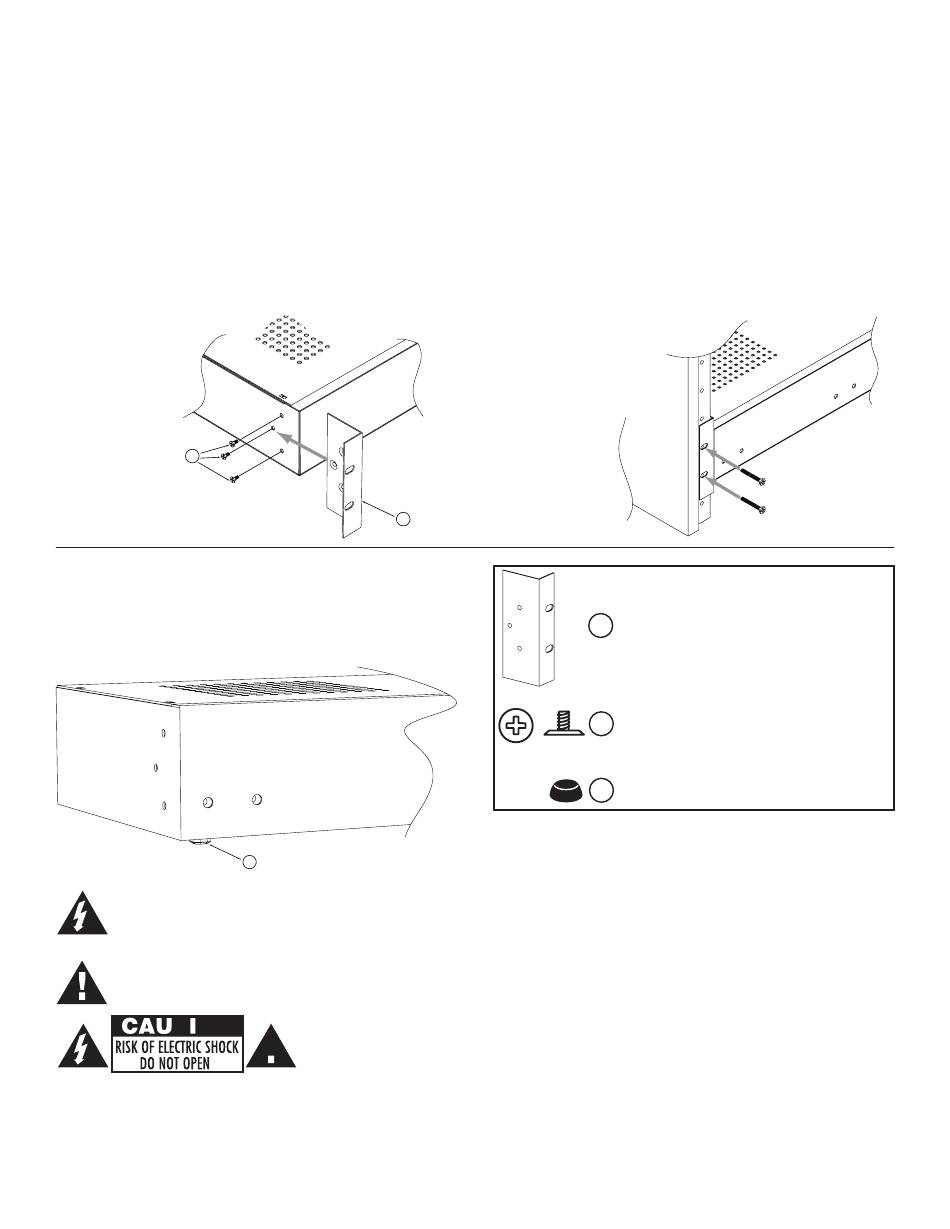

1- Install mounting brackets (A) on the left and right side of rack chassis using the
two (2) flat head screws (B) (included) (Fig. 1a).
3- Place unit into desired EIA 19" rack position and secure with mounting screws (not included) (Fig. 1b).
Fig. 1 1a
B

Shelf Installation

1- Position and affix rubber pads (C) (included) at each
corner on the bottom of the unit (Fig. 2).
2- Place unit in desired location.
Fig. 2
The lightning flash with arrow head symbol within an equilateral triangle is intended to alert the user to the
presence of an insulated DANGEROUS VOLTAGE within the product's enclosure that may be of sufficient
magnitude to constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
R1224DC16CB

Mounting Options:

Top
Front
A
C
CAUTION: To reduce the risk of electric shock do not open enclosure. There are
no user serviceable parts inside. Refer servicing to qualified service personnel.
Available from A1 Security Cameras
www.a1securitycameras.com email: sales@a1securitycameras.com
1b
Mounting Hardware
A Four (4) mounting brackets.
Eight (8) flat head screws
B
for mounting brackets.
C
Four (4) rubber pads.
Top
Front
(Included):
- 3 ­
