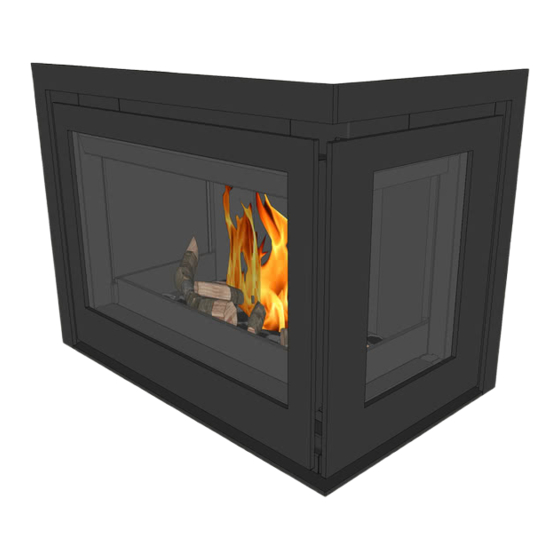

barbas UNILUX-6 Instructions For Use & Maintenance Manual

Hide thumbs Also See for UNILUX-6:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTIONS FOR USE & MAINTENANCE MANUAL
UNILUX-6 265 Left/Right
Barbas wishes you many cosy evenings with your new appliance
This document is an essential part of your appliance.
Read it carefully before use of the appliance and keep it in a safe place!
Version number: 04 - 341937
Date: 28-03-2019
Wood-burning
appliance
Serial number:
Production date:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UNILUX-6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for barbas UNILUX-6

Summary of Contents for barbas UNILUX-6

  • Page 1 UNILUX-6 265 Left/Right Wood-burning appliance Barbas wishes you many cosy evenings with your new appliance This document is an essential part of your appliance. Read it carefully before use of the appliance and keep it in a safe place! Version number: 04 - 341937...
  • Page 3 Name, registered trade name or registered trade mark Barbas Bellfires BV; Hallenstraat 17; 5531 AB Bladel; The Netherlands and contact address of the manufacturer as required pursuant to Article 11(5)
  • Page 4 Name, registered trade name or registered trade mark Barbas Bellfires BV; Hallenstraat 17; 5531 AB Bladel; The Netherlands and contact address of the manufacturer as required pursuant to Article 11(5)

  • Page 5: Table Of Contents

    UNILUX-6 265 Left/Right CONTENTS Page 1. INTRODUCTION ..................2. SAFETY ...................... 3. OPERATION ....................4. USING THE APPLIANCE FOR THE FIRST TIME ........5. USE ......................6. FUEL ......................7. MAINTENANCE ..................8. FREQUENTLY ASKED QUESTIONS ............9. TECHNICAL DATA ..................
  • Page 6 UNILUX-6 265 Left/Right Instructions for use...

  • Page 7: Introduction

    This quality product will provide you with many years of enjoyment due to the fl ame effect and warmth that it provides. The Barbas Unilux-6 265 Left and the Barbas Unilux-6 265 Right have been recommended as suitable for use in smoke control areas when burning wood logs.

  • Page 8: Safety

    Ensure that the room in which the appliance is situated has adequate ventilation. It is essential that the appliance, the fl ue and combustion air supply are cleaned and inspected annually by a Barbas dealer/specialist. The safe operation of the appliance will thus remain guaranteed. Instructions for use...
  • Page 9 UNILUX-6 265 Left/Right The appliance must never be used with the door open or the door glass removed. Wood and wood briquettes may be stoked in the appliance. Coals can’t be burned in the appliance. Avoid over-loading (white burning glow), caused, for example, by lengthy burning with a fully open primary air vent (combustion air supply slider all the way to “...

  • Page 10: Operation

    UNILUX-6 265 Left/Right OPERATION Handle Ceramic heat resistant glass Convection air outlet opening (appliance) Outlet opening (2x grate) (chimney breast) ventilation air chimney breast Outlet opening (2x grill convection set) (chimney breast) convection air Grate Ashtray Inlet opening (2x grate)(chimney breast) ventilation air chimney breast...

  • Page 11: Using The Appliance For The First Time

    UNILUX-6 265 Left/Right USING THE APPLIANCE FOR THE FIRST TIME GENERAL Allow your home to dry properly, after you have had your chimney breast modifi ed or newly built. Walls which have not been allowed to dry properly are a magnet for dust such as any smoke particles created when stoking up the appliance or suddenly opening the door.
  • Page 12 UNILUX-6 265 Left/Right 4.3 INSPECTION OF THE APPLIANCE BEFORE FIRST USE Check all available functions before using the appliance for the fi rst time. • Check the opening and closing operation of the door. Turn the handle all the way down: Door is locked.
  • Page 13 UNILUX-6 265 Left/Right • Check whether the 2 baffl e plates are located correctly in the supports. • Check the operation of the slider for the regulation of the combustion air intake (middle below the window). • Check whether the ashtray is completely empty.

  • Page 14: Use

    UNILUX-6 265 Left/Right 5.1 VENTILATION If wood is to burn, it needs air. For each kilo of wood that you put on the appliance (door closed), 10 - 15 m of extra air is needed. That means about 35 m...
  • Page 15 UNILUX-6 265 Left/Right 5.3 INSTRUCTIONS WHILE STOKING Using the air supply slider you can adjust the air supply for further combustion. Make sure the appliance burns quietly. Note: Once you have got the appliance going, leave the air supply slider in the centre position for optimal combustion.
  • Page 16 UNILUX-6 265 Left/Right Control range of primary air supply (by grate) Control range of secondary and tertiary air supply Combustion air supply slider Centre position We recommend that you maintain a substantial layer of ash (2 - 3 cm). This not only forms a protective layer for the base of the appliance but also signifi...
  • Page 17 UNILUX-6 265 Left/Right The appliance may only be positioned in a place where the location, construction and activity in the room can accommodate it without danger. Ventilation When using the appliance, ensure a good supply of fresh air, particularly if the combus- tion air is drawn from the room itself.
  • Page 18 UNILUX-6 265 Left/Right 5.6 INCREASE THE FLUE DRAUGHT If there is too much fl ow resistance in the chimney, causing insuffi cent fl ow of the fl ue gasses, one can increase the chimney draught. To do this, remove the upper baffl e from the appliance and break out with a pair of pliers one or metal strips from the baffl...
  • Page 19 UNILUX-6 265 Left/Right GENERAL HEATING TIPS • Burn dry wood only. Damp wood not only burns poorly, it causes more pollution in the appliance (window), the chimney, your room (when opening the door of the appliance, for instance) and the environment. Wood can only be classifi ed as dry if it has been stored under a Dutch barn for at least two years (not covered with plastic).
  • Page 20 UNILUX-6 265 Left/Right OUTPUT In practice, combustion is all about loss. This entails: • Loss through excess heat leaving the chimney, rather than going into the room. • Loss through insuffi cient combustion, such as CO (carbon monoxide) and soot particles.

  • Page 21: Fuel

    If this happens, there is a risk of fi re. It may also damage your appliance and chimney. BARBAS will not assume liability for damage caused by overheating. Burning one layer of wood can lead to varying outputs. When used correctly, one load will burn in around 45 minutes.
  • Page 22 UNILUX-6 265 Left/Right Per fi lling: (= for 45 minutes) Wood: 2 blocks each around 1.1 kg Briquettes: 2 blocks each around 0.75 kg Dimensions wood block: c. 30 cm long and 25 cm perimeter ê The maximum burning load is based on a nominal capacity of 9 kW and a effi...

  • Page 23: Maintenance

    UNILUX-6 265 Left/Right MAINTENANCE • Emptying the ashtray • Regularly check how much ash is in the ashtray. • Make sure the ashtray is never more than ¾ full. If the ashtray is more than ¾ full, it can obstruct the fl...
  • Page 24 • Sliders/dampers Check function annually • Convection channels Clean annually • Paint Check annually, if necessary touch up with BARBAS heat-resistant paint (do not paint when the appliance is in use!) • Parts Individual parts for replacement/accessories are available from your BARBAS dealer Use only original parts •...

  • Page 25: Frequently Asked Questions

    UNILUX-6 265 Left/Right FREQUENTLY ASKED QUESTIONS How often should I have my chimney swept? At least once a year. If you use your appliance more than three times a week on average, have your chimney swept more often. Have the chimney swept by a recognised company.
  • Page 26 Can a wood-burning appliance/fi replace insert be connected to a central heating installation? The Barbas range does not have any appliances that can be connected to central heating installations. We do not advise attempting it!! How do I know if I’m heating correctly? Follow the instructions in this manual.
  • Page 27 UNILUX-6 265 Left/Right Can I leave my appliance unattended? Only do this when the appliance is burning quietly, with just a little wood, with a closed door and with the combustion air supply slider in the centre position between “ + ” and “...
  • Page 28 UNILUX-6 265 Left/Right Decomposition At moderate - high temperatures (150°C - 350°C), the decomposition process can be discerned. This is when the chemical structure of the fuel breaks down. This process involves the creation of volatile compounds such as carbon monoxide (CO), water...

  • Page 29: Technical Data

    UNILUX-6 265 Left/Right TECHNICAL DATA Combustion: Measured in compliance with EN 13229 : 2001 and EN 13229 - A2 : 2004 Fuel Wood Nominal output 9 kW Effi ciency Emissions (dry, at 13% O , 273 K, 1013 hPa): Carbon monoxide (CO) 0.10%;...

  • Page 30: Warranty Terms

    1.1. If Barbas Bellfi res B.V. determines that the Barbas appliance you have purchased is defective as a result of a fl aw in the construction or material, Barbas Bellfi res B.V. guarantees to repair or replace the appliance free of charge, without charging any costs for labour or spare parts.
  • Page 31 Article 5: Warranty period 5.1. This warranty will only be granted during the warranty period. 5.2. The body of the Barbas appliance is guaranteed for a period of 10 years against construction and/or material faults, starting from the moment of purchase.
  • Page 32 Your Barbas dealer 04 - 290319 - 341937...
