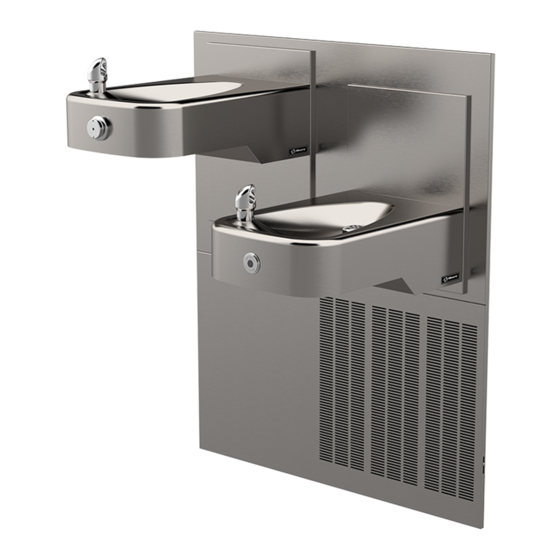

Haws H1117.8HO Quick Start Manual

THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
NOTES:
1. HOLD ROUGH-IN DIMENSIONS ± 1/8" (3.2mm)
2. WHEN INSTALLING THIS UNIT, LOCAL, STATE, OR
FEDERAL CODES SHOULD BE ADHERED TO. FOR
INSTALLATION DIMENSIONS (LOCATIONS), WASTE
AND SUPPLY REQUIREMENTS OTHER THAN SHOWN,
DIMENSIONS MARKED (*) MUST BE ADJUSTED
ACCORDINGLY.
3 REFER TO MTGFR.17 INSTALLATION DRAWING FOR
FRAME ROUGH-IN DIMENSIONS.
4 REFER TO 5874 SERIES OPERATION AND
MAINTENANCE MANUAL FOR PUSH BUTTON AND
VALVE INSTALLATION/MAINTENANCE INSTRUCTIONS.
5 ROUGH-IN DIMENSIONS FOR FOUNTAIN HEIGHTS:
CHILD WHEELCHAIR HEIGHT: SEE SHEET 3 FIG 1
WASTE: 26-1/4" (667mm)
FOUNTAIN: 24" (610mm)
BUBBLER: 29-7/8" (756mm)
ADULT WHEELCHAIR HEIGHT: SEE SHEET 3 FIG 2
WASTE: 29-1/4" (743mm)
FOUNTAIN: 27" (686mm)
BUBBLER: 32-7/8" (832mm)
ADULT STANDING HEIGHT: SEE SHEET 3 FIG 3
WASTE: 34-3/4" (883mm)
FOUNTAIN: 32-1/2" (826mm)
BUBBLER: 39-3/8" (972mm)
6. REFER TO MODEL H1117.8HO/H1117.8HO2
INSTALLATION DRAWING SHEET 3 OF 3 (ON HAWS
WEBSITE WWW.HAWSCO.COM) FOR PERMISSABLE
BOWL MOUNTING PATTERNS. TWO WHEELCHAIR
HEIGHT FOUNTAINS CANNOT BE MOUNTED SIDE BY
SIDE PER ANSI A117.1
NOTES CONTINUED ON SHEET 3 OF 3
SMALL BACK
PANEL
(SUPPLIED)
39
*
[991mm]
7
(1 )
16
[36mm]
9VDC SOLENOID VALVE
(ROUGH-IN DIMENSIONS APPLY TO BOTH MODELS WITH EXCEPTIONS NOTED ON SHEET 2)
2021 Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
C
13
100-277VAC-9VDC
TRANSFORMER
AND DC CABLE
(SUPPLIED)
MUST BE PROTECTED
FROM DIRECT
CONTACT WITH WATER
12 12
[305mm] [305mm]
31-1/8
[791mm]
ROUGH-IN
16"
406mm
4
GRILLE
(SUPPLIED)
32
[813mm]
MODEL H1117.8HO SHOWN
MODEL H1117.8HO2 ON SHEET 2
R
WALL FACE STUD
BACK
IMPORTANT: MOUNTING FRAME
PANELS
MUST BE INSTALLED SO THAT
FRAME FLANGE BUTTS AGAINST
FINISHED WALL FACE.
FRAME
FLANGE
DETAIL A
5
*
ADULT
STANDING
BUBBLER
*
CHILD/ADULT
BUBBLER
15° 14
5
*
ADULT
STANDING
FOUNTAIN
2-7/8"
2X
[73mm]
LARGE BACK
PANEL (SUPPLIED)
CONNECT 3/8" PUSH-TO-CONNECT TEE
TO 3/8" X 1/4" REDUCER THEN TO 1/4"
LOCATE AND INSTALL DIAMETER OUTLET TUBE ON HCR8
ELECTRICAL WATER CHILLER
TRANSFORMER 13
WITHIN WALL
SMALL BACK
PANEL
SENSOR
EYE
13
36-3/16
*
[920mm]
ROUGH-IN
DETAIL B
1-3/4
*
[44mm]
ECN NO.
5706
DRAWN:
FV
APPROVED:
FV
[305mm]
(4)
CLEARANCE
[10
2mm]
MOUNTING
FRAME
WIDTH
1
2
[13mm]
18 7 8
1
[480mm]
4
4
A
[108mm]
REGULATOR
5
3
10
4
[272mm]
1-1/4" NPT TRAP
5
* (SUPPLIED)
CHILD/ADULT
3
FOUNTAIN
B
FLOOR
LINE
3
*
WALL
SURFACE
ELECTRICAL
3
ACCESS
TRANSFORMER
GRILL
+Vo
AC(N)
(SUPPLIED)
AC(L) -Vo
2X MACHINE
SCREW
(SUPPLIED)
WHITE WIRE
MOUNTING
FRAME
TO PUSH
BUTTON
FOUNTAIN
2X SHEET METAL
SCREW
VALVE
2X MOUNTING CLIP
INSIDE OF FRAME
(SUPPLIED)
FROM CHILLER OUTLET
SENSOR WIRING / SUPPLY PLUMBING
REVISED PER BY: MODEL(S)
ECN: 5706 FV
H1117.8HO/H1117.8HO2
DATE: CHK'D.:
06/28/21 DP
DATE:
06/28/21 SCALE: NA DRAWING TYPE:
12
INLINE STRAINER,
1/4" OD TUBE X
3/8" OD TUBE
INLET (SUPPLIED)
3/8" OD TUBING,
INSULATION, TEE
& FITTING
(SUPPLIED)
1-1/4" IPS WASTE
(NOT SUPPLIED)
SUPPLY STOP AND
3/8" OD TUBING
(NOT SUPPLIED)
HCR8
CHILLER
REQUIRED -
SOLD
SEPARATELY
5
*
ADULT
STANDING
WASTE
5
*
CHILD/ADULT
WASTE
25
*
[635mm]
SUPPLY
CHILLER SUPPORT TRAY 12
MTGFR.17 MOUNTING FRAME
REQUIRED - SOLD SEPARATELY
BLACK WIRE
SENSOR
PRESSURE
REGULATOR
TO
SOLENOID BUBBLER
VALVE HEAD
SCHEMATIC
1455 KLEPPE LANE
SPARKS, NEVADA 89431
(775) 359-4712 FAX (775) 359-7424
E-MAIL: HAWS@HAWSCO.COM
WEBSITE: WWW.HAWSCO.COM
PART NUMBER
0510001207.D
REVISION
1
1 3
INSTALLATION SIZE: A SHEET OF
