LG L1510BF User Manual

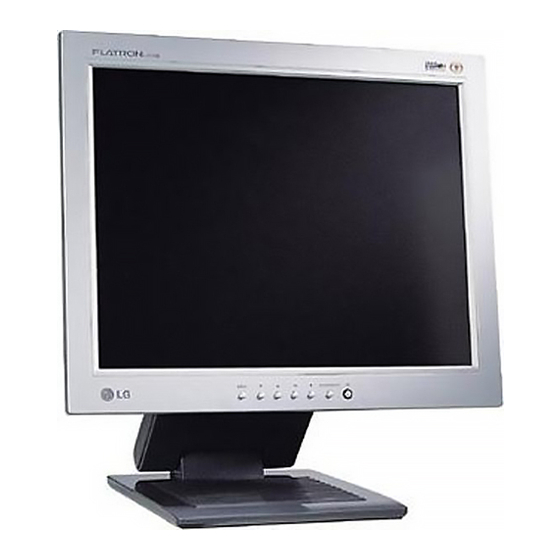

15” lcd monitor
Hide thumbs Also See for L1510BF:
Table of Contents

Advertisement

Quick Links

Test Report No.: GETEC-E3-05-055
FCC Class B Certification
APPENDIX H
: USER'S MANUAL
EUT Type: 15" LCD Monitor
FCC ID: BEJL1510BFN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L1510BF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG L1510BF

Summary of Contents for LG L1510BF

  • Page 1 Test Report No.: GETEC-E3-05-055 FCC Class B Certification APPENDIX H : USER’S MANUAL EUT Type: 15” LCD Monitor FCC ID: BEJL1510BFN...
  • Page 2 User’s Guide L1510BF ake sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for furture reference. ee the label attached on the product and give the information to your dealer when you ask for service.

  • Page 3: Important Precautions

    Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential eletrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing.
  • Page 4 Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

  • Page 5: Connecting The Display

    Connecting the Display Before setting up the product, please make sure the power to the product, PC, and other attached devices is turned off. Positioning your display Remove the tape. <Image 2> <Image 1> Do not remove the tape Put the set as the with the set up side picture below down as the <Image 2>...

  • Page 6: Using The Computer

    Connecting the Display Using the Computer Connect the signal cable. When attached, tighten the thumbscrews to secure the connection. Connect the power cord into a proper power outlet that is easily accessible and close to the display. NOTE This is a simplified representation of the rear view. This rear view represents a general model;...
  • Page 7 Connecting the Display To Use Touch Screen Install the 'Touch Screen Install Driver' on your PC. Refer to the Touch Screen manual provided separately for installation details. After installing the program, connect a USB cable between the screen and your PC.

  • Page 8: Control Panel Functions

    Control Panel Functions Front Panel Controls ightView Control Function Use this button to turn the display on or off. Power Button This Indicator lights up green when the display Power Indicator operates normally(On Mode). If the display is in Sleep Mode (Energy Saving) mode, this indicator color changes to amber.
  • Page 9 Control Panel Functions Control Direct Access Function This feature lets you easily select the best desired image condition optimized to the environment NIGHT (ambient illumination, image types etc). • DAY : Bright ambient illumination • NIGHT : Dark ambient illumination •...

  • Page 10: On Screen Display (Osd) Control Adjustment

    On Screen Display (OSD) Control Adjustment Screen Adjustment Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system. A short example is given below to familiarize you with the use of the controls. The following section is an outline of the available adjustments and selections you can make using the OSD.
  • Page 11 On Screen Display(OSD) Selection and Adjustment The following table indicates all the On Screen Display control, adjustment, and setting menus. Main menu Sub menu Reference To adjust the brightness, contrast PICTURE BRIGHTNESS and gamma of the screen CONTRAST GAMMA COLOR To customize the color of the PRESET 6500K screen...

  • Page 12: On Screen Display(Osd) Selection And Adjustment

    On Screen Display(OSD) Selection and Adjustment You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu. NOTE OSD (On Screen Display) menu languages on the product may differ from the manual.
  • Page 13 On Screen Display(OSD) Selection and Adjustment To improve the clarity and stability of the screen OSD Adjust Description CLOCK To minimize any vertical bars or T R A C K I N G stripes visible on the screen background.The horizontal screen size will also change.

  • Page 14: Troubleshooting

    Troubleshooting Check the following before calling for service. No image appears No image appears Is the power cord of the Check and see if the power cord is connected display connected? properly to the power outlet. Is the power indicator Press the Power button.

  • Page 15: Display Image Is Incorrect

    Troubleshooting Display image is incorrect Display Position is Press the AUTO/SELECT button to incorrect. automatically adjust your display image to the ideal setting. If the results are unsatisfactory, adjust the image position using the H position and V position icon in the on screen display. Check Control Panel -->...

  • Page 16: Have You Installed The Display Driver

    Troubleshooting Have you installed the display driver? Have you installed the Be sure to install the display driver from the display driver? display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lge.com. Do you see an Please check if the video card in your PC "Unrecognized monitor,...

  • Page 17: Specifications

    Specifications 15 inches (38.1cm) Flat Panel Active matrix-TFT LCD Display Anti-Glare coating 15 inches viewable 0.297 mm pixel pitch 30 - 63kHz (Automatic) Horizontal Freq. Sync Input Vertical Freq. 56 - 75Hz (Automatic) Input Form Separate TTL, Positive/Negative 15 pin D-Sub Connector Signal Input Video Input Input Form...

  • Page 18: Preset Modes (Resolution)

    Specifications Preset Modes (Resolution) Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz) 31.468 640 x 350 31.468 720 x 400 31.469 640 x 480 VESA 35.000 640 x 480 66.67 37.861 VESA 640 x 480 72.8 37.500 VESA 640 x 480 VESA 35.156 800 x 600...
  • Page 19 Specifications VESA wall mounting Connect the monitor to the VESA compliant stand (wall-mount type or stand alone type). For further information, on mounting to different stands, call our service center or monut manufacturer. Kensington Security Slot- optional A security cable can be purchased and is available at many popular electronic retail stores.

  • Page 20: Usb Connection

    Making use of USB (Universal Serial Bus) - Optional USB (Universal Serial Bus) is an innovation in connecting your different desktop peripherals conveniently to your computer. By using the USB, you will be able to connect your mouse, keyboard, and other peripherals to your display instead of having to connect them to your computer.

  • Page 21: Usb Specifications

    Making use of USB (Universal Serial Bus) - Optional USB Specifications Rev. 1.1 complied BUS-powered hub USB standard 100mA for each (MAX) Downstream power supply 12 Mbps (full), 1.5 Mbps (low) Communication speed 1 Upstream port USB port 2 Downstream ports IMPORTANT: These USB connectors are not designed for use with high-power USB devices such as a video camera, scanner, etc.
  • Page 22 Digitally yours...

  • Page 23: Regulatory Information

    Regulatory information Regulatory information...

  • Page 24: Fcc Compliance Statement

    Regulatory Information cont. FCC Compliance Statement respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. This equipment has been tested and found to comply NOTICE within the limits of a Class B digital device pursuant to Part The regulations are applied only to the products with the 15 of the FCC Rules.
  • Page 25 Regulatory Information cont. Why do we have environmentally labelled computers? computer and/or display, after a certain period of inactivity, In many countries, environmental labelling has become an shall reduce its power consumption to a lower level, in one established method for encouraging the adaptation of or more stages.
  • Page 26 Regulatory Information cont. relevant bio-accumulative TCO’95 requirement permits Monitor Disposal the inclusion of lead, as no replacement has yet been WARNING developed. If you need to dispose of a monitor, ask a qualified service representative for the proper procedure. Improper disposal could Cadmium is present in rechargeable batteries and in the result in personal injury from implosion.
  • Page 27 Regulatory Information cont. Approval requirements cover a wide range of issues: ecology, ergonomics, emission of electrical and TCO’99 requires that plastic components weighing more magnetical fields, energy consumption and electrical than 25 grams shall not contain flame retardants with safety. organically bound bromine or chlorine.
  • Page 28 The product must be prepared for recycling and the If you want to find out more information about our recycling manufacturer must have a certified environmental program, please contact your local LG vendor or a management system such as EMAS or ISO 14 001 corporate representative of LG.
  • Page 29 La LGE. ha annunciato nel 1994 la cosiddetta 'LG http://www.lge.com/experience/social_commitment/enviro Declaration for a Cleaner Environment' (Dichiarazione di ment.jsp LG a favore di un ambiente più pulito), un ideale che da allora funge da principio ispiratore della gestione aziendale. La dichiarazione rappresenta il fondamento che Français consente di intraprendere attività...
  • Page 30 LGE. presentó la 'Declaración para un entorno más limpio Declaração é a base que nos tem permitido realizar de LG' en 1994 y este ideal ha servido para guiar nuestros atividades favoráveis ao ambiente com consideração principios empresariales desde entonces. La Declaración atenta aos aspectos econômicos, ambientais e sociais.
  • Page 31 ¬ 1994 „Ó‰Û ÍÓÔÓ‡ˆËˇ LGE ÓÔÛ·ÎËÍÓ‚‡Î‡ het milieu 'ƒÂÍ·‡ˆË˛ LG ÔÓ Óı‡Ì ÓÍÛʇ˛˘ÂÈ Ò‰˚', LGE. publiceerde in 1994 de 'LG Declaration for a Cleaner ÍÓÚÓ‡ˇ Ò ÚÂı ÔÓ ÒÎÛÊËÚ ÓÒÌÓ‚Ì˚Ï ÔË̈ËÔÓÏ Environment' (de LG-verklaring met betrekking tot een ÛÔ‡‚ÎÂÌˡ. Õ‡ ÓÒÌÓ‚Â ˝ÚÓÈ ‰ÂÍ·‡ˆËË Ï˚ ÒÏÓ„ÎË...

  • Page 32: Nom Mark (Mexico Only)

    LG 공급업체나 LG 기업 대표부에 문의하시기 바랍니다. ‰ÂÈÒÚ‚Û˛Ú ÒËÒÚÂÏ˚ ÛÚËÎËÁ‡ˆËË ÓÚıÓ‰Ó‚ Ë ‚ÓÁ‚‡Ú‡ ËÒÔÓθÁÓ‚‡ÌÌÓÈ ÔÓ‰Û͈ËË. ÃÌÓ„Ë ÍÓÏÔÓÌÂÌÚ˚ LG 전자는 기업 개선 정책의 하나로 지구 환경 문제를 ·Û‰ÛÚ ‚ÚÓ˘ÌÓ ËÒÔÓθÁÓ‚‡Ì˚ Ë ÛÚËÎËÁËÓ‚‡Ì˚, ‚ ÚÓ 채택함으로써 보다 나은 환경을 만들어 나가기 위한...
