- Page 1 ” TV with Built-in DVD Player MODEL: ATV24FHDC-0221 User Manual AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: ATV24FHDC-0221 PRODUCT CODE: 704861 02/2021...
-
Page 2: Welcome
Welcome Congratulations on your purchase! This manual tells you all you need to know about using your new BAUHN product. ® Please take special note of any important safety and usage information presented with the symbol. All products brought to you by BAUHN are manufactured to the highest standards of performance and safety and, ®... -
Page 3: Table Of Contents
Contents DVD Mode Welcome On-Screen Set Up Basic DVD Movie Playback Contents TV Setting Menus Media File Playback Picture Unpack and Prepare Menu Navigation Sound What's in the Box Troubleshooting Channel (DTV and ATV) Important Tips Lock Specifications Attaching the Stand Setting Compliance and Wall-Mounting the TV... -
Page 4: Unpack And Prepare

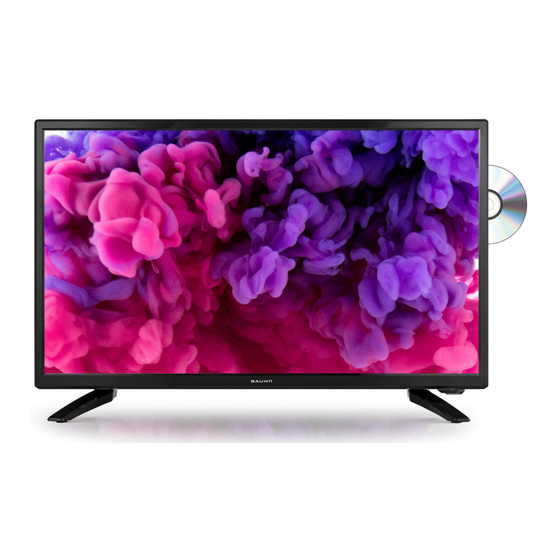

Unpack and Prepare What's in the Box Before installing your new TV, check you have everything needed. In the box you will find: A. 24" Full HD TV with Built-in DVD Player B. Remote Control C. AAA Activ Energy Batteries (2) D. -
Page 5: Important Tips
Important Tips • Place the TV on a level surface. • Place the TV away from any source that may generate heat or vibrations. • Make sure there is enough space around vents for airflow. • The remote control works up to 6 metres away from the TV. •... -
Page 6: Attaching The Stand
Attaching the Stand • Unplug the TV from the power outlet before installing or removing the stand. • Only touch the frame, not the screen. • It is highly recommended to use safety straps for securing the TV. Unless you are wall-mounting the TV, you will need to attach its stand/legs. -
Page 7: Wall-Mounting The Tv
Wall-Mounting the TV • Unplug the TV from the power outlet before wall-mounting. • Contact a professional for assistance with wall-mounting the TV. Required 100mm • VESA Mounting Bracket • 4 x M4*10mm screws (or longer as required) The TV comes with holes on the back panel for use with wall-mounting brackets (bracket not included). -
Page 8: Connect To Power
Connect to Power Don't forget to plug in the TV to the power outlet. Leave the power switched off until installation is finished. Make sure the TV is switched off at the power outlet until you have finished connecting your cables. Image is an example only. -
Page 9: Connect Your Antenna
Connect your Antenna Free-to-air TV in HD (High Definition) Example HD Channels High Definition (HD) channels ABC HD provide the best viewing quality and SBS ONE HD are available with a digital antenna connection. 10 HD PRIME7 HD WIN HD Antenna cable not included. UNPACK AND PREPARE | 9... -
Page 10: Controls And Connections
Controls and Connections Get to know your TV On/Standby light and Remote sensor DVD Slot Buttons on the TV 1. VOL + / VOL - : Increase or decrease the volume. VOL+ VOL- 2. CH + / CH - : Select the next or previous channel. 3. -
Page 11: Ports On The Tv
Ports on the TV AV IN AV IN All-digital connection between the TV and any HDMI device. HDMI IN Supports Full HD resolution. Requires a HDMI cable (not included). PVR record and pause live TV » Play your stored media files (supported file codecs and »... - Page 12 DIGITAL AUDIO ANTENNA AUDIO OUT PC IN COMPONENT IN (OPTICAL) Headphone Connect to your headphones, amplifier or audio device, using an Jack AUX cable (not included). PC IN Connect your PC and its audio to your TV. Requires VGA and AUX cables (not included).
-
Page 13: Remote Control
Remote Control Setup Insert two AAA size batteries according to the polarity markings (+ / -) inside the compartment. Make sure the batteries are correctly aligned and properly pushed into AAA size place. batteries included Precautions When Using Batteries • Do not use old and new batteries together. •... -
Page 14: Using The Remote Control
Using the Remote Control To use the remote, point it towards the remote sensor at the front of the TV. The remote will not operate if its path is blocked. The remote has a range of up to about 6 metres from Remote Hints and Tips the TV at an angle of up to 30 degrees to either side of the sensor, as illustrated below. -
Page 15: Buttons And Functions
Buttons and Functions /STANDBY: Switch the TV to On or Standby STANDBY TV/RADIO /GOTO: Jump to a different chapter of the TV/RADIO / EJECT: Switch between TV or radio / Eject a disc (DVD) EJECT /A-B: Repeat selected DVD scenes /ANGLE: View DVD playback from different GOTO ANGLE REPEAT... - Page 16 SOURCE D.MENU GUIDE MUTE SOURCE: Switch the input source /MUTE: Mute the sound. Press again or D.MENU/GUIDE: Launch the TV Guide press VOL + to restore the sound DISPLAY (DTV)/Display the DVD main menu VOL +/-: Turn the volume up/down CH +/- : Change to the next or previous channel NUMBER BUTTONS (0-9): Press to select a...
-
Page 17: On-Screen Set Up
On-Screen Set Up Image is an example only. Plug may vary. Make sure equipment is properly connected (as shown on pages 11-12) before connecting the TV to power. Make sure the TV is plugged in at the power socket and switched on. -
Page 18: Tv Setting Menus
TV Setting Menus Menu Navigation Buttons Press the MENU button to display the TV settings menu. See the guide below for all the other buttons you'll need to use to adjust and change your settings. Once you have program any settings, the unit will retain them in its memory until you change them, Function... - Page 19 Sound Lock • Sound Mode • Enable • Treble • Channel Locks • Bass • Parental Rating • Balance • Lock Keypad • Sound Delay • Hotel Mode • Surround Sound • New Password • EQ Setting • Clear Lock •...
-
Page 20: Picture
Picture Original Images are for reference only. Picture Mode (default): Picture setting for general viewing environments. Home Brightness : Enhance the picture for bright home environments. Bright Room : Enhanced brightness, contrast, colour depth and edges so content stands out. Dynamic : Picture setting for dark viewing environments. - Page 21 Advanced Settings Adjust the on-screen colour tone (for NTSC system only). Option Description Colour Temp NR (Noise Reduces noise to improve picture quality. Adjust the on-screen colour temperature. Reduction) Aspect Ratio MPEG NR Reduces MPEG (video) noise to improve (MPEG Noise Adjust the video size.
-
Page 22: Sound
Sound Option Description Sound Mode Standard Music Personal Movie These options are available in the sound mode is set to Personal: Option Description Treble Adjust the levels of higher pitched sounds. Bass Adjust the levels of lower pitched sounds. Option Description Balance Adjust the audio output between the left and right speakers. - Page 23 Select the sound EQ (equalizer) to your desired mode. EQ Setting In Personal mode you can further personalise the sound quality by adjusting EQ frequencies. AVL (Auto Turn On to keep the volume level consistent. Volume Level) S/PDIF Mode Set the digital sound output setting. AD (Audio AD (Audio Description) provides an additional audio track for visually Description)
-
Page 24: Channel (Dtv And Atv)
Channel (DTV and ATV) Option Description Automatically tune all available free-to-air TV channels. Adjust settings (default settings are set for Australia). Auto Scan Press OK or to start scanning. Manual Scan See Digital Manual Scan and Analog Manual Scan below for information. Digital Manual Manually select and tune digital TV channels. - Page 25 Channel Edit Use the buttons to highlight a channel. Option Description Move the channel location on the list. Press /A-B to enter Move Mode. Use the buttons Move to select a position and press /A-B to confirm it. Delete /GOTO to delete the highlighted channel. Press Skip Press...
-
Page 26: Lock
Lock 0000 Factory Password: Enter the factory password '0000' using the number buttons on the remote and select 'OK' on-screen. If you changed your 4711 Master Password: password but forgot it, you can still use the master password. Option Description Enable Enable/disable the lock on the system. - Page 27 Hotel Mode Option Description Active Hotel Mode Turn On/Off Hotel Mode. Max Vol Set a limit to the maximum volume level. Default Vol Set the default volume level. Source Lock Turn On/Off the lock on available sources. Default Source Set a default input source. Default DTV Program Set the default digital program.
-
Page 28: Setting
Setting Option Description OSD Language Select your preferred On Screen Display language. Select your preferred audio language. (Available for digital channels, depending Audio Languages on the program.) Subtitle Turn subtitles On/Off (available for digital channels, depending on the program). Select the desired digital Teletext language and decoding page language (no Teletext longer available in Australia). - Page 29 Time Settings Option Description OSD Timer Select the desired OSD (on screen display) menu duration. Sleep Timer Select the desired Auto Sleep (Standby) duration. Auto Sleep Sets the time when the TV will enter Standby mode due to inactivity. Time Zone Adjust your timezone.
- Page 30 HDMI CEC Control This feature allows for your TV and your connected HDMI device to be controlled by one remote. Press the SOURCE button on the unit or remote control to select the HDMI input source. Option Description HDMI CEC (Consumer Turn HDMI CEC On/Off.
-
Page 31: Pvr Settings
PVR Settings To make changes to PVR (Personal Video Recording), ensure your USB drive is inserted into the TV. Check the troubleshooting section if you're having problems setting up your USB device. Scheduled Record File Manager Function Remote Button Function Remote Button Delete the highlighted file /ANGLE... -
Page 32: Tv Guide
TV Guide (Free to air TV) TV Guide Functions To access the TV guide, Function Remote Button press the D.MENU/GUIDE Switch between the channels list and program list button on the remote. To activate the TV Select a Channel or Program Channels use the buttons to select a channel View TV Guide for the next day... -
Page 33: Recording
Recording Important Tips: • Back-up your personal data before plugging in your USB to the TV. We do not assume liability for any loss of data due to misuse or malfunction. • You cannot change channels while in recording mode. •... -
Page 34: Recording Live Tv
Before you can record with this TV Recording, scheduled recording and pause (including time-shift recording), you must live TV functions only work in DTV mode insert your USB storage device into the (free-to-air). USB port. Recording Live TV SOURCE Start Recording Press REC/D.SETUP once - start recording. -
Page 35: Pause Live Tv (Time-Shift)
Pause Live TV (Time-shift) Recording, scheduled recording and pause live TV functions only work in DTV mode Temporarily pause the live TV signal, then resume (free-to-air). playback at your convenience. SOURCE Before you can record with this TV (including time-shift recording), you must insert your USB storage device into the USB port. -
Page 36: Usb Mode
USB Mode You can only play Photos in the Photo category, Music in the Music category and so on. Make sure you select the correct category for the file you wish to play. Set up Function Remote Button Insert your USB into a USB port on the TV. Choose a source or file Press the SOURCE button to select 'USB' mode. - Page 37 Playback Functions Music Function Remote Button Playback of different media types have different controls. Navigate to a folder or file Photo Play a track Function Remote Button Navigate to a folder or file Fast forward or rewind the track Skip or restart the current track Display a photo Display the Quick Menu /A-B...
- Page 38 Video Text Function Remote Button Function Remote Button Navigate to a folder or file Navigate to a folder or file Play a video Open the text file Navigate to the next/previous page Pause the video Display the Quick Menu /A-B Resume playback Stop playback Return to the file list...
-
Page 39: Dvd Mode
DVD Mode Function Remote Button Navigate to a folder or file Basic DVD Movie Playback Play / Pause Press the SOURCE button on the back panel, or on the Stop remote control, to switch the unit to DVD mode. Skip Forward SOURCE Skip Backwards YPbPr... - Page 40 Skipping Ahead or Backwards Viewing From Different Angles /INDEX Skipping ahead: Duri ng playback, press the Some DVDs may contain scenes which have been shot button to skip the next chapter simultaneously from a number of different angles. For /ANGLE (DVD) or track (Video CD/CD).
- Page 41 Repeat Play Press the /REPEAT button during playback, it will repeat play one chapter or one title (for DVD disc), or repeat play the track (for VCD/CD). A-B Repeat Play This button lets you repeat sections between two specific points (A-B repeat).
-
Page 42: Media File Playback
Media File Playback Music File Playback Insert a disc which contains music files and after a few seconds, the screen will show all the folders on the disc. Use the / / buttons to select the folder you want to play, then press OK to confirm. - Page 43 /INDEX button to play the previous or next file. During normal playback, press the Press the /REPEAT button on the remote control to change the play mode. - SINGLE: Play one file only. - REPEAT ONE: Repeat one file. - REPEAT FOLDER: All the files in the folder will be played repeatedly. - FOLDER: All the files in the folder will be played.
- Page 44 Skip to the Next/Previous Picture Video CD Playback /INDEX button to skip to the next picture or Press When playing a VCD 2.0 with playback control (PBC), button to skip to the previous picture. If no key is the player will show the VCD version. pressed for three seconds, it will skip to next picture Press the number buttons to select a corresponding automatically.
-
Page 45: Menu Navigation
General Setup Page Menu Navigation • TV Display: This setting is for selecting the TV output Press the REC/D.SETUP button on the remote control. mode. Available options: Use the / / buttons to select the preferred item, • Normal/PS (Pan & Scan mode), Normal/LB (Letter then press OK to display the setup page where you can Box mode) adjust values. - Page 46 Preference Setup Page • Do not use record cleaning sprays, benzene, thinner or static electricity prevention liquids. • TV Type: Select the TV system. • Be careful not to drop or bend the disc. • Audio: Use this item to select the desired audio •...
-
Page 47: Troubleshooting
Troubleshooting If you experience problems with your TV, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 886 649. Problem Solution Make sure that the batteries are installed with their poles (+/–) in the correct direction. Remove any obstacles between the remote control and remote control sensor on the TV. - Page 48 Problem Solution Ensure that connection to the device is correct and that all cables are fully inserted. Remove and reconnect all cables connected to the TV and the external devices. Try new cables if possible. There is no picture/ sound or distorted Restart the connected devices by unplugging each device's power cord and then plugging it in again.
- Page 49 Problem Solution Ensure the disc is suited to be played on the DVD player. If using a DVD-R/RW disc, ensure the disc has been properly finalised. Ensure that the disc has been inserted properly into the player. Ensure that the correct input source has been selected. Disc don't play You may have a defective disc.
-
Page 50: Specifications
Specifications With stand: 557 x 166 Active screen size 60.4cm (diagonal) x 372 mm Dimensions (W x D x H) Resolution Without stand: 557 x 86 1920 x 1080 x 333 mm Refresh rate 60Hz 2.75 kg HDMI version 1.4a Weight Gross 3.9 kg... -
Page 51: Compliance And Responsible Disposal
Compliance and Responsible Disposal Packaging The packaging of your product has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. Plastic wrapping can National Television and Computer Recycling be a suffocation hazard for babies and young children, please ensure all packaging materials are out of Scheme reach and are safely disposed of. -
Page 52: Warranty Information
Warranty Information The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour. -
Page 53: Repair And Refurbished Goods Or Parts Notice
Repair and Refurbished Goods or Parts Notice Unfortunately, sometimes faulty products are manufactured, which need to be returned to the supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost. - Page 54 Notes...
- Page 55 Notes...
- Page 56 Online support Visit www.bauhn.com.au for software updates to keep your TV up-to-date, as well as the latest User Manual for information on the updated features. Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product.
