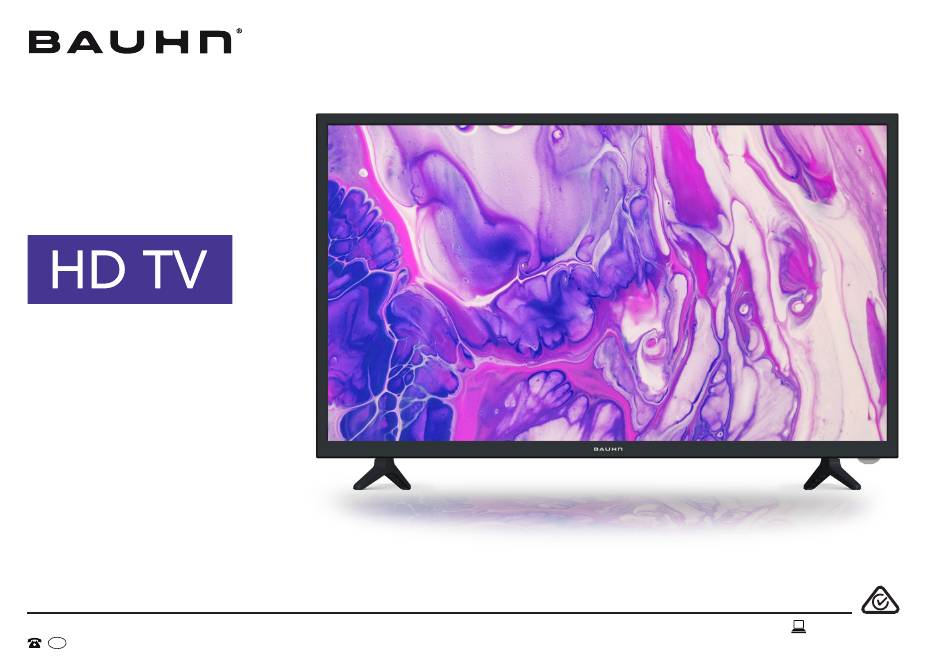

  • Page 1 ” MODEL: ATV32HD-1121 User Manual AFTER SALES SUPPORT tempo.org/support 1300 002 534 MODEL: ATV32HD-1121 PRODUCT CODE: 707729 11/2021...
  • Page 2: Welcome

    Welcome Congratulations on your purchase! This manual tells you all you need to know about using your new BAUHN product. ® Please take special note of any important safety and usage information presented with the symbol. All products brought to you by BAUHN are manufactured to the highest standards of performance and safety and, ®...
  • Page 3: Table Of Contents

    Contents USB Mode Welcome On-Screen Set Up Set up Contents TV Setting Menus Troubleshooting Channel Unpack and Prepare Picture Specifications What's in the Box Sound Compliance and Important Tips Time Responsible Disposal Attaching the Stand Lock Wall-Mounting the TV Warranty Information Setup Connect to Power PVR File System...
  • Page 4: Unpack And Prepare

    Unpack and Prepare What's in the Box Before installing your new TV, check you have everything needed. In the box you will find: A. 32" HD TV B. Remote Control C. AAA Activ Energy Batteries (2) D. TV Stands (2) E.
  • Page 5: Important Tips

    Important Tips • Place the TV on a level surface. • Place the TV away from any source that may generate heat or vibrations. • Make sure there is enough space around vents for airflow. • The remote control works up to 6 metres away from the TV. •...
  • Page 6: Attaching The Stand

    Attaching the Stand • Unplug the TV from the power outlet before installing or removing the stand. • Only touch the frame, not the screen. • It is highly recommended to use safety straps for securing the TV. Unless you are wall-mounting the TV, you will need to attach its stand/legs.
  • Page 7: Wall-Mounting The Tv

    Wall-Mounting the TV • Unplug the TV from the power outlet before wall-mounting. • Contact a professional for assistance with wall-mounting the TV. Required 100mm • VESA Mounting Bracket • 4 x M6*10mm screws (or longer as required) The TV comes with holes on the back panel for use with wall-mounting brackets (bracket not included).
  • Page 8: Connect To Power

    Connect to Power Don't forget to plug in the TV to the power outlet. Leave the power switched off until installation is finished. Make sure the TV is switched off at the power outlet until you have finished connecting your cables. Image is an example only.
  • Page 9: Controls And Connections

    Controls and Connections Get to know your TV On/Standby light and Remote sensor Buttons on the TV : Switch the TV on or to standby. See next page for more info on the connections. CONTROLS AND CONNECTIONS | 9...
  • Page 10: Ports On The Tv

    Ports on the TV Headphone Connect to your headphones, amplifier or audio device, using Jack an AUX cable (not included). All-digital connection between the TV and any HDMI device. HDMI IN Requires a HDMI cable (not included). You can use this to connect your DVD player. Supports CVBS Standard Definition (SD) resolution.
  • Page 11 ANTENNA IN Connect your antenna for live TV. (Antenna cable not included). DIGITAL Connect an external digital audio device. Use an optical cable AUDIO OUT (not included) to connect the unit with an amplifier, soundbar or other audio decoding device for digital audio signal output. (OPTICAL) PVR record and pause live TV »...
  • Page 12: Remote Control

    Remote Control Setup Insert two AAA size batteries according to the polarity markings (+ / -) inside the compartment. Make sure the batteries are correctly aligned and properly pushed into place. AAA size batteries included Precautions When Using Batteries • Do not use old and new batteries together. •...
  • Page 13: Using The Remote Control

    Using the Remote Control To use the remote, point it towards the remote sensor at the front of the TV. The remote will not operate if its path is blocked. The remote has a range of up to about 6 metres from Remote Hints and Tips the TV at an angle of up to 30 degrees to either side of the sensor, as illustrated below.
  • Page 14: Buttons And Functions

    Buttons and Functions /POWER: Switch the TV to On or Standby /GOTO: Jump to a different chapter of the TV/RADIO / EJECT: Switch between TV or radio / Eject a disc (DVD) /A-B: Repeat selected DVD scenes /ANGLE: View DVD playback from different angles, if the DVD has this feature /REPEAT: Repeat playback of a selected FAV: Press to display your favourite program in...
  • Page 15 SOURCE: Switch the input source /MUTE: Mute the sound. Press again or D.MENU/GUIDE: Launch the TV Guide press VOL + to restore the sound (DTV)/Display the DVD main menu VOL +/-: Turn the volume up/down CH +/- : Change to the next or previous channel NUMBER BUTTONS (0-9): Press to select a TV channel directly when watching TV...
  • Page 16: On-Screen Set Up

    On-Screen Set Up Image is an example only. Plug may vary. Make sure equipment is properly connected (as shown on pages 10-11) before connecting the TV to power. Make sure the TV is plugged in at the power socket and switched on.
  • Page 17: Tv Setting Menus

    TV Setting Menus Menu Navigation Buttons Press the MENU button to display the TV settings menu. See the guide below for all the other buttons you'll need to use to adjust and change your settings. Once you have program any settings, the unit will retain them in its memory until you change them, Function...
  • Page 18 Setup Picture Time • OSD Language • Picture Mode • Clock • Audio Language • Personal Mode settings: • Time Zone • Brightness • Subtitle Language • Off Time • Contrast • Hearing Impaired • On Time • Sharpness • Aspect Ratio •...
  • Page 19: Channel

    Channel Option Description Automatically tune all available free-to-air TV channels. Adjust settings (default settings are set for Auto Tuning Australia). Press OK to start scanning. Manually select and tune analog TV channels. (Analog TV is no longer supported in Australia). Current channel: Press the buttons to select the channel number to save the tuned signal.
  • Page 20 Program Edit Use the buttons to highlight a channel. Option Description REPEAT to enter Move Mode. Move the channel location on the list. Press Move REPEAT to confirm it. Use the buttons to select a position and press Delete Press GOTO to delete the highlighted channel.
  • Page 21: Picture

    Picture Original Images are for reference only. Picture Mode (default): Default picture settings for home use. Home Brightness Bright Room : Brighter and clearer picture settings for bright viewing environments. : Enhanced brightness, contrast, colour depth and edges so content stands out. Dynamic : Enhanced brightness with lower contrast, colour depth and edges.
  • Page 22 Option Description Colour Temp Adjust the on-screen colour temperature. Noise Reduction Reduces noise to improve picture quality. Adjusts the difference between the bright and dark sides of the screen according to the Dynamic Contrast brightness of the image. Aspect Ratio Adjust the video size.
  • Page 23: Sound

    Sound Option Description Sound Mode Standard Music Sports Personal Movie These options are available in the Personal sound mode: Option Description Treble Adjust the levels of higher pitched sounds. Bass Adjust the levels of lower pitched sounds. TV SETTING MENUS | 23...
  • Page 24 Option Description Balance Adjust the audio output between the left and right speakers. AVL (Auto Turn on to keep the volume level consistent. Volume Level) Surround Sound Turn ON/OFF surround sound effect from your TV speakers. S/PDIF Mode Set the digital sound output setting. AD (Audio Audio Description (AD) provides an additional audio track for visually challenged persons Description)
  • Page 25: Time

    Time Option Description Clock Manually set the date and time. Time Zone Select your timezone. Off Time Set time and day to turn off the TV. On Time Set the time and day to turn on the TV. Sleep Timer Select the desired Auto Sleep (Standby) duration.
  • Page 26: Lock

    Lock 0000 Factory Password: Enter the factory password '0000' using the number buttons on the remote and select 'OK' on-screen. If you changed your 4711 Master Password: password but forgot it, you can still use the master password. Option Description System Lock Enable/disable the lock on the system.
  • Page 27 Hotel Mode Option Description Hotel Mode Turn On/Off Hotel Mode. Source Lock Turn On/Off the lock on available sources. Default Source Set a default input source. Default Program Set the default digital program. Default Volume Set the default volume level. Max Volume Set a limit to the maximum volume level.
  • Page 28: Setup

    Setup Option Description OSD Language Select your preferred On Screen Display language. Audio Language Select your preferred audio language. (Available for digital channels, depending on the program). Subtitle Language Turn subtitles On/Off (available for digital channels, depending on the program). For hearing impaired users, this function explains scenes or actions via a descriptive caption.
  • Page 29 HDMI CEC Setup This feature allows for your TV and your connected HDMI device to be controlled by one remote. Press the SOURCE button on the unit or remote control to select the HDMI input source. Option Description HDMI CEC (Consumer Turn HDMI CEC On/Off.
  • Page 30: Pvr File System

    PVR File System To make changes to PVR (Personal Video Recording), ensure your USB drive is inserted into the TV. Check the troubleshooting section if you're having problems setting up your USB device. Option Description Select Disk Select a disk used for PVR. Check PVR File System Check the health of the USB drive file system.
  • Page 31: Tv Guide

    TV Guide (Free to air TV) TV Guide Functions To access the TV guide, Function Remote Button press the D.MENU/GUIDE Switch between the channels list and program list button on the remote. To activate the TV Select a Channel or Program Channels use the buttons to select a channel Schedule a reminder for the selected program...
  • Page 32: Recording

    Recording Important Tips: • Back-up your personal data before plugging in your USB to the TV. We do not assume liability for any loss of data due to misuse or malfunction. • You cannot change channels while in recording mode. •...
  • Page 33: Recording Live Tv

    Recording, scheduled Before you can record with this TV (including time-shift recording), you must recording and pause insert your USB storage device into the live TV functions only USB port. work in DTV mode (free-to-air). Recording Live TV Instant Recording Scheduled Recording Press D.SETUP/REC...
  • Page 34: Pause Live Tv (Time-Shift)

    Pause Live TV (Time-shift) Temporarily pause the live TV signal, then resume playback at your convenience. Before you can record with this TV (including time-shift recording), you must insert your USB storage device into the USB port. Start Time-shift Press the button on the remote to enter time-shift mode.
  • Page 35: Usb Mode

    USB Mode You can only play Photos in the Photo category, Music in the Music category and so on. Make sure you select Set up the correct category for the file you wish to play. Insert your USB into a USB port on the TV.
  • Page 36 Playback Functions Music Function Remote Button Playback of different media types have different controls. Navigate to a folder or file Photo Play a track Function Remote Button Navigate to a folder or file Fast forward or rewind the track Skip or restart the current track Display a photo Return to the file list Display the on-screen toolbar...
  • Page 37 Text Function Remote Button Navigate to a folder or file Open the text file Only supported file types Navigate to the next/previous page will be displayed. See the specifications table for supported file types. Return to the file list RECORDING AND USB MODE | 37...
  • Page 38: Troubleshooting

    Troubleshooting If you experience problems with your TV, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 002 534. Problem Solution Make sure that the batteries are installed with their poles (+/–) in the correct direction. Remove any obstacles between the remote control and remote control sensor on the TV.
  • Page 39 Problem Solution Ensure that connection to the device is correct and that all cables are fully inserted. Remove and reconnect all cables connected to the TV and the external devices. Try new cables if possible. There is no picture/ sound or distorted Restart the connected devices by unplugging each device's power cord and then plugging it in again.
  • Page 40 Problem Solution This TV has been tested with the majority of Flash memory-based devices and hard disks (media players with HDD) on the market however, it may not be compatible with certain devices. If the external hard drive has its own power adaptor, use it. Only use a USB storage device formatted in a FAT32 file system provided with the Windows operating system.
  • Page 41: Specifications

    Specifications With stand: 730.3 x Active screen size 80cm (diagonal) 188.7 x 472.9 mm Dimensions (W x D x H) Resolution Without stand: 730.3 x 1366 x 768 76.7 x 438 mm Refresh rate 60Hz 3.7 kg HDMI version 1.4a Weight Gross 4.9 kg...
  • Page 42: Compliance And Responsible Disposal

    Compliance and Responsible Disposal Packaging The packaging of your product has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. Plastic wrapping can National Television and Computer Recycling be a suffocation hazard for babies and young children, please ensure all packaging materials are out of Scheme reach and are safely disposed of.
  • Page 43: Warranty Information

    Warranty Information The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour.
  • Page 44: Repair And Refurbished Goods Or Parts Notice

    Repair and Refurbished Goods or Parts Notice Unfortunately, sometimes faulty products are manufactured, which need to be returned to the supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost.
  • Page 45 Notes...
  • Page 46 Notes...
  • Page 47 Notes...
  • Page 48 Online support Visit www.bauhn.com.au for software updates to keep your TV up-to-date, as well as the latest User Manual for information on the updated features. Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product.
