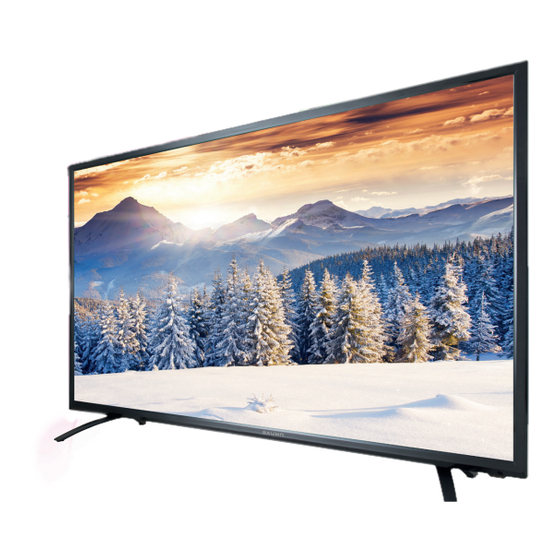

48" 4K
Ultra HD TV
Model Number: B48-63UHDF / A-480F-S
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B48-63UHDF and is the answer not in the manual?

Questions and answers

Summary of Contents for Bauhn B48-63UHDF

  • Page 1 48” 4K Ultra HD TV Model Number: B48-63UHDF / A-480F-S INSTRUCTION MANUAL After Sales Support Telephone: 0800 328 6063 1800 812 712 Email: serviceuk@tempo.org...
  • Page 2: Table Of Contents

    Contents Declaration of Conformity..............iii Welcome...................iv Important Safety Instructions............01 General Safety Instructions……............03 General Parts...................06 Remote Control................08 Installation..................13 Basic Connections................15 Connections..................16 Basic TV Operations................20 Recording (DTV mode only).............23 Media Playback……..………………………………………………..24 Main Menu..................26 DTV mode..................27 Menus....................28 FAQ’s………………………………………………………………..36 Specifications…………………………………………………………...38 Warranty...................39 Warranty Card..................40 After Sales Support Telephone: 0800 328 6063 1800 812 712...
  • Page 3: Declaration Of Conformity

    Declaration of Conformity The EU declaration of conformity can be requested from the manufacturer/ importer. After Sales Support Telephone: 0800 328 6063 1800 812 712 Email: serviceuk@tempo.org...
  • Page 4: Welcome

    Welcome You have made an excellent choice with the purchase of this quality Bauhn® product. By doing so you now have the assurance and peace of mind which comes from purchasing a product that has been manufactured to the highest standards of performance and safety, supported by the high quality standards of Tempo.
  • Page 5: Important Safety Instructions

    Important Safety Instructions WARNING: - TO PREVENT FIRE OR SHOCK HAZARD. DO NOT USE THIS POWER CORD WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. - TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
  • Page 6 Important Safety Instructions (Cont) Read all instructions before using • Do not use this product near water. • Install the product in accordance with the operating instructions. • Only connect this product to a power outlet which has a protective earth connection.
  • Page 7: General Safety Instructions

    General Safety Instructions Installation • Follow instructions: Only install this TV set in accordance with the instructions in this manual. If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling and causing injury, particularly to children. •...
  • Page 8 General Safety Instructions (Cont.) Electrical safety and cord handling • Voltage: Before installing this TV set, make sure your outlet voltage corresponds to the voltage stated on the appliance rating label. • Protect from moisture: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture;...
  • Page 9 General Safety Instructions (Cont.) • When not in use: When not using the unit for long periods of time, disconnect the power cord from the wall outlet. Dust could accumulate over time on the unit and cause it to generate heat and ignite, or cause the insulation to deteriorate, which in turn may result in an electrical fire.
  • Page 10: General Parts

    General Parts Main Unit Front View Main Unit Back View 1. LED display screen 2. Remote control sensor / Power indicator- In standby mode the indicator light is red; when switching on the unit the indicator light is blue color. 3.
  • Page 11 General Parts Back View 1. Power input 2. LAN input terminal 3. HDMI 1 input terminal (Support up to 4K 24Hz/30Hz) 3. HDMI 2 input terminal (Support ARC & up to 4K 24Hz/30Hz) 4. SCART input terminal 5. RF input terminal - To connect the external antenna. 6.
  • Page 12: Remote Control

    Remote Control 1 SOURCE Select desired input source. 2 Number buttons (0-9) Input number information, such as channel number and so on. 3 -/-- Select the number of digits for a Programme number. Default is 4 digits. 4 MEDIA Enter Media (USB) mode directly. 5 ▲/▼/◄/►...
  • Page 13 Remote Control (Cont.) 10 VOL (+/-) Increase/decrease the volume level. 11 MUTE Mute the sound. 12 TEXT Display the available Teletext. Move fast backwards X2, X4, X8, X16. 13 FAV Display the favourite channels list. Play the previous file. 14 SLEEP Set desired sleep time.
  • Page 14 Remote Control (Cont.) Play the next file. INDEX* (DTV) Display the record list. Stop playing. Start/pause playing. 26 SUBPAGE* Enter Teletext sub-page (ATV only) Move fast forwards, X2, X4, X8, X16. 27 CH (+/-) View the next/previous channel. 28 EXIT (TV) Exit the menu page.
  • Page 15 Remote Control (Cont.) Using the remote control Fig. 1 Inserting batteries Install the batteries as illustrated in Fig. 1, on the right. • Open the cover at the back of the remote control unit. • Insert two AAA size batteries according to the polarity markings (+ / -) inside the compartment.
  • Page 16 Remote Control (Cont.) Using the remote control Fig. 2 To use the remote control, point it towards the remote sensor at the front of the television. The remote control has a range of up to approximately six metres (6m) from Remote Control the TV at an angle of up to 30 degrees each to the right Sensor...
  • Page 17: Installation

    Installation Your TV stand and cabinet will be packaged as two separate parts within the same box. Before using the TV, install the stand as described below, or if you want to mount it to a wall, see page 14 for mounting advice; the wall mount itself is not supplied. IMPORTANT! •...
  • Page 18 Installation (Cont.) Wall-mounting instructions IMPORTANT! • Make sure the TV set is unplugged from the power supply before wall-mounting it and removing the stand. • We recommend you contact a professional for assistance when wall-mounting the TV. We are not responsible for any damage to the product or injury to yourself, if you mount the TV on your own.
  • Page 19: Basic Connections

    Basic Connections IMPORTANT! • Ensure all cables are disconnected from the main unit before connecting the TV to an AC power source. • Read through the instructions before connecting the TV to other equipment. Connecting to an AC power source (Fig 7) (Fig 7) Connecting an external antenna (Fig 8) For best picture quality, we recommend connecting the TV set to an external antenna.
  • Page 20: Connections

    Connections HDMI CONNECTION Use HDMI cable to connect the HDMI cable unit with other devices to receive high-definition multimedia (Not included signal. Back of DVD/VCR LAN CONNECTION Use a LAN cable (not included) to connect this TV with available network. After Sales Support Telephone: 0800 328 6063...
  • Page 21 Connections (Cont.) SCART CONNECTION SCART cable (Not included) AV (COMPOSITE VIDEO) CONNECTION AV cable AV adaptor cable (Not included) (Included) For basic connection, use the composite Audio L/R (white/red) and CVBS (yellow) cable to connect the unit with other devices. After Sales Support Telephone: 0800 328 6063...
  • Page 22 Connections (Cont.) NOTE: As your TV contains a mini YPbPr terminal, you may need to use the special adaptor cable (supplied), with a 3.5mm jack on one end and 3 female RCA terminals on the other end, to connect this TV with external devices. YPbPr CONNECTION AUDIO cable YPbPr cable...
  • Page 23 Connections (Cont.) COAXIAL CONNECTION Use coaxial cable to connect the unit with amplifier or other audio decoding devices for coaxial audio signal output. (Coaxial cable is not included.) USB CONNECTION Insert a USB memory device into the USB port for playback of video/music/ photo multimedia files.
  • Page 24 Connections (Cont.) INSERT A CI+ CARD Insert your CI card (Conditional CI+ Card Access Module) to watch special (Not included) digital channels in your area. EARPHONE CONNECTION Earphone Cable (Not included) After Sales Support Telephone: 0800 328 6063 1800 812 712 Email: serviceuk@tempo.org...
  • Page 25: Basic Tv Operations

    Basic TV Operations Press POWER button on the unit or remote control to power ON the unit (indicator will glow blue); press it again to power OFF (standby mode) the unit (indicator will glow red). Press SOURCE button on the unit or remote control to switch the unit to ATV or DTV mode. SELECT DESIRED PROGRAMME 1.
  • Page 26 Basic TV Operations (Cont) VIDEO SIZE SETTING • Press ASPECT button on remote control repeatedly to select VIDEO SIZE directly. Available options: Auto, 4:3, 16:9, Zoom1, Zoom2. NOTE: If there’s no signal, pressing the ASPECT button will not work. The available video size may be different for different input sources.
  • Page 27 Basic TV Operations (Cont) FAVOURITE LIST When viewing an available channel, press FAV button on remote control to enter Favourite List menu page. • Press UP or DOWN navigation button to select your preferred channel. • Press OK button to confirm selection. QUICK SELECT When viewing an available channel, press OK button on remote control to enter Channel List menu page.
  • Page 28: Recording (Dtv Mode Only)

    Recording (DTV Mode only) RECORDER (FOR DTV MODE ONLY) • Insert your USB memory device into USB slot first. When watching a digital programme: • Press button on remote control and below tool bar will appear on the screen: • Press LEFT or RIGHT navigation button to select desired option.
  • Page 29: Media Playback

    Media Playback MEDIA PLAYBACK • Press SOURCE button on the unit or remote control to switch the unit to USB mode. • Insert a USB memory device into USB slot before following operations. • Press UP/DOWN/LEFT/RIGHT navigation button to move the cursor. •...
  • Page 30 Media Playback (Cont.) 3. PHOTO • Press LEFT/RIGHT navigation button to select Photo in the main menu and press OK button to enter it. • Use navigation buttons to select desired folder or file and press OK to start playback. •...
  • Page 31: Main Menu

    Main Menu During normal music playing: • The unit contains different setting menus. Once the initial programming is entered, it will be remained in the memory until changed, and the unit can always be operated under the same conditions. • This settings will be remained in the memory until the settings are changed even after setting the player to standby mode.
  • Page 32: Dtv Mode

    DTV Mode Press SOURCE button on the unit or remote control to select DTV input source. PICTURE 1.1 Picture Mode • Press LEFT/RIGHT navigation button to select an option. Available options: Standard, Mild, Personal, Dynamic. • Contrast / Brightness / Saturation / Sharpness: adjustable value: 0-100. •...
  • Page 33: Menus

    Menus 2. SOUND 2.1 Sound Mode • Press LEFT/RIGHT navigation button to select an option. • Available Standard, Movie, Music, Sport, Personal. • Treble / Bass: adjustable value: 0-100. • NOTE: When the value of Treble or Bass is changed, Sound Mode will turn to “Personal” automatically.
  • Page 34 Menus (Cont.) 2.7 AD Volume • Select desire volume level when “Audio Description” is turned on. 2.8 Speaker Delay • Adjust this item if TV picture display and sound doesn’t work simultaneously. 2.9 SPDIF Delay • Adjust this item if TV picture display and sound doesn’t work simultaneously. 3.
  • Page 35 Menus (Cont.) 3.3 Digital Manual Tuning • Press OK or RIGHT navigation button to enter it. • Use LEFT/RIGHT navigation button to select the channel. Then press OK button to start searching. 3.4 Channel Edit • Press OK or RIGHT navigation button to enter it. •...
  • Page 36 Menus (Cont.) 4. LOCK • Press OK or RIGHT navigation button to enter it. • Input the factory default password “0000” using number buttons on remote control. • Press UP/DOWN navigation button to select preferred item. • NOTE: If you forget the password, please use the universal password “4711”. 4.1 System/Hotel Lock •...
  • Page 37 Menus (Cont.) 4.6 Default Source • This item is used to select you default source when power on this TV next time. 4.7 Default Channel • If “Default Source” is selected digital or analogue TV, press LEFT/RIGHT button to select desired channel.
  • Page 38 Menus (Cont.) 5.3 On Time • Press OK or RIGHT navigation button to enter it. • Use navigation buttons to select an option or adjust the value. • On Time: available options: Off / Once / Every Day / Mon~Fri / Mon~Sat / Sat~Sun / Sun. •...
  • Page 39 Menus (Cont.) 6. NETWORK 6.1 IP Config Notice: Connect your local network using a LAN cable first. - Press OK or RIGHT navigation button to enter it. - Press UP/DOWN navigation button to highlight desired channel. Mode: select Auto to gain IP address automatically; select Manual to configure IP manually.
  • Page 40 Menus (Cont.) 7. SETTINGS 7.1 Language • This item is used to select desired on-screen display language. 7.2 Audio Languages • This item is used to select desired audio languages. 7.3 Subtitle Language • This item is used to select available subtitle languages. 7.4 Hearing Impaired •...
  • Page 41 Menus (Cont.) 7.9 Reset TV • This item is used to reset to factory default settings. 7.10 HDMI CEC • To use HDMI CEC function: • Make sure the HDMI device (Amplifier, etc.) is connected correctly. • Press SOURCE button on the unit or remote control to select HDMI input source. •...
  • Page 42: Faqs

    FAQs If you experience any problems with your TV, check the list below and take any necessary steps before calling for service. If none of the solutions help you solve the problem, turn the power off and contact the after sales support line for advice.
  • Page 43 FAQs (Cont.) Problems relating to the USB device Problem Solution My TV does not Please refer first to the instructions describing how recognise my USB to use USB devices with this unit. device or my external If the problem still occurs, your device may not be hard disk.
  • Page 44: Specifications

    Specifications Display Device 48” 4K Ultra HD TV Resolution 3840 × 2160 Display Colours 16.7M Contrast Ratio 3000:1 Aspect Ratio 16:9 Life Time 30,000 Hrs AVI, MPEG 1/2, MPEG-4, TS Movie: Multimedia Playback Music: WMA, AAC, AC3, MP3 Format under TV Mode Photo: JPEG, BMP, PNG Power Source AC 100~240V, 50/60Hz...
  • Page 45: Warranty

    Warranty This product is warranted to be free from defects in workmanship and parts for a period of 36 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired or replaced at our discretion, solely at our option with no charge for parts or labour.
  • Page 46: Warranty Card

    Detailed description of malfunction: UK & IRELAND, Tempo International Ltd, Pencoed Technology Park, Pencoed, Mid-Glamorgan, CF35 5HZ AFTER SALES SUPPORT 0800 328 6063 1800 812 712 serviceuk@tempo.org MODEL: B48-63UHDF / A-480F-S After Sales Support Telephone: 0800 328 6063 1800 812 712 Email: serviceuk@tempo.org...
