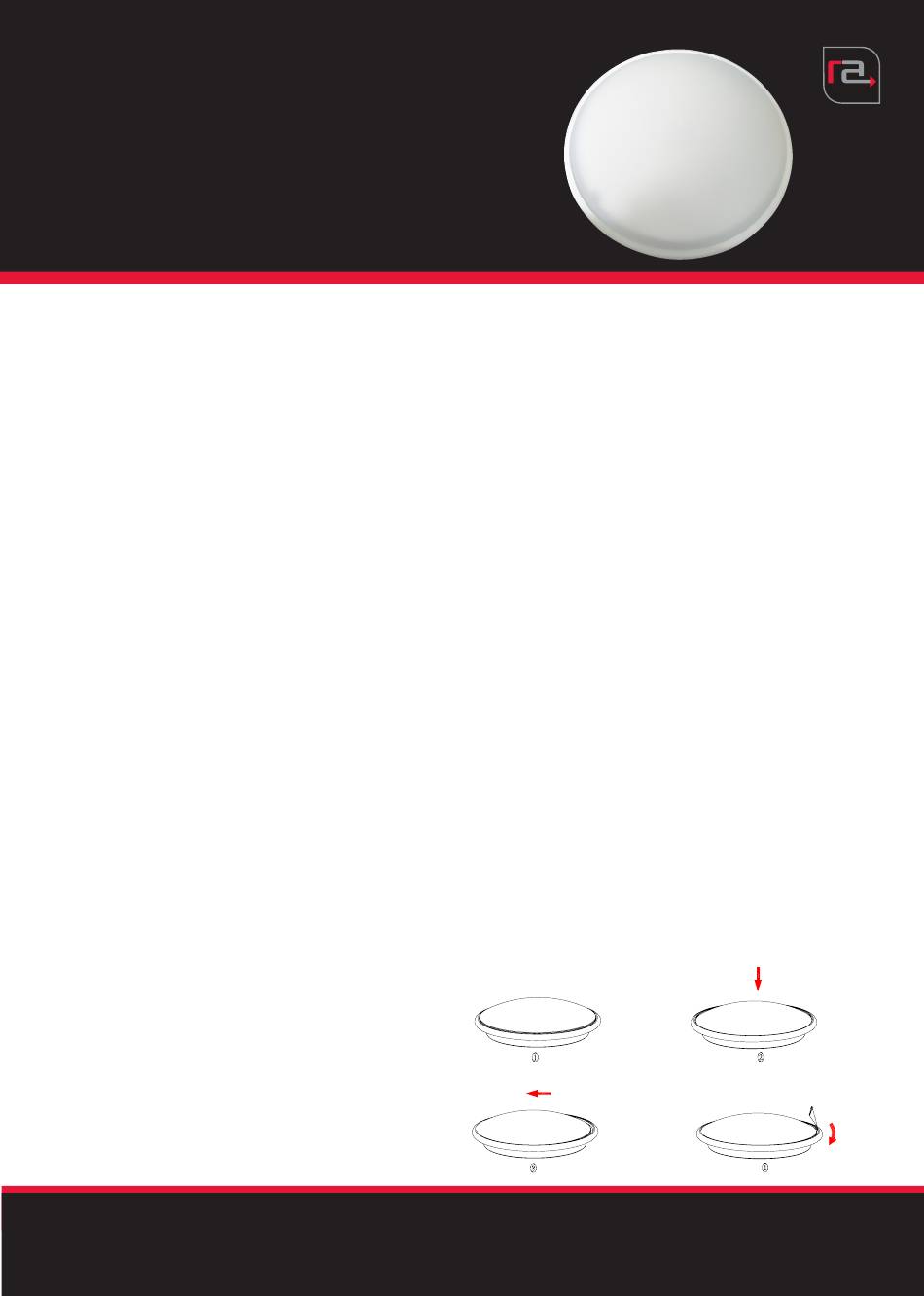

Red Arrow Trading WIL22LEDEMSCF Installation Instructions

22W LED Emergency Wilson
Bulkhead with Microwave
Sensor Corridor Function
Installation Instructions P .1.
For models: WIL22LEDEMSCF
This installation must be carried out by an electrician.
Please read these instructions carefully before installation.
Leave a copy for the user/maintenance engineer for future reference.
Specification
• Bulkhead LED fitting
• Class I (must be earthed)
• Lamp type: 264 SMD LEDs
• Colour Temperature: 4000K
• IP20 Rated.
• Supply voltage: 220-240v
• Polycarbonate Diffuser & powder coated Steel Base.
Important Installation Information
• Installation should be carried out in accordance with the
latest edition of the I.E.E. wiring regulations (BS7671) and
taking into consideration the latest Building Regulations. If
in doubt, consult a qualified electrician.
IMPORTANT: Ensure that ALL electrical connections
are tight with no loose strands, including factory made
connections.
• All luminaires run hot. It is the installer's responsibility to
consider fire risk and take appropriate precautions.
• Input voltage – 220-240v 50HzAC
• The luminaire must not, under any circumstances, be
covered with any insulation materials and luminaires must
not be installed close to flammable materials.
• Before commencing installation or maintenance, ensure
electricity is switched off at the mains.
Important User Information
• Always switch off mains supply before servicing.
Installation Instructions
• Select the required position for the luminaire and provide
a suitable power supply to this point, taking into account the
possible power entry points of the luminaire.
Red Arrow Trading
Elsworth House, Herries Road South,
Sheffield, S6 1QS
• Remove the Diffuser cover from the body.
• Feed the power cables into the enclosure.
• Fix the base to the wall or ceiling as required. Locate
joists, be aware of water pipes and electric cables when
applying the fixing screws.
• Connect the mains supply cables to the terminal blocks
supplied as follows:
• Permanent LIVE 1 - to terminal marked L1.
• Switched LIVE 2 - to terminal marked L2.
• NEUTRAL - (blue) to terminal marked N.
• EARTH - (green / yellow) to terminal marked
luminaires must be earthed.
• Please Note: For Emergency versions there will also be
an un-switched permanent LIVE which is connected to the
terminal marked Permanent Live.
• Ensure there are no exposed conductors, loose strands or
trapped insulation.
• Refit the diffuser cover.
• Switch on the power supply.
Microwave Sensor
The Microwave Sensor has 3 dials (lux level, time & sensitivity
range). Adjust the dials to suit your requirements and
maximise energy savings.
T: 0800 195 0006 F: 0870 043 3946
E: sales@redarrowtrading.com
N.B. These
